CTS Genuine Multipoint Gearbox - Lift Lever or Split Spindle

Product Information

Please note that new Maco gearboxes cannot be retrofitted to old locks.

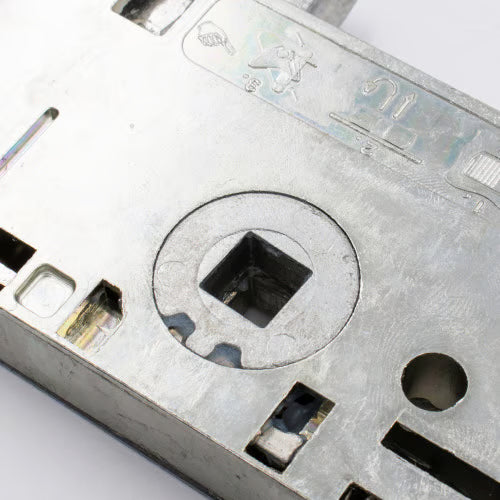

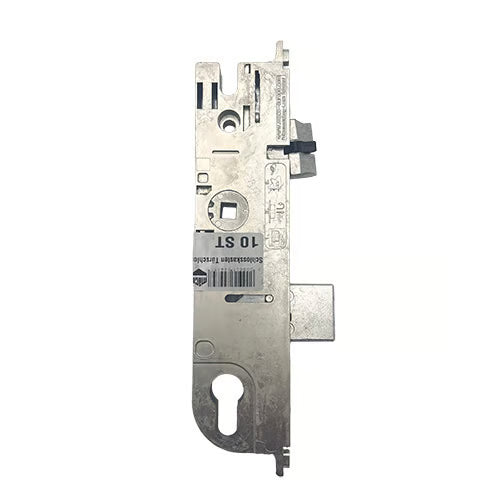

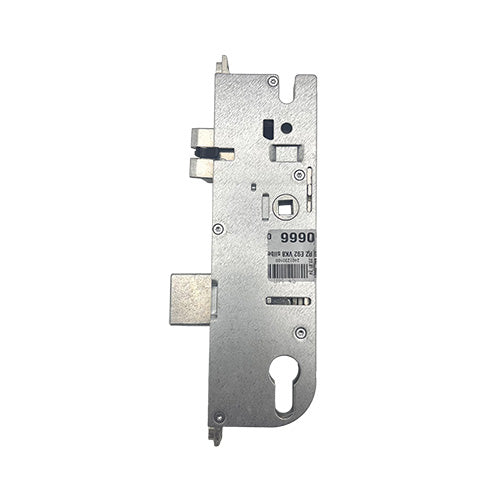

Maco Protect C-TS locks have a distinctive rounded shape to both the main gearbox and the hook boxes. The main gearbox corner, next to the euro cut out, is particularly rounded.

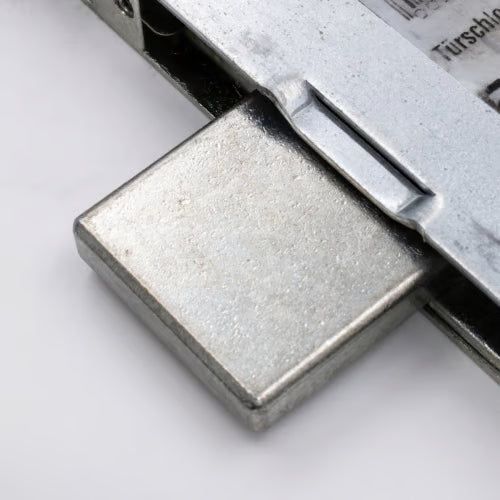

Measuring 202mm high, they are one of the smaller gearboxes on the market. They also feature a distinctive "soft" latch, which appears to be split in half. It's worth noting that Maco offers different variants of these latches, so this latch is not conclusive when identifying this lock.

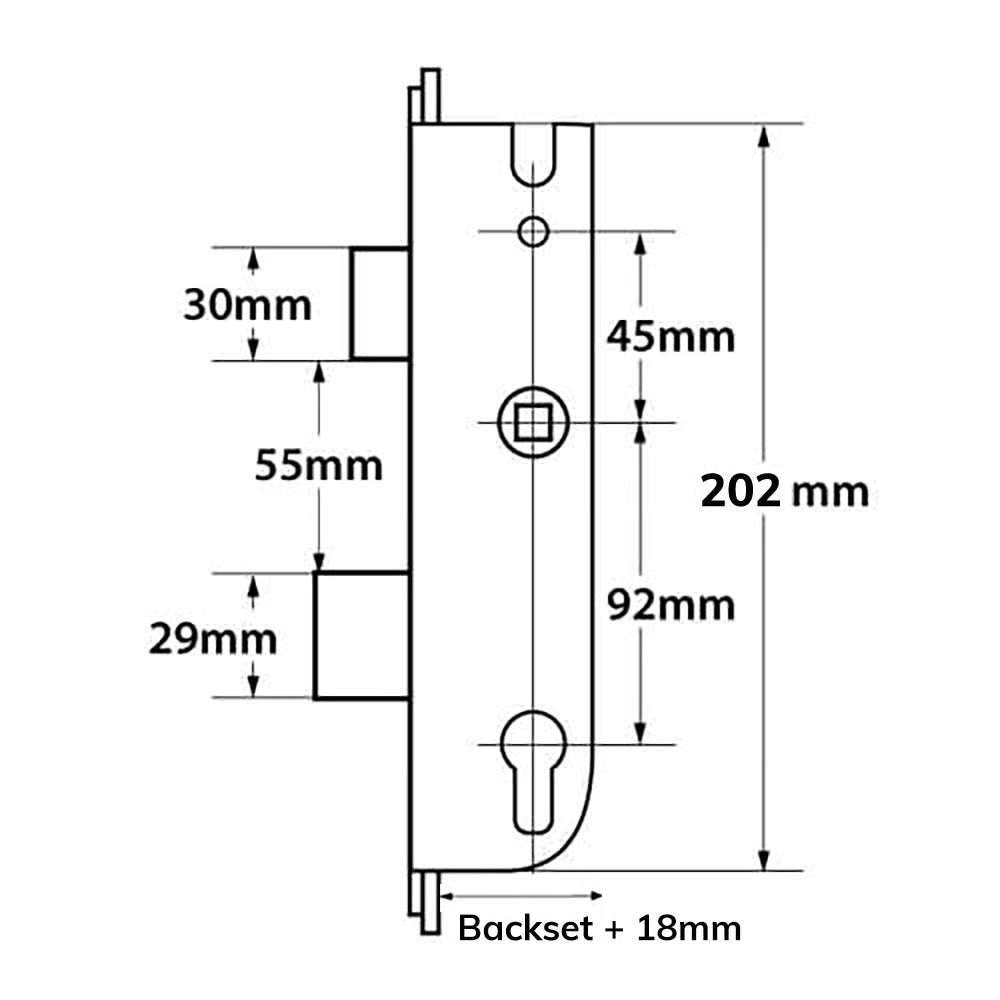

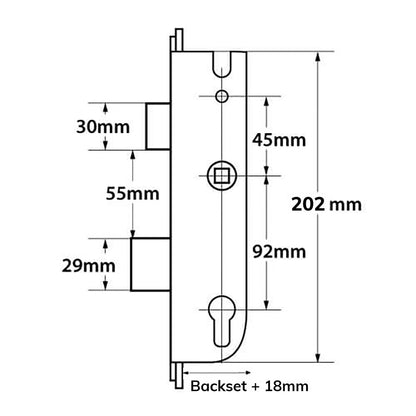

Both the latch and deadbolt on these locks measure 30mm high, with 55mm between them. They are held onto the faceplate with 3 screws. The top screw to the centre measures 102mm, and the centre screw to the bottom screw measures 110mm.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

If your lock looks like a C-TS but has the top corner of the gearbox missing, it's probably an A-TS version, which is automatic locking. We stock replacement locks for Maco A-TS locks.

We stock a range of associated products for Maco C-TS gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Note: When using the split spindle, the male spindle must be on the inside and the female spindle on the outside. Also, the screw holes are unthreaded, so the use of self-tapping screws is required.

Operation: Lift lever or split spindle

Latch reversal: Push up the serrated button on the side of the case, remove the latch, reverse, and reinsert.

To ensure optimal performance and security, please follow these operational guidelines for your Maco locks:

Locking Procedure

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

Unlocking Procedure

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

• Product Specification

• Manufacturer: Maco
• Backset: 35mm or 45mm - How do I measure the backset?
• Centres PZ: 92mm - How do I measure the centres?
• Case Height: 202mm
• Case Width: backset + 18mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
• Packaging: Supplied in singles

For any further assistance or inquiries regarding installation or compatibility, feel free to reach out to our support team. Your security is our priority!
