Crimebeater Latch Deadbolt 2 Hooks 20mm Radius Faceplate Split Spindle Multipoint Door Lock

Product Overview: Fullex Crimebeater Multipoint Door Lock

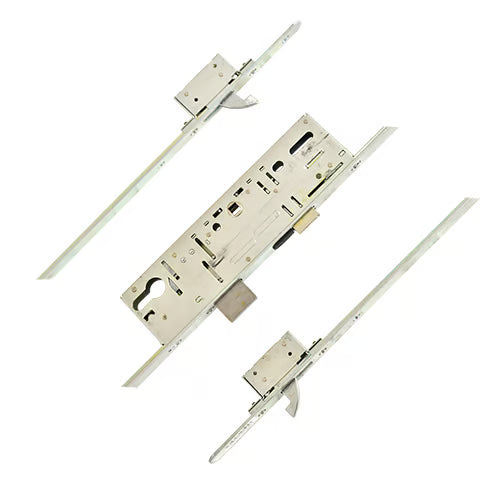

The Fullex Crimebeater multipoint door lock is designed for optimal security and reliability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch.

Key Features:

• Design & Compatibility:
  • Ideal for new fit timber or composite doors.
  • Available with a 20mm rounded faceplate, ensuring a sleek and modern appearance.
• Security & Reliability:
  • Engineered for long-term performance, the Fullex Crimebeater is a trusted choice, having been installed in hundreds of thousands of doors across the UK.
  • Options include 3 deadbolt and 2 hook and deadbolt variants, with choices of 20mm steel or 44mm wrap-around white aluminum powder-coated faceplates.
• Identification & Variants:
  • The locking points remain consistent across both deadbolt and hookbolt variants, simplifying identification.
  • Early models may lack the Fullex stamp on the faceplate; however, the gearbox can be identified by its unique cut corner and latch-deadbolt configuration.
• Gearbox Specifications:
  • Available in 35mm, 45mm, and 55mm backsets, designed for double spindle configurations.
  • Gearbox dimensions: 227mm high plus backset + 15mm, secured with three equidistant screws for stability.
• Durability & Performance:
  • Hooks and external deadbolts are crafted from chrome-plated A3 hardened cast steel, ensuring strength and resistance to wear.
  • Cycle tested for 200,000 operations, demonstrating exceptional durability.

Operation Instructions:

• To Lock:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to secure the locking points and main deadbolt (if applicable).
• To Unlock:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Corrosion Resistance:

• Rated to BS EN 1670 Grade 4 for 240 hours, ensuring longevity even in challenging environments.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed

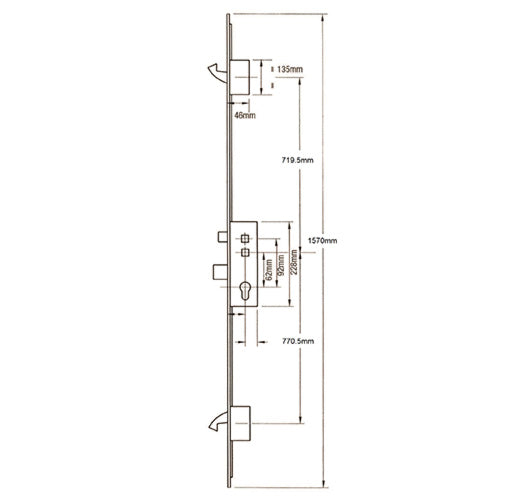

• Distance Between Inner Locking: 1490mm
• Height: 1570mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 771mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Fullex Crimebeater multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset measurement.

Centres PZ Measurement:

1. Measure from the center of the keyhole to the center of the handle hole.
2. This will give you the PZ measurement.

Faceplate Measurement:

1. Measure the width and length of the existing faceplate.
2. Ensure to account for any additional features or cutouts.

By following these steps, you can ensure that your door lock installation is seamless and secure.
