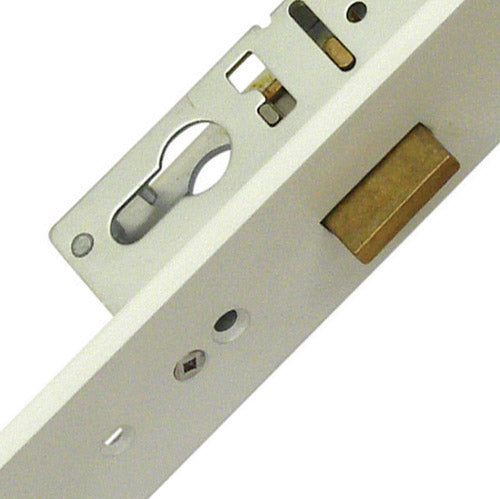

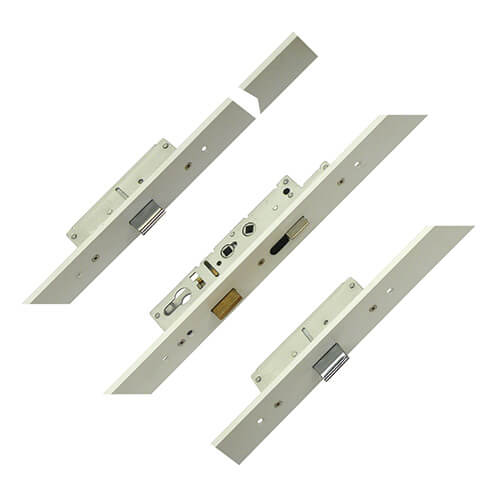

Crimebeater Latch 3 Deadbolts Flat 44mm White Faceplate Double Spindle Multipoint Door Lock

Product Overview: Fullex Crimebeater Multipoint Door Lock

The Fullex Crimebeater multipoint door lock is designed for maximum security and reliability, featuring 3 deadbolts and 1 latch. This lock has been widely adopted across the UK, ensuring peace of mind for homeowners and businesses alike.

Key Features:

• Variants Available: Choose from 3 deadbolt or 2 hook and deadbolt configurations.
• Durable Materials: Constructed with 20mm steel or 44mm wrap-around white aluminum powder-coated faceplates.
• Identification: Easily distinguishable from Fullex XL locks; early models may lack branding on the faceplate, but the gearbox design will help in identification.

Specifications:

• Locking Points: Consistent positioning for both deadbolt and hookbolt variants.
• Gearbox Options: Available in 35mm, 45mm, and 55mm backsets, designed for double spindle configurations.
• Dimensions: Gearboxes measure 227mm high plus backset + 15mm, with three equidistant screws for secure attachment.

Operation Instructions:

• Locking the Door:
  • Close the door to engage the latch automatically.
  • Lift the handle to engage the locking points.
  • Turn the key to secure the system.
• Unlocking the Door:
  • Turn the key to unlock the system.
  • Push the handle down to disengage the locking points.
  • A quarter turn of the key will retract the latch.

Corrosion Resistance:

• Rated to BS EN 1670 Grade 4 for 240 hours, ensuring durability against the elements.

Cycle Operation:

• Tested for 200,000 operations, providing long-lasting performance.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1400mm
• Height: 2100mm
• Top Deadbolt to Spindle: 686mm
• Bottom Deadbolt to Spindle: 714mm
• Door Material: Aluminium, Composite

Measuring Guidelines:

To ensure a perfect fit for your Fullex Crimebeater multipoint door lock, here are some helpful measuring tips:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle spindle.
  • This will give you the PZ measurement.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure to account for any overlaps or additional features on the door.

By following these guidelines, you can accurately select the right specifications for your door lock installation.
