Copy Multipoint Gearbox - Lift Lever or Double Spindle

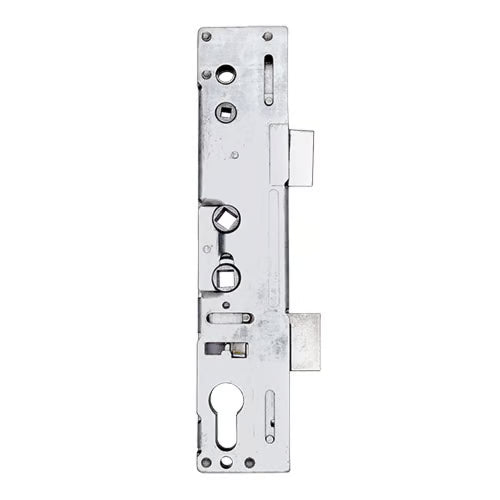

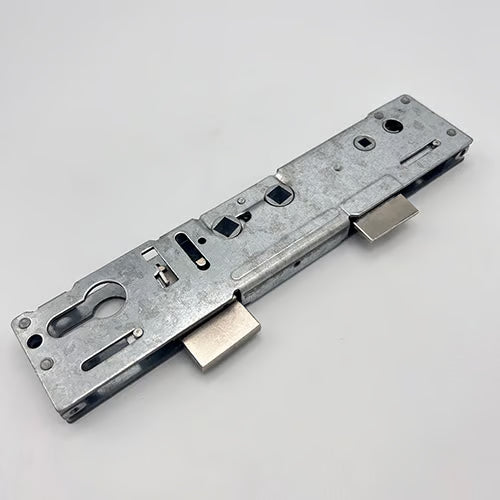

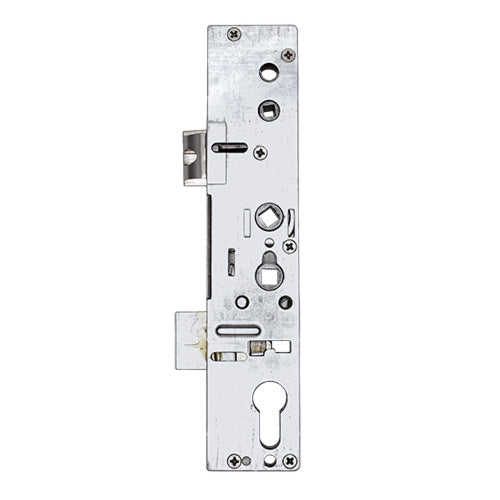

Product Overview: Lockmaster Gearboxes

Lockmaster gearboxes are designed for versatility and reliability, available in two backset sizes: 35mm and 45mm. For bifold doors, we offer specialized versions with 25mm and 28mm backsets.

Mechanism Types:

• Double Spindle Locks:

  • Available with 62mm and 92mm centres.
  • Unsprung design; we recommend using sprung door handles.
  • Functions: Can operate as a lift lever or double spindle night latch.

• Single Spindle Locks:

  • Sprung mechanism, limited to lift lever function only.

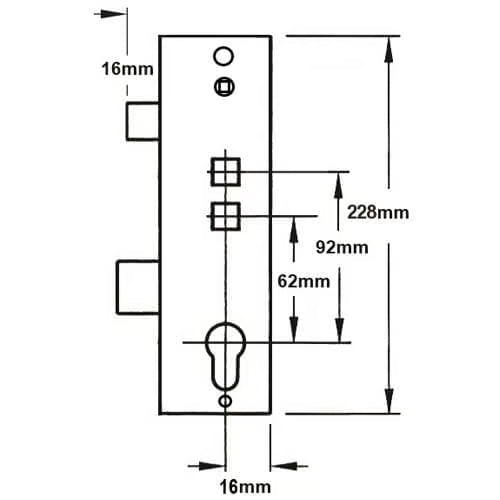

Dimensions:

• Overall size: 228mm high + backset (add 15mm).

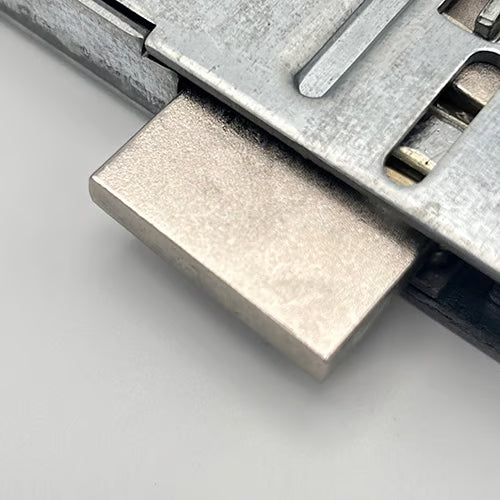

• Latch and deadbolt height: 30mm each.
• Distance between latch and deadbolt: 65mm.
• Faceplate screw holes:
  • Top to middle: 109mm
  • Middle to bottom: 109mm

Additional Features:

Earlier models included a small spindle hole at the top of the case, designed to hold the latch back.

45mm Version:

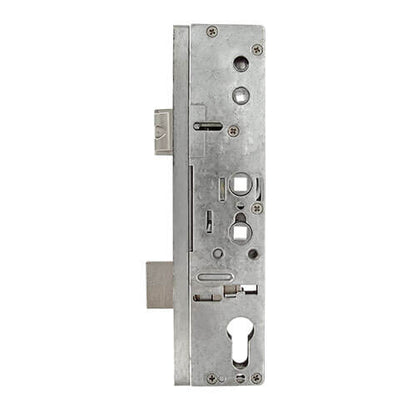

The 45mm Lockmaster gearbox mirrors the 35mm version but includes an extended latch and deadbolt, along with a cover plate for conversion.

Associated Products:

We also stock a variety of accessories for Lockmaster Standard gearboxes, including multipoint door locks, keeps, spindles, handles, and more.

Operation Instructions:

• Operation Modes: Lift Lever or Double Spindle
• Latch Reversal: To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw.

  Product Specification

  Manufacturer: Lockmaster

  Backset: 35mm or 45mm - How do I measure the backset?
  To measure the backset, you need to determine the distance from the edge of the door to the center of the keyhole or the handle. Use a tape measure for accuracy, ensuring that you measure straight across without any angles.

  Centres PZ: 92mm/62mm - How do I measure the centres?
  To measure the centres, find the distance between the center of the keyhole and the center of the handle. This measurement is crucial for ensuring that your locks align properly with the door hardware.

  Case Height: 228mm

  Case Width: Backset + 16mm

  Copy/Genuine: Copy

  Cylinder Type: Euro

  Handing: Not Handed

  Main Gearbox: Latch & deadbolt

  Spindle: Double 8mm

  Operation: Lift Lever or Double Spindle Nightlatch - What is the operation?
  The operation refers to how the lock functions. The Lift Lever allows you to lift the handle to engage the latch, while the Double Spindle Nightlatch can be operated by turning the key or using the handle to secure the door. This versatility provides enhanced security and ease of use.

  Packaging: Supplied in single
