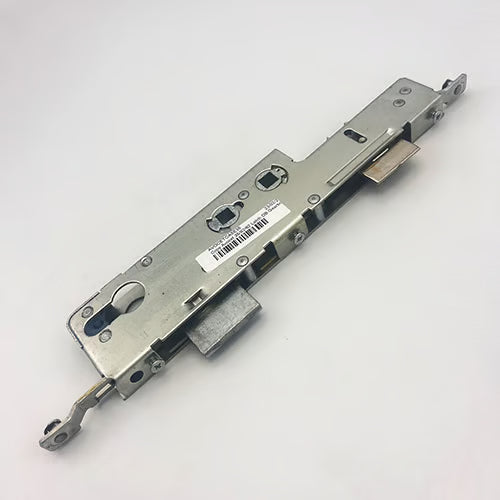

Copy Multipoint Gearbox - Lift Lever or Double Spindle

Product Information

Avocet gearboxes are unique. They measure 218mm high x backset + 15mm. It’s the large cut-out in the top corner, that extends to below the latch, that makes them stand out. This cut-out assists with the fitment of handles where the screws are above the lever.

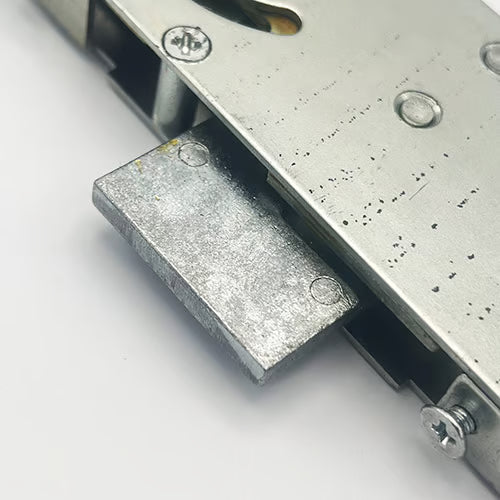

Avocet gearboxes feature a latch that is 29mm high, a deadbolt that is 34mm high, and 82mm between the top of the deadbolt and the bottom of the latch.

These gearboxes are not attached to the strip using conventional screws or rivets. Instead, the gearboxes are held on by arms that connect using circlips. While it is possible to remove a gearbox from a full Avocet lock, we'd advise replacing the full unit. It's worth noting that the design of the arms has changed over time, and old gearboxes have a flat clip. New versions have a slightly curved connecting arm, that is located lower down, making gearbox swaps with new for old impossible. Please note this will only replace the latest version of this case.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

We stock a range of associated products for Avocet gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Key Features of Avocet Gearboxes

• Unique Design: The distinctive cut-out enhances handle fitment.

• Dimensions: 218mm height, with backset + 15mm.

• Latch and Deadbolt Sizes: Latch at 29mm high, deadbolt at 34mm high, with an 82mm gap between them.

• Secure Attachment: Gearboxes are secured with arms and circlips, not screws or rivets.

• Replacement Advice: For optimal performance, replace the entire unit rather than just the gearbox.

• Backset Measurement: Remember to account for the faceplate when measuring backset.

• Product Range: We offer a variety of compatible products to enhance your Avocet system.

Product Instructions for Avocet Lock System

Locking the Door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

Unlocking the Door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Avocet
• Backset: Select from drop-down - How do I measure the backset?
• Centres PZ: 92mm/62mm - How do I measure the centres?
• Case Height: 218mm
• Case Width: 50mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt

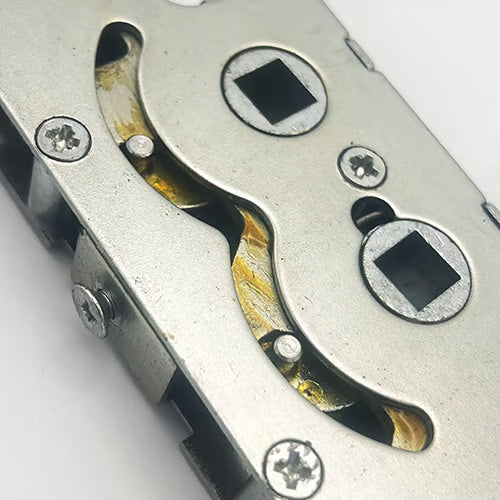

• Spindle: Double 8mm
• Operation: Lift Lever or Double Spindle Nightlatch - What is the operation?
• Packaging: Supplied in singles
