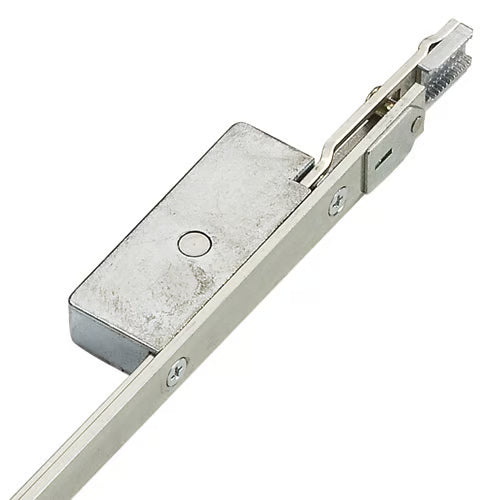

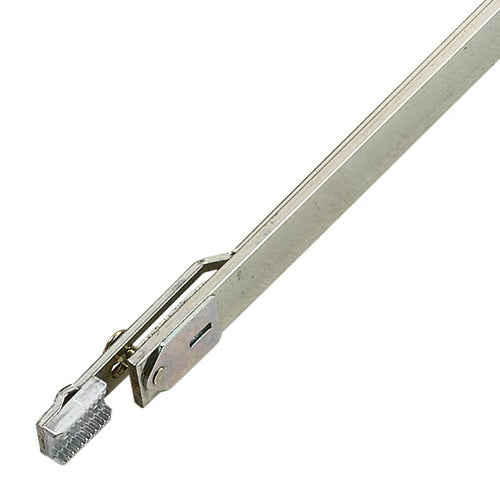

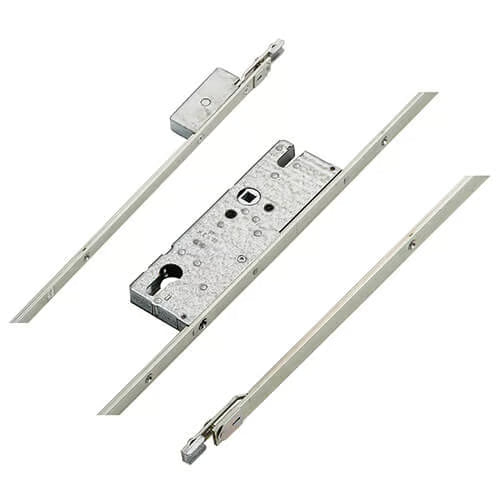

Cobra Passive Multipoint Door Lock - with Attachments for Shootbolts

Winkhaus Cobra Multipoint Door Lock Overview

The Winkhaus Cobra multipoint door lock is designed specifically for the passive door in a pair of French doors, ensuring both security and functionality. This lock features a central latch and deadbolt, complemented by either two or more "Cobra" hook locking points, providing robust protection.

Key Features:

• Locking Mechanism: The Cobra lock is characterized by its central latch and deadbolt, with options for 2 or 4 hooks as additional locking points. While it can be configured as a 4 roller lock, it does not typically combine hooks and rollers, a feature reserved for the Scorpion range.
• Locking Distance: Cobra locks commonly have a locking distance of 1490mm between external hooks, a configuration that has gained popularity among various manufacturers.
• Identification: To easily identify a Cobra lock, check the faceplate for the Winkhaus logo and the Secured by Design logo. The central deadbolt and non-handed hooks are distinctive features of this model.

Unique Locking Features:

• Entryguard Function: This feature acts like a door chain, providing enhanced security. It can be released from the outside by the key holder with a 45-degree turn of the key.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for double deadlocking of the door. This prevents unauthorized exit from the property, enhancing security.

Compatibility and Versatility:

All Winkhaus locks share the same routing details, making it easy to change locking operations or upgrade to automatic locking. New keeps and handles may be necessary for these modifications.

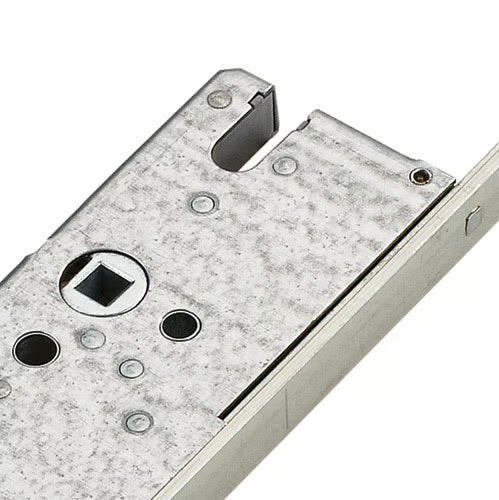

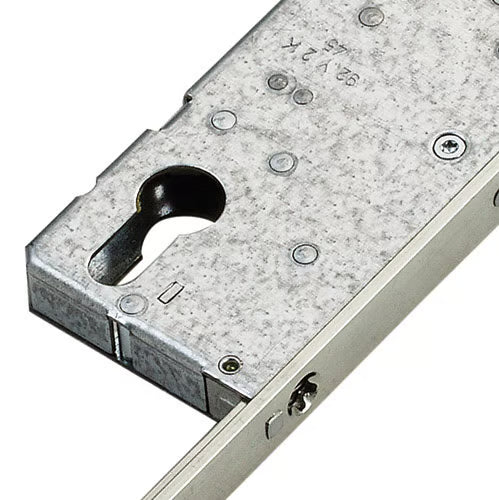

Gearbox Specifications:

Winkhaus gearboxes, except for the AV4, measure 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a groove above the spindle for easy handle fitment.

Operation Types:

• Lift Lever: Identified by a blue sticker, this operation requires lifting the handle to engage the locking points.
• Split Spindle: Marked with a green sticker, this can also function as a lever-operated lock with the right spindle configuration.
• Key Wind: Indicated by a red sticker, this operation involves using a key to lock and unlock.

Installation and Maintenance:

Winkhaus gearboxes are uniquely attached to the faceplate with rivets, allowing for easy replacement. For older models, screws may be used, but these are no longer available.

Operation Instructions:

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points and retract the latch.

Security Assurance:

Winkhaus Cobra locks are tested to withstand 100,000 cycles, ensuring durability and reliability for your security needs.

Product Specification

Manufacturer: Winkhaus

Spindle Size: 8mm

Main Gearbox: Passive lock

Spindle: Single 8mm

Handing: Non handed

Height: 1760mm

Door Material: UPVC, Aluminium
