Cobra Latch Deadbolt 4 Hooks Lift Lever and Split Spindle Multipoint Door Lock

Winkhaus Cobra Multipoint Door Lock

The Winkhaus Cobra multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration of 4 hooks, 1 deadbolt, and 1 latch. This original multipoint lock is known for its reliability and versatility, making it a popular choice among homeowners and builders alike.

Key Features:

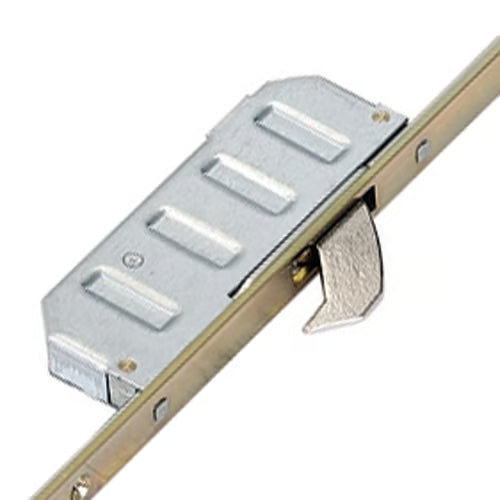

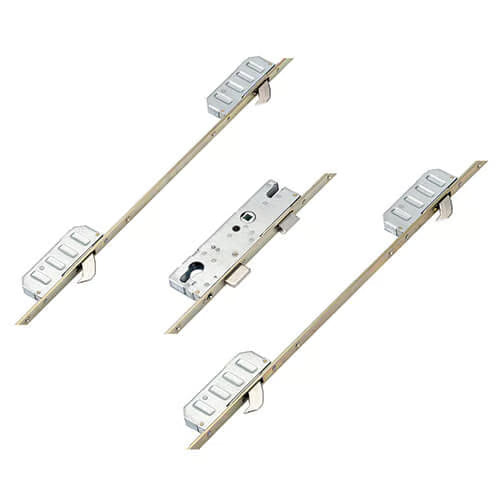

• Locking Mechanism: The Cobra lock includes a central latch and deadbolt, complemented by either 2 or 4 Cobra hook locking points. This design ensures maximum security while maintaining ease of operation.
• Operation Options: Available in lift lever operation, split spindle, or key wind, the Cobra lock adapts to various user preferences and door configurations.
• Locking Distances: With a standard locking distance of 1490mm between external hooks, the Cobra has become a market favorite, with many manufacturers adopting this specification.

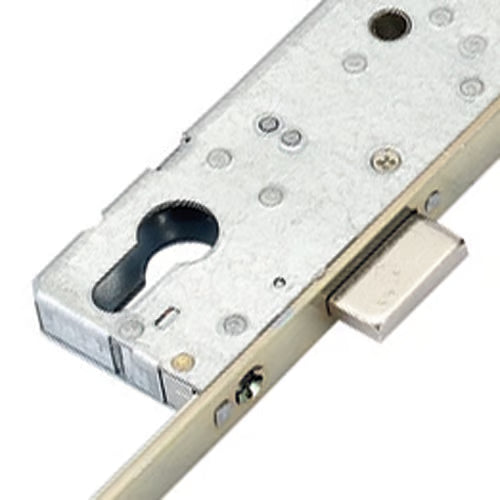

• Identification: To easily identify a Cobra lock, check for the Winkhaus logo and the Secured by Design logo on the faceplate. The central deadbolt and non-handed hooks are distinctive features of this model.

Additional Security Features:

• Entryguard Function: This innovative feature acts like a door chain, providing an extra layer of security. It can be released from the outside by turning the key an additional 45 degrees, allowing for controlled access.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, enabling double deadlocking of the door. This feature prevents unauthorized exit from the property, enhancing overall security.

Gearbox Specifications:

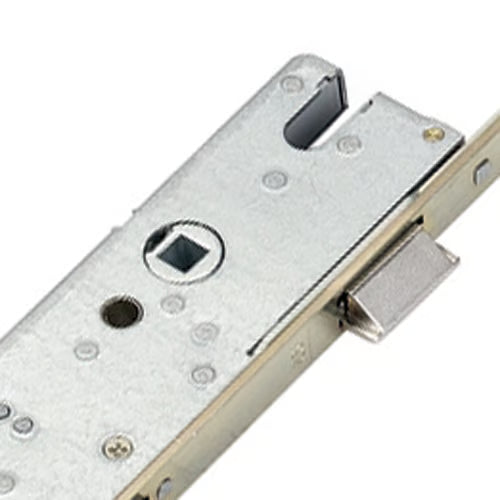

Winkhaus gearboxes, except for the AV4, measure 185mm high with a backset of +15mm, making them the smallest on the market. They feature a groove above the spindle for easy handle fitment and are identifiable by the color-coded stickers indicating the type of operation:

• Blue: Lift lever
• Green: Split spindle
• Red: Key wind

Installation and Maintenance:

Winkhaus gearboxes are uniquely attached to the faceplate with rivets, simplifying the replacement process. For detailed guidance on replacing a Winkhaus gearbox, refer to our instructional video.

Security Assurance:

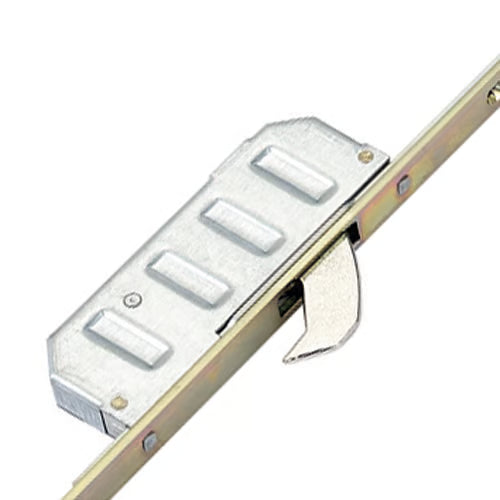

Winkhaus Cobra locks are equipped with 25mm throw solid steel hooks, designed to fully engage the keep rail and prevent forced entry. Tested to withstand 100,000 cycles, these locks are built for durability and reliability.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

With its combination of advanced features and robust construction, the Winkhaus Cobra multipoint door lock offers peace of mind and security for any property.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Distance Between Outer Locking: 780mm
• Height: 2100mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

Measuring Guidelines:

To ensure accurate measurements for your Winkhaus Cobra multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately.

Faceplate Measurement: To measure the faceplate, remove the existing lock (if applicable) and measure the width and height of the faceplate. This will help you select the correct faceplate from the drop-down options.

By following these measuring tips, you can ensure that your Winkhaus Cobra lock will fit perfectly and provide the security you need.
