Cobra Latch Deadbolt 2 Rollers 2 Mushrooms Split Spindle Multipoint Door Lock

Winkhaus Cobra Multipoint Door Lock Overview

The Winkhaus Cobra multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes:

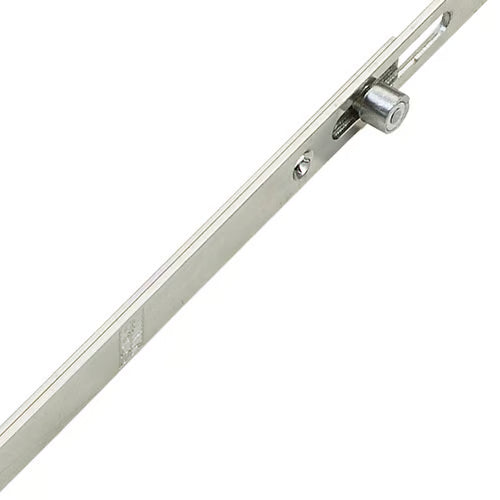

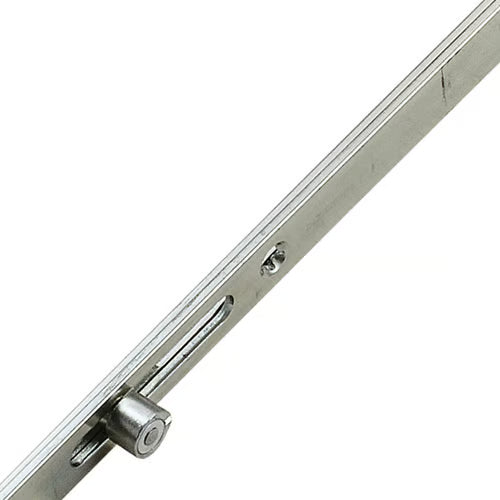

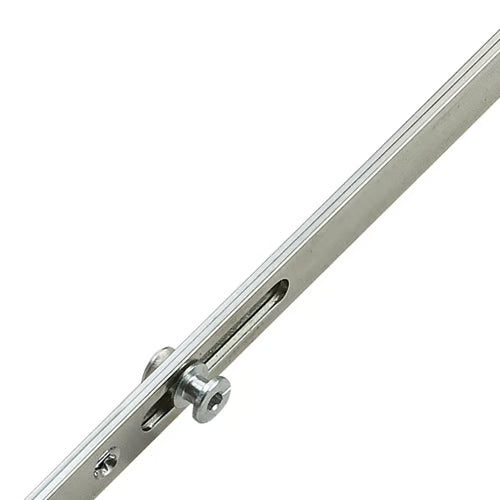

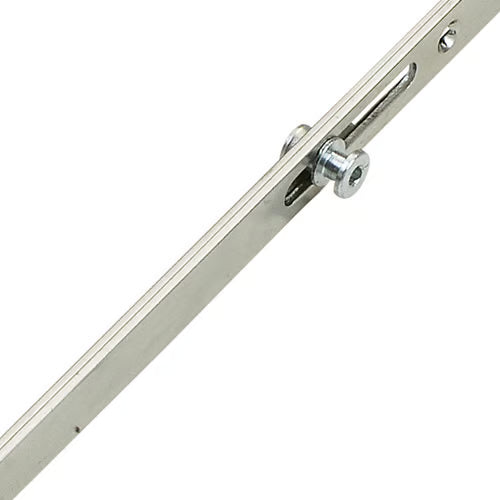

• Locking Mechanism: 2 Rollers, 2 Mushrooms, 1 Deadbolt, and 1 Latch.
• Backset: 35mm, ensuring compatibility with various door types.

Key Features

The Cobra lock is the original multipoint lock from Winkhaus, characterized by its central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points. It is available in different operational modes, including:

• Lift Lever Operation
• Split Spindle
• Key Wind

Locking Points and Configuration

Cobra locks typically feature:

• Central Latch and Deadbolt: Essential for secure locking.
• Additional Hooks: Available with either 2 or 4 hooks, enhancing security.
• Locking Distances: Commonly 1490mm between external hooks, a popular choice in the market.

Identification and Compatibility

To identify a Winkhaus Cobra lock, check for the Winkhaus logo and the Secured by Design logo on the faceplate. The Cobra version is distinguished by its central deadbolt and non-handed hooks.

Unique Locking Features

Winkhaus Cobra locks offer various locking features, including:

• Entryguard Function: A guard bar that operates like a door chain, providing added security.
• FA Lockout Cylinder: Incorporates two locking cylinders for enhanced deadlocking capabilities.

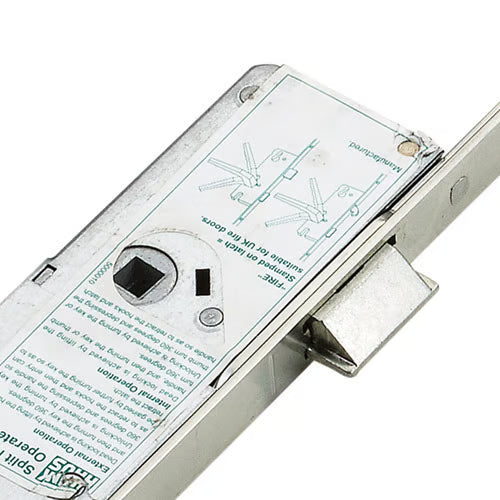

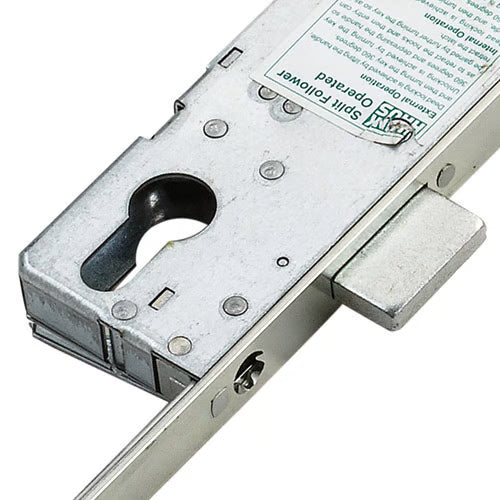

Gearbox Specifications

All Winkhaus locks share the same routing details, making upgrades straightforward. Key specifications include:

• Gearbox Dimensions: 185mm high x backset + 15mm.
• Locking Operation: Easily identifiable by the color-coded sticker on the gearbox (blue for lift lever, green for split spindle, red for key wind).

Installation and Replacement

Winkhaus gearboxes are uniquely attached to the faceplate with rivets, simplifying the replacement process. For older models, screws may be used, but these are no longer available.

Operation Instructions

To operate the split spindle lock:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To Unlock the Door:

1. Turn the key to unlock.
2. Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance

Winkhaus Cobra locks are tested to 100,000 cycles, ensuring durability and reliability for your security needs.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 700mm
• Distance Between Outer Locking: 1490mm
• Height: 2100mm
• Top Roller to Spindle: 750mm
• Bottom Roller to Spindle: 740mm
• Top Mushroom to Spindle: 360mm
• Bottom Mushroom to Spindle: 340mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Winkhaus Cobra multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for compatibility with your door frame.

Centres PZ Measurement: For the PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for optimal operation.

Faceplate Measurement: To measure the faceplate, determine its width and length. This will help you select the correct faceplate option from the drop-down menu.

Operation Type: Select the operation type based on how you intend to use the lock. Options may include lift lever, split spindle, or key wind, each offering different functionalities.

By following these measurement guidelines, you can ensure that your Winkhaus Cobra lock is installed correctly and functions effectively, providing the security and reliability you need.
