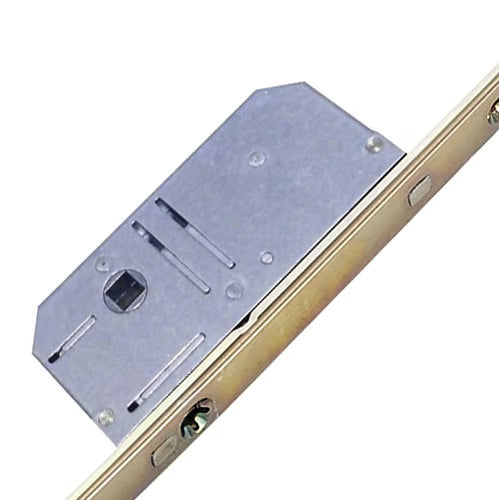

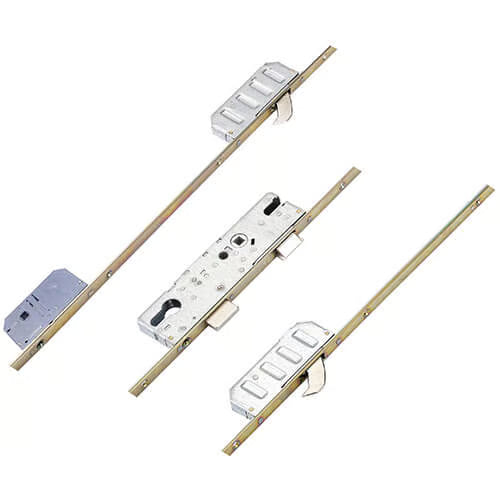

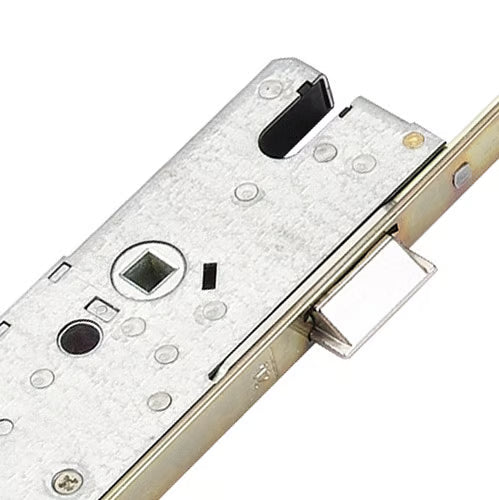

Cobra Latch Deadbolt 2 Hooks Split Spindle Multipoint Door Lock - with Entryguard Facility

Winkhaus Cobra Multipoint Door Lock Overview

The Winkhaus Cobra multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch with an innovative Entryguard facility.

Key Features:

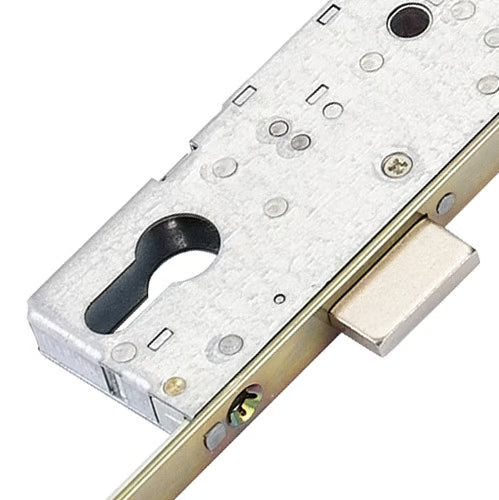

• Multipoint Locking System: The Cobra lock is the original Winkhaus design, incorporating a central latch and deadbolt along with multiple "Cobra" hook locking points, ensuring maximum security.
• Versatile Operation: Available in lift lever operation, split spindle, or key wind, the Cobra lock adapts to various user preferences.
• Locking Points: Typically featuring 2 or 4 hooks, Cobra locks provide a strong defense against forced entry. The locking distance of 1490mm between external hooks is a popular choice among manufacturers.
• Identification: Easily identifiable by the Winkhaus logo and a Secured by Design logo on the faceplate, the Cobra version is distinguished by its central deadbolt and non-handed hooks.

Enhanced Security Features:

• Entryguard Function: This feature acts like a door chain, providing additional security that can be released from the outside by turning the key an extra 45 degrees.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for double deadlocking of the door, preventing unauthorized exit from the inside.

Compatibility and Installation:

• Routing Details: All Winkhaus locks share the same routing details, making it simple to change locking operations or upgrade to automatic locking with minimal adjustments.
• Gearbox Specifications: Most Winkhaus gearboxes measure 185mm high with a backset of +15mm, making them compact and easy to install. They feature a groove above the spindle for handle fitment.
• Operation Identification: The operation type can be identified by the color of the sticker on the gearbox: blue for lift lever, green for split spindle, and red for key wind.

Durability and Performance:

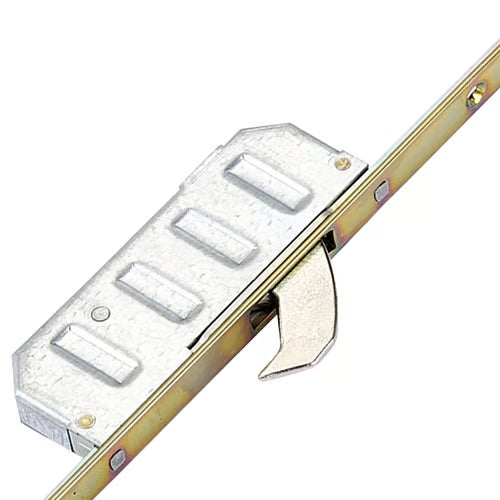

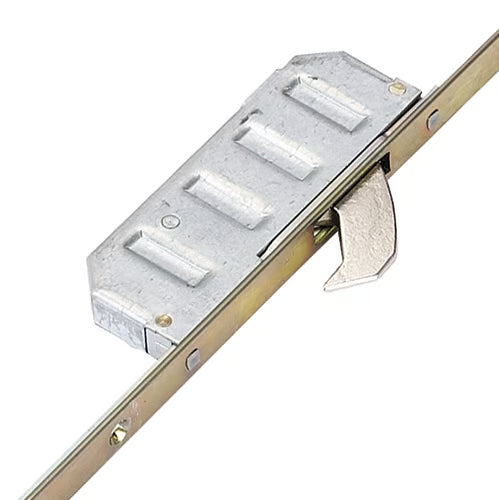

• High Security Hooks: The Cobra locks feature 25mm throw solid steel hooks that are nickel plated, designed to fully engage the keep rail and resist forced entry.
• Operation Instructions:
  • To Lock the Door:
    • Lift the handle upwards to engage the locking points.
    • Turn the key to secure the locking points and main deadbolt.
  • To Unlock the Door:
    • Turn the key to unlock the system.
    • Push the handle downwards to disengage the locking points and retract the latch.

Certification: Winkhaus Cobra locks are tested to 100,000 cycles, ensuring reliability and longevity in everyday use.

For further assistance or to explore our keying alike service, feel free to reach out!

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Other Locking Points: Entryguard
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2100mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

For any additional questions or clarifications regarding measurements and specifications, please don't hesitate to reach out!
