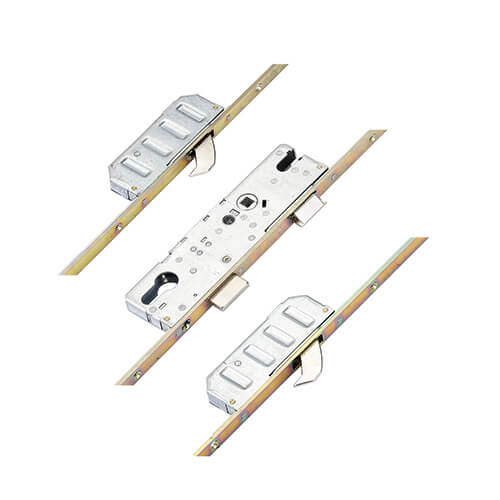

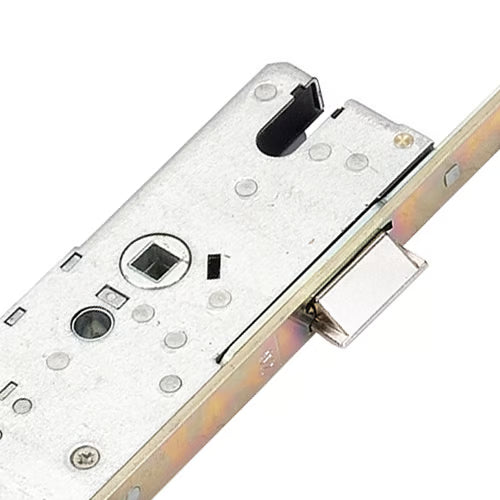

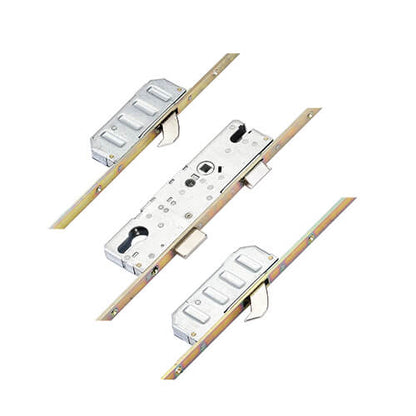

Cobra Latch Deadbolt 2 Hooks Lift Lever Split Spindle Multipoint Door Lock Short Version 1340mm

Winkhaus Cobra Multipoint Door Lock Overview

The Winkhaus Cobra multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration that includes 2 hooks, 1 deadbolt, and 1 latch. This lock is the original multipoint lock from Winkhaus, known for its reliability and innovative design.

Key Features:

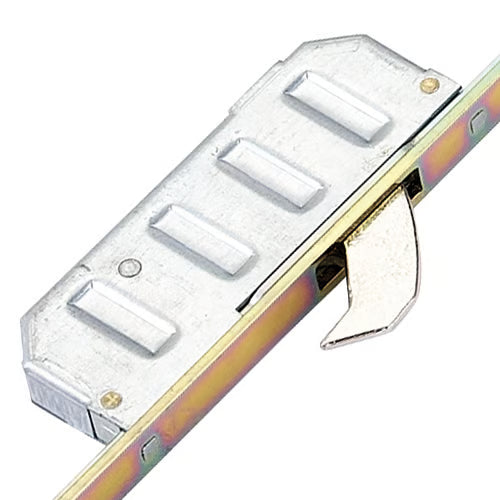

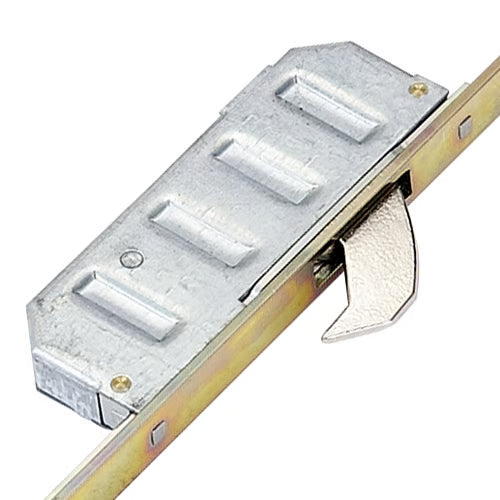

• Locking Mechanism: The Cobra lock incorporates a central latch and deadbolt, complemented by either 2 or 4 "Cobra" hook locking points. This ensures a secure fit and resistance against forced entry.
• Operation Options: Available in lift lever operation, split spindle, or key wind, the Cobra lock offers versatility to suit various door types and user preferences.
• Locking Distance: With a standard locking distance of 1490mm between external hooks, the Cobra lock has become a popular choice among manufacturers, ensuring compatibility with a wide range of doors.
• Identification: Easily identifiable by the Winkhaus logo and a Secured by Design logo on the faceplate, the Cobra version is distinguished by its central deadbolt and non-handed hooks.

Additional Security Features:

• Entryguard Function: This feature acts like a door chain, providing an extra layer of security. It can be released from the outside by the key holder with a simple 45-degree turn of the key.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for enhanced security when the dwelling is unoccupied. It prevents unauthorized exit from the property, ensuring peace of mind.

Compatibility and Upgrades:

All Winkhaus locks share the same routing details, making it easy to change locking operations or upgrade to automatic locking systems. New keeps and handles may be required for such modifications.

Gearbox Specifications:

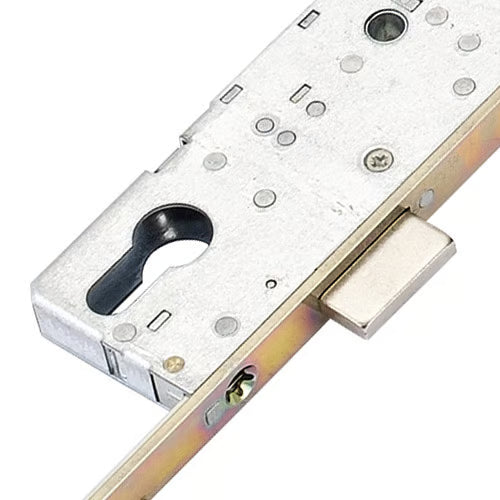

Winkhaus gearboxes, except for the AV4 model, measure 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a groove above the spindle for easy handle fitment.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance:

Winkhaus Cobra locks are rigorously tested to withstand 100,000 cycles, ensuring durability and reliability for everyday use. With solid steel Cobra hooks that fully engage the keep rail, these locks provide exceptional resistance against forced entry.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1340mm
• Height: 2110mm
• Top Hook to Spindle: 590mm
• Bottom Hook to Spindle: 750mm

For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly within the door frame.

Measuring the Centres (PZ):
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately, as it ensures that the lock and handle align correctly.

Measuring the Faceplate:
To measure the faceplate, you need to measure the width and height of the area where the lock will be installed. This ensures that the faceplate fits snugly against the door surface without any gaps.

Operation Options:
The operation of the lock can vary based on user preference. Options may include lift lever, key wind, or split spindle. Choose the one that best suits your door type and usage needs.
