Cobra Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock - with Attachments for Shootbolts

Winkhaus Cobra Multipoint Door Lock Overview

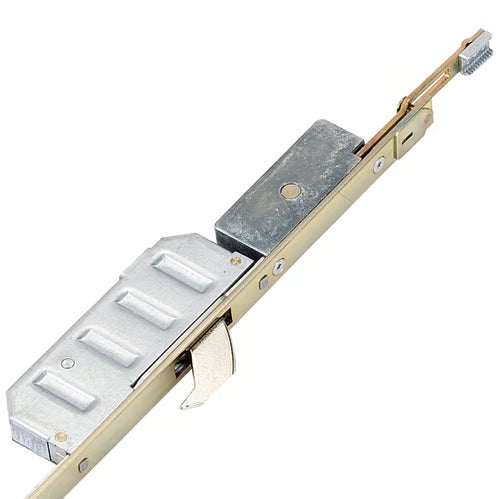

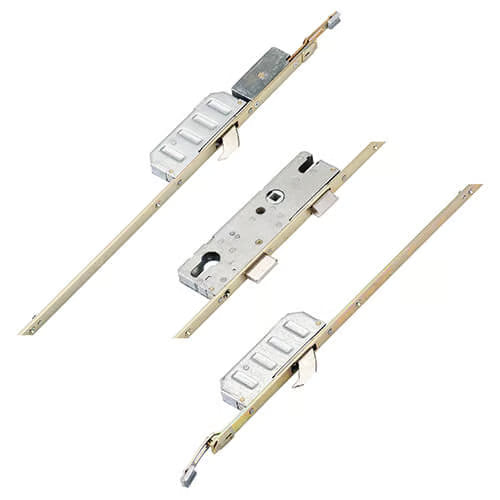

The Winkhaus Cobra multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration that includes 2 hooks, 1 deadbolt, and 1 latch. This lock is the original multipoint lock from Winkhaus, known for its reliability and innovative design.

Key Features:

• Locking Mechanism: The Cobra lock includes a central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points. This design ensures a secure closure, making it a popular choice among homeowners and builders alike.
• Versatile Operation: Available in various operational modes, including lift lever, split spindle, or key wind, the Cobra lock adapts to different user preferences and door configurations.

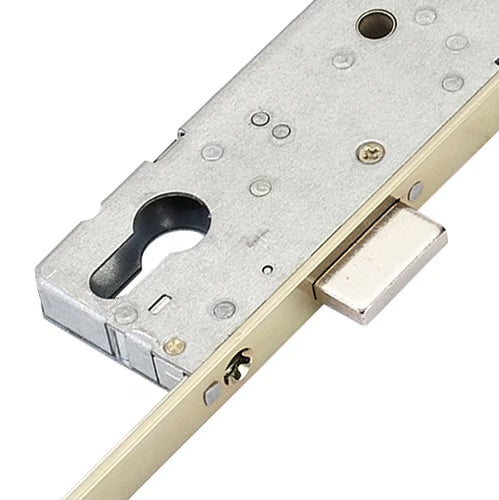

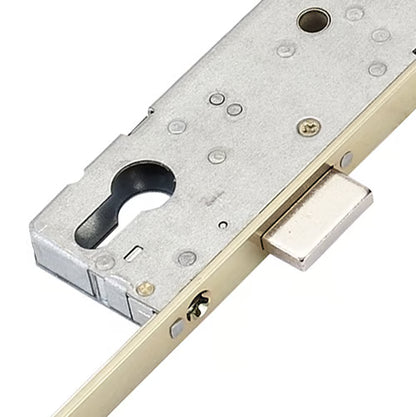

• Identifying Your Lock: To easily identify a Winkhaus Cobra lock, check for the Winkhaus logo on the faceplate, along with a Secured by Design logo. The central deadbolt and non-handed hooks are distinctive features of the Cobra model.

Enhanced Security Features:

• Entryguard Function: This feature acts like a door chain, providing additional security. It can be released from the outside by turning the key an extra 45 degrees, allowing for controlled access.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, enabling double deadlocking of the door. This prevents unauthorized exit from the property, enhancing overall security.

Compatibility and Installation:

Winkhaus locks share the same routing details, making it easy to change locking operations or upgrade to automatic locking systems. While new keeps and handles may be required, the process is straightforward.

Gearbox Specifications:

• All Winkhaus gearboxes (except the AV4) measure 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a groove above the spindle for easy handle fitment.
• The locks are identifiable by the color-coded stickers on the gearbox: blue for lift lever, green for split spindle, and red for key wind. The split spindle version offers versatility, allowing it to function as a lever-operated lock.

Durability and Testing:

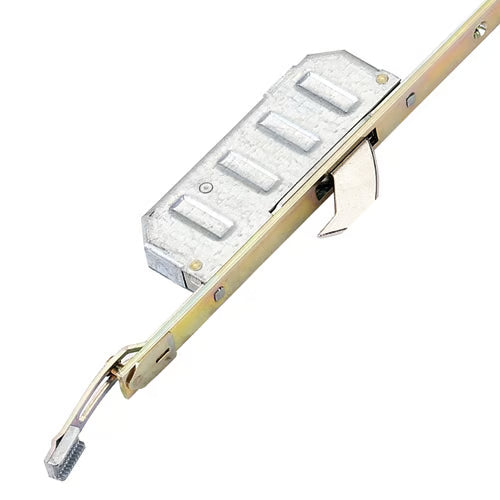

Winkhaus Cobra locks are built to last, with solid steel Cobra hooks that throw downwards for maximum security. They have been tested to withstand 100,000 cycles, ensuring long-term reliability.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1

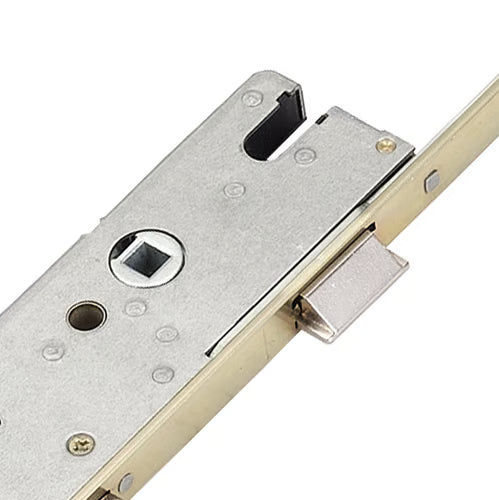

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Lockout Backset: 35mm
• Distance Between Inner Locking: 1490mm
• Height: 1760mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

For accurate measurements, follow these guidelines:

• Backset Measurement: Measure from the edge of the door to the center of the lock cylinder.
• Centres PZ Measurement: Measure from the center of the keyhole to the center of the handle hole.
• Faceplate Measurement: Measure the width and length of the faceplate on the door.
• Operation Selection: Choose the operation type based on your door's configuration and user preference.

These specifications ensure that the Winkhaus Cobra lock fits perfectly and operates efficiently in your door setup.
