Cobra Latch Deadbolt 2 Hooks 20mm Flat Faceplate Key Wind Operated Multipoint Door Lock

Product Overview: Winkhaus Cobra Multipoint Door Lock

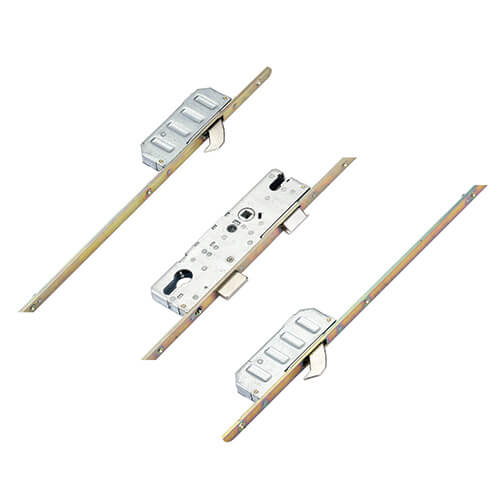

The Winkhaus Cobra multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is the original multipoint lock from Winkhaus, known for its reliability and innovative design.

Key Features:

• Locking Mechanism: The Cobra lock includes a central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points. It is available in various operational styles, including lift lever, split spindle, and key wind.

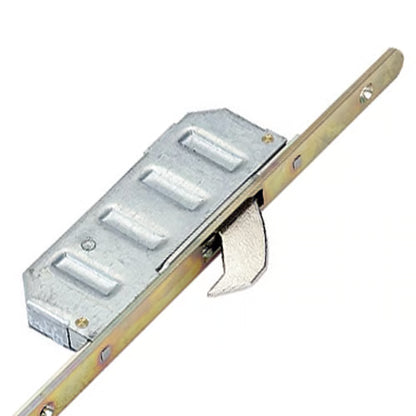

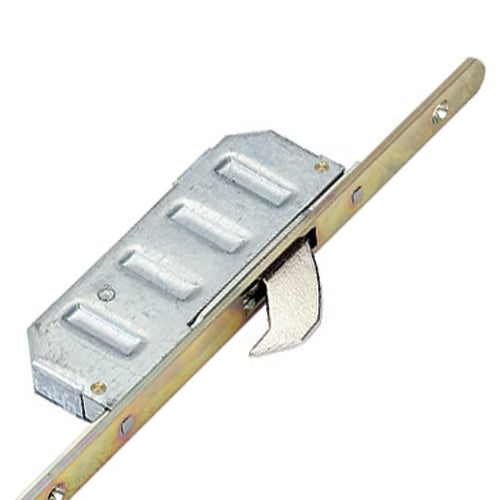

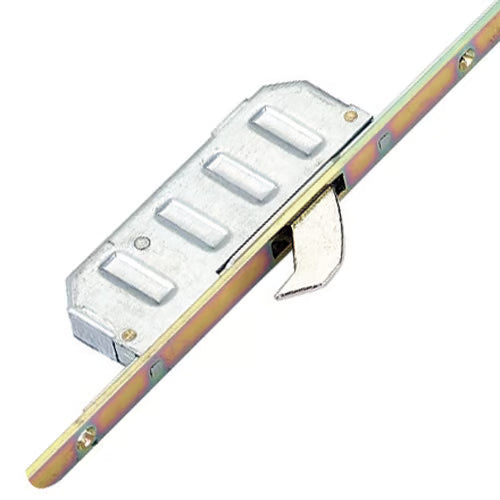

• Versatile Locking Points: Cobra locks typically feature 2 or 4 hooks, providing additional security. While a 4 roller lock option exists, the combination of hook and roller is exclusive to the Scorpion range.
• Standardized Dimensions: The locking distance between external hooks is commonly 1490mm, a configuration widely adopted across the market.

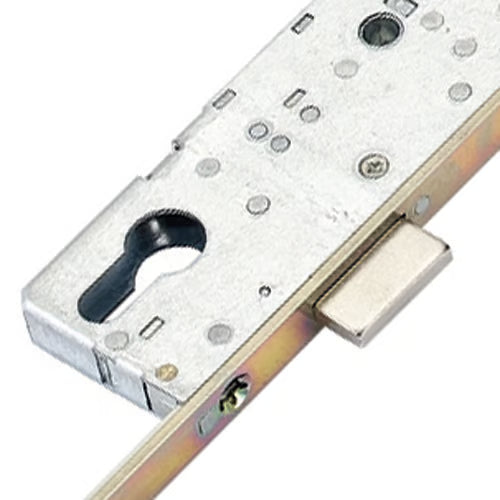

• Identification: To identify a Winkhaus Cobra lock, check for the Winkhaus logo and the Secured by Design logo on the faceplate. The central deadbolt and non-handed hooks are key indicators of the Cobra model.

Additional Security Features:

• Entryguard Function: This feature acts like a door chain, providing an extra layer of security. It can be released from the outside by turning the key an additional 45 degrees.
• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for enhanced security when the property is unoccupied. Both cylinders can be locked with the same key, preventing unauthorized exit.

Compatibility and Upgrades:

All Winkhaus locks share the same routing details, making it easy to change locking operations or upgrade to automatic locking. Note that new keeps and handles may be necessary for such modifications.

Gearbox Specifications:

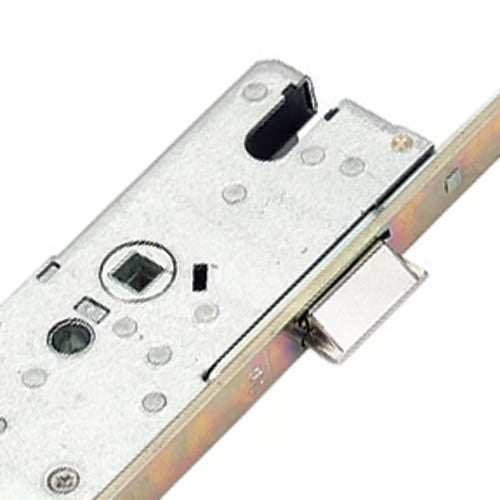

Winkhaus gearboxes, except for the AV4, measure 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a groove above the spindle for easy handle fitment.

Operation Instructions:

• To Lock the Door:
  • Close the door to automatically engage the latch.
  • Turn the key to throw and engage the locking points.
• To Unlock the Door:
  • Turn the key to unwind the locking points.
  • A further quarter turn retracts the latch.

Security Assurance:

Winkhaus Cobra locks are rigorously tested to withstand 100,000 cycles, ensuring durability and reliability for your security needs.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 1770mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

For precise measurements, follow these guidelines:

How to Measure the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

How to Measure the Centres (PZ):
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to get an accurate reading, ensuring both holes are aligned correctly.

How to Measure the Faceplate:
To measure the faceplate, remove the lock from the door and measure the length and width of the faceplate. This will help you select the correct size from the drop-down options.

These specifications ensure that your Winkhaus Cobra lock is installed correctly and functions optimally for your security needs. If you have any further questions or need assistance, feel free to reach out!
