Cobra Latch Deadbolt 2 Hooks 2 Roller Cam Split Spindle Multipoint Door Lock

Winkhaus Cobra Multipoint Door Lock Overview

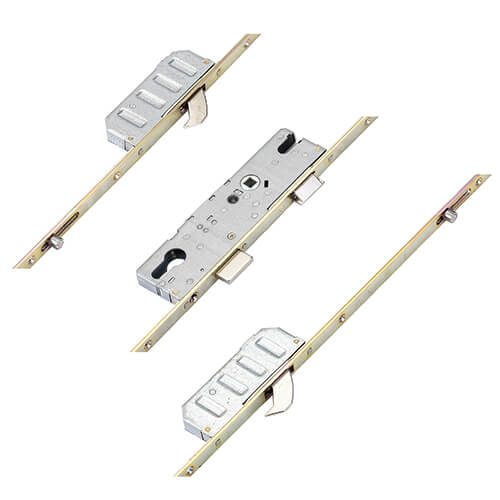

The Winkhaus Cobra multipoint door lock is designed for security and versatility, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for various door types, including PVCu, Aluminium, Composite, and Timber.

Key Features:

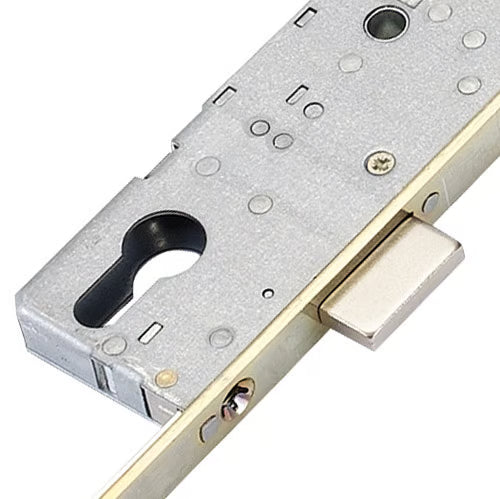

• Locking Mechanism: The Cobra lock features a central deadbolt with a distance of 1490mm between hooks and 1081mm between roller cams, ensuring a secure fit.
• Faceplate Options: Available with a flat 16mm faceplate, with a 20mm version available upon special request.
• Interchangeability: The Cobra locking systems are interchangeable, allowing for easy upgrades based on user needs.
• Operation Types: Available in lift lever, split spindle, or key wind operation, making it adaptable for different user preferences.

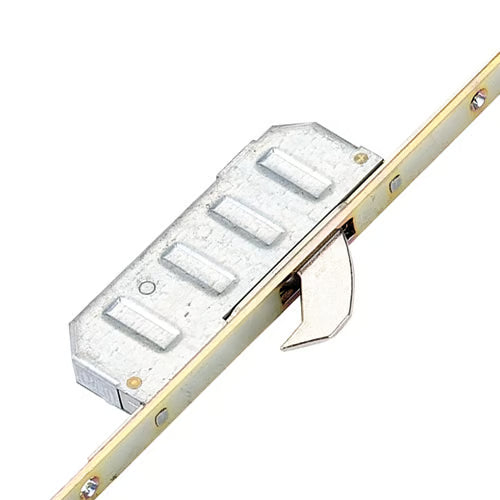

• Security Features: The Cobra locks include high-security solid forged steel hooks that engage fully with the keep rail, preventing forced entry. The locks are also equipped with an Entryguard function for added security.

Identification and Compatibility:

To identify a Winkhaus Cobra lock, look for the Winkhaus logo and the Secured by Design logo on the faceplate. The central deadbolt and non-handed hooks are key indicators of the Cobra model.

Gearbox Specifications:

Winkhaus gearboxes are compact, measuring 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a unique routing detail, allowing for straightforward upgrades to automatic locking systems.

Operation Instructions:

• To Lock:
  • Lift the handle to engage the locking points.
  • Turn the key to secure the deadbolt and locking points.
• To Unlock:
  • Turn the key to unlock.
  • Push the handle down to disengage the locking points.

Conclusion:

The Winkhaus Cobra multipoint door lock is a reliable choice for enhancing door security, offering a blend of durability, flexibility, and ease of use. With its robust design and various operational modes, it meets the demands of modern security needs.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm

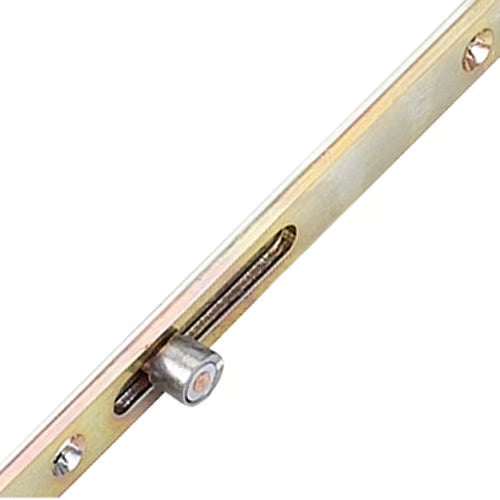

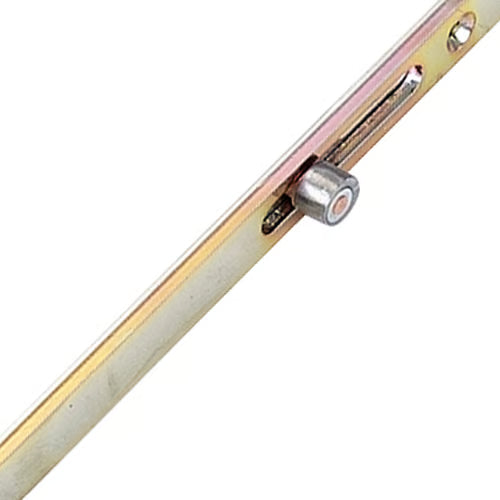

• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1

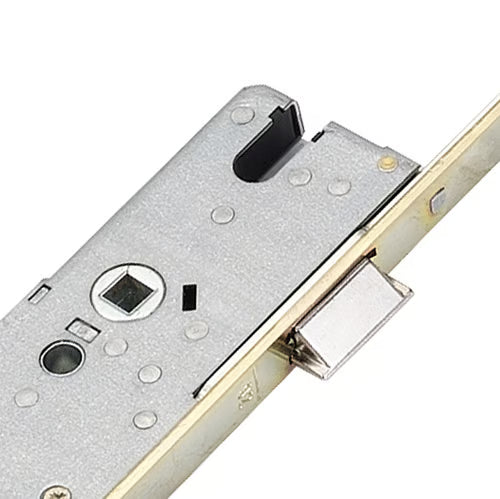

• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Distance Between Outer Locking: 1081mm
• Height: 2100mm
• Top Hook to Spindle: 738mm
• Bottom Hook to Spindle: 752mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Winkhaus Cobra multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for ensuring the lock fits properly.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, check the width and height of the existing faceplate on your door. This will help you select the correct option from the drop-down menu.

Operation Type:
Choose the operation type based on your preference for how the lock engages. Options may include lift lever, split spindle, or key wind.

By following these measurement guidelines, you can ensure that your Winkhaus Cobra lock is installed correctly and functions optimally.
