Cobra Latch DB 3 Hooks Split Spindle Entry Guard F16 Multipoint Door Lock

Winkhaus Cobra Multipoint Door Lock Overview

The Winkhaus Cobra multipoint door lock is engineered for security and reliability, featuring a robust design that includes 3 hooks, 1 deadbolt, and 1 latch with an innovative Entryguard facility. This lock is a trusted choice for homeowners seeking enhanced protection.

Key Features:

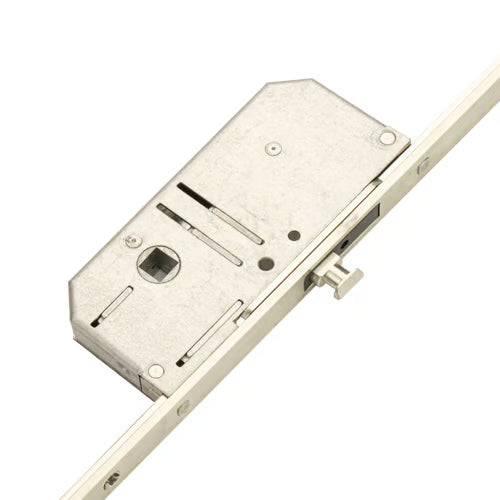

• Entryguard Facility: This integral guard bar offers a more secure alternative to traditional door chains, allowing the cylinder to engage and disengage the guard bar with a simple turn.

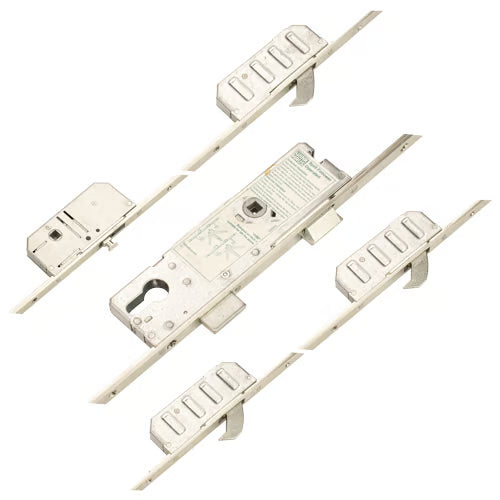

• Multipoint Locking: The Cobra lock is distinguished by its central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points. Available in various operations, including lift lever, split spindle, and key wind, it caters to diverse user preferences.
• Versatile Locking Distances: Cobra locks typically feature a popular locking distance of 1490mm between external hooks, a configuration widely adopted across the market.
• Compatibility with Trulocks: While Cobra locks are non-handed, Winkhaus Trulocks share the same gearbox but feature different hooks, providing options for various installation needs.

Identification and Installation:

To easily identify a Winkhaus Cobra lock, check the faceplate for the Winkhaus logo and the Secured by Design logo. The Cobra version is characterized by its central deadbolt and non-handed hooks.

Unique Locking Options:

• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for enhanced security when the dwelling is unoccupied. Both cylinders can be locked with the same key, preventing unauthorized exit.
• Routing Consistency: All Winkhaus locks share the same routing details, making upgrades or changes to locking operations straightforward. New keeps and handles may be required for modifications.

Gearbox Specifications:

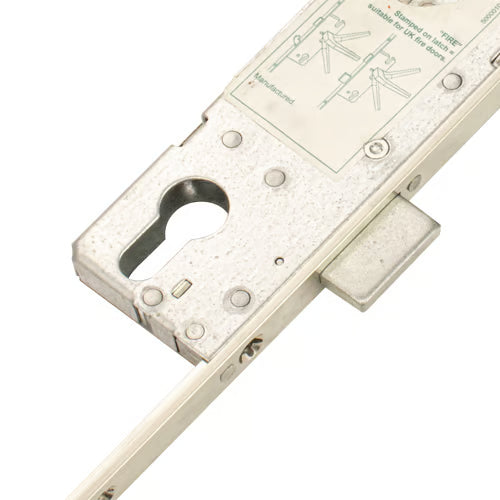

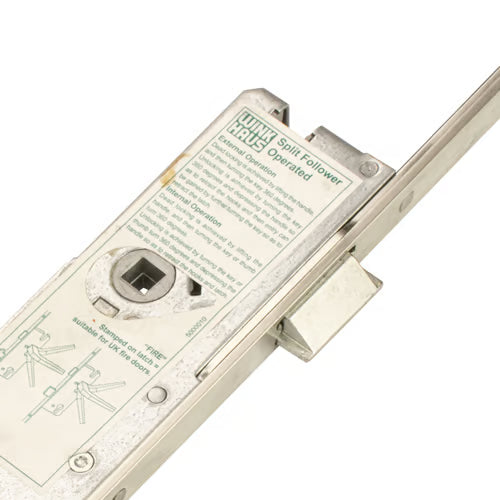

Winkhaus gearboxes, except for the AV4, measure 185mm high with a backset of +15mm, making them among the smallest on the market. They feature a groove above the spindle for easy handle fitment.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance:

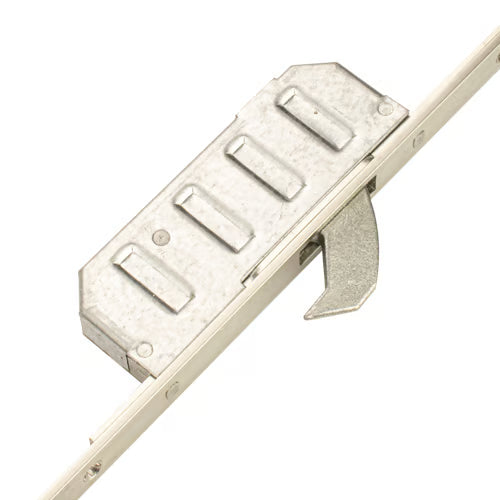

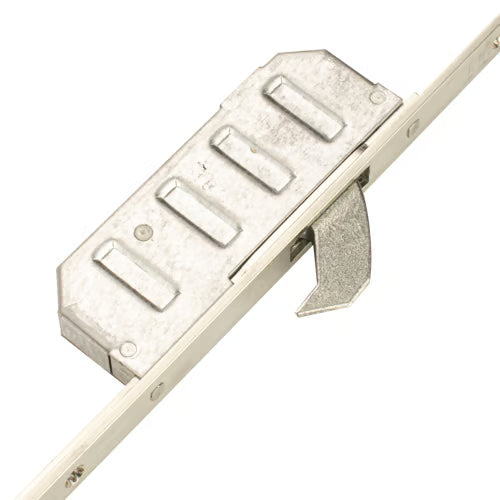

Winkhaus Cobra locks are rigorously tested to 100,000 cycles, ensuring durability and reliability. With 25mm throw solid steel Cobra hooks, these locks provide high security, fully engaging the keep rail to prevent forced entry.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 3
• Deadbolts: 1
• Latch: 1
• Other Locking Points: Entryguard
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2100mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

Measuring Guidelines:

To ensure accurate measurements for your Winkhaus Cobra lock, follow these guidelines:

Backset Measurement:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This is crucial for proper installation.

Centres PZ Measurement:
The PZ measurement refers to the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately.

Faceplate Measurement:
To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. This ensures compatibility with your new lock.

By following these steps, you can ensure that your Winkhaus Cobra lock is installed correctly and functions optimally.
