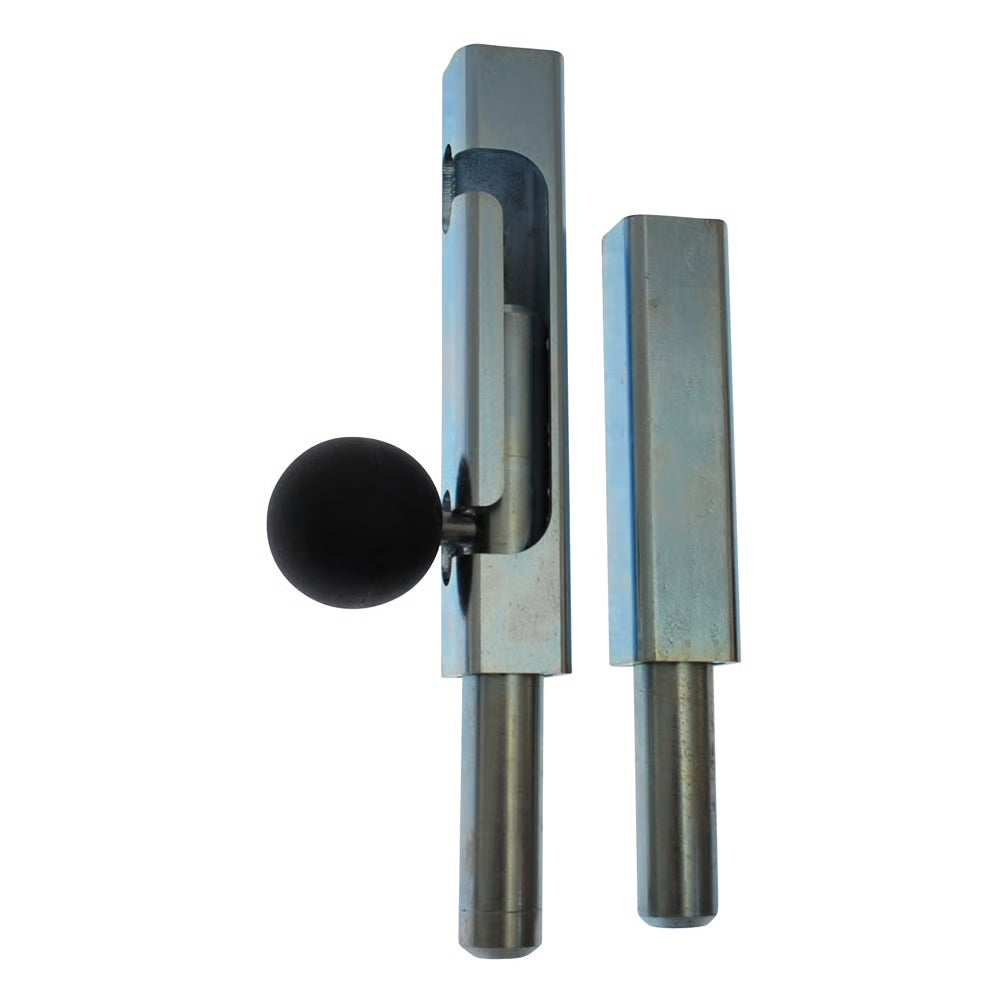

Gatemaster CDD/CDS Concealed Drop Bolt

Introducing a very neat dropbolt that can be fitted into either single or double gates. The concealed design ensures it suits a wide range of gate sizes and styles without looking out of place.

• Robust: The dropbolt is securely housed inside the gate frame to prevent tampering.

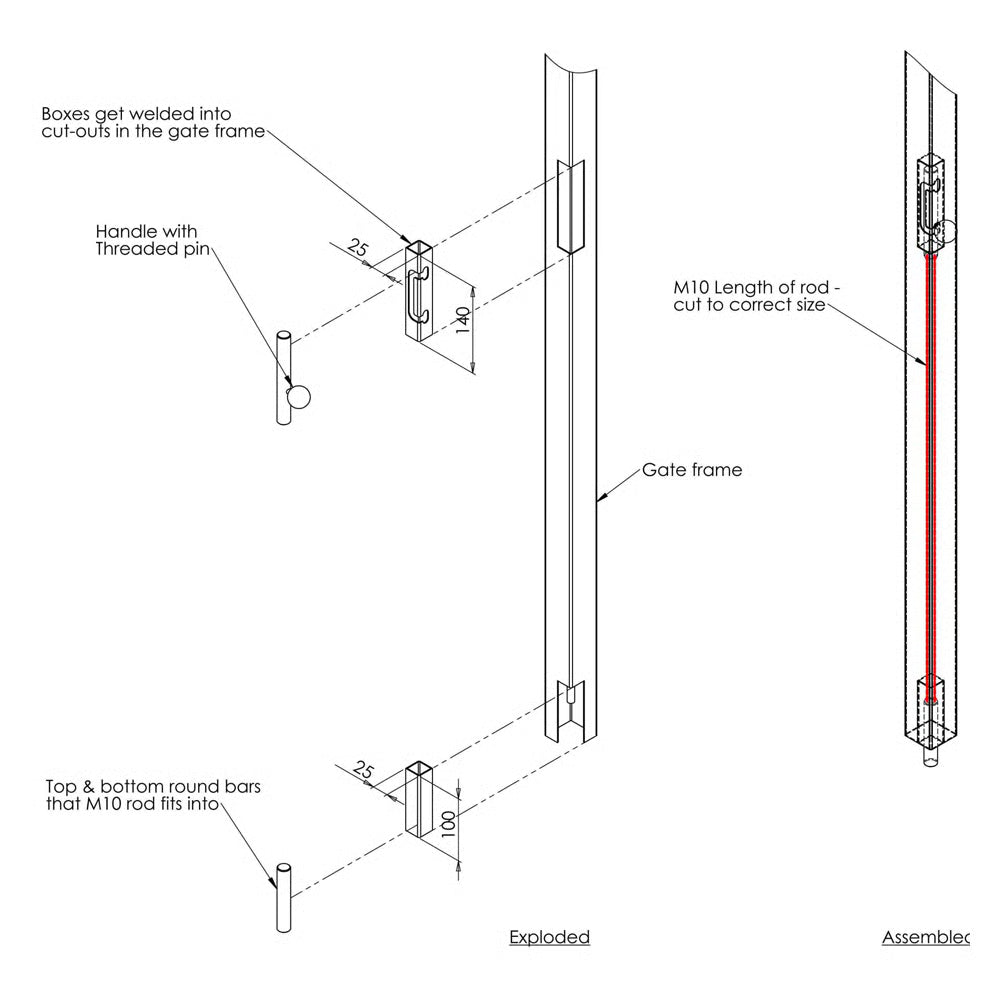

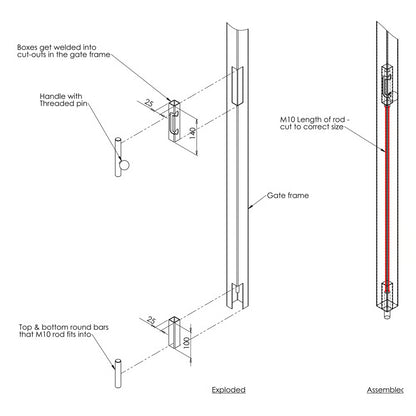

• Easy to Fit: Assembled using M10 studding* which can be cut to length for use on various gate sizes.
• Adaptable: Fits into any box section larger than 30mm x 30mm.
• Innovative and Secure: On the double gate version, the dropbolt is lowered, rotated, and locked in position. Closing the second gate prevents the dropbolt from being unlocked.

Product Code

• CDS - For single gates
• CDD - For double gates

Included in the Box

• Lower bolt
• Top bolt
• Top housing
• Lower housing
• Handle
• 2 x grub screws

*Note: M10 studding is not included with the product.

This item can be mixed and matched for a cheaper price with selected Gatemaster products alongside products with the 'Mix & Match' logo displayed beside the product title. The price will be reduced once more than one eligible product has been added to the basket.

All selected products can be viewed by clicking here.

Product Specification

• Manufacturer: Gatemaster
• Type: Select from drop-down
