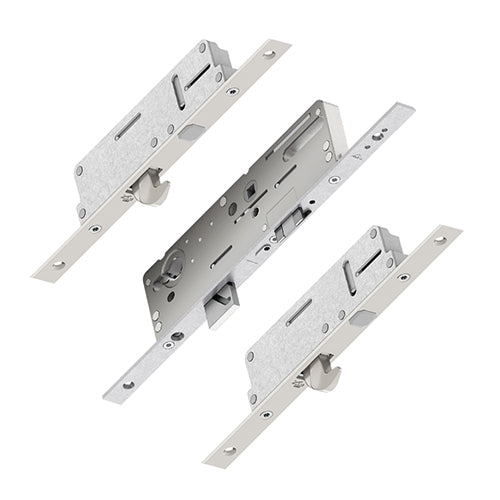

C600 Latch Deadbolt 2 Hooks Key Wind Multipoint Door Lock

Product Overview: Roto C600 Multipoint Door Lock

The Roto C600 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is the key wind version of the H600 model, which has been replaced by the H650, allowing for compatibility in locking point positions between these models.

Key Features:

• Introduction Year: Launched in 2016, the C600 series is easily identifiable by its key wind operation.
• Gearbox Specifications:
  • Dimensions: 213mm x backset + 18mm
  • Latch Size: 30mm x 10mm
  • Bolt Height: 30mm
  • Distance Between Latch and Deadbolt: 57.5mm
  • Elongated Piercing: Measures between 136mm and 173mm from the center of the euro cut-out for handle bolts.
• Whisper Latch: The C600 features a "whisper latch" as standard, designed with a central plastic component to ensure quiet door closure. Note that some locks may have alternative latches without this insert.
• Backset Options: Available in European markets with backsets ranging from 25mm to 80mm, with 35mm and 45mm options specifically for the UK. Remember to account for an additional 2-3mm for the faceplate when measuring.
• Hook Design: The hooks are engineered to move upwards only, with hook cases measuring 130mm by 43mm and projecting 23mm into their keeps.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Turn the key to throw and engage the locking points.

To Unlock the Door:

1. Turn the key to unlock by "unwinding" the locking points.
2. A further quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Roto
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed

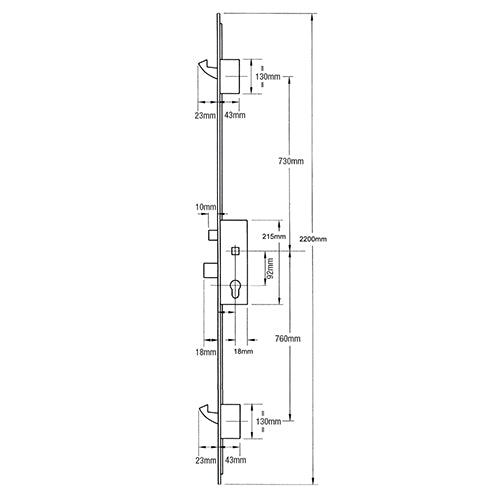

• Distance Between Inner Locking: 1490mm
• Height: 2200mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Roto C600 multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • Ensure the door is closed for precise measurement.
• Centres PZ Measurement:
  • Measure the distance from the center of the keyhole to the center of the handle hole.
  • This measurement is crucial for proper alignment.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • If replacing, ensure the new faceplate matches these dimensions.
• Operation:
  • The operation of the lock can vary based on the specific model and installation.
  • Refer to the user manual for detailed instructions on how to operate your lock effectively.

By following these measurement guidelines, you can ensure a perfect fit for your Roto C600 multipoint door lock, enhancing both security and functionality.
