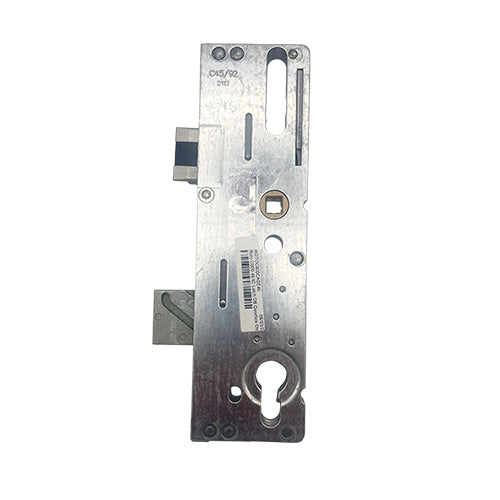

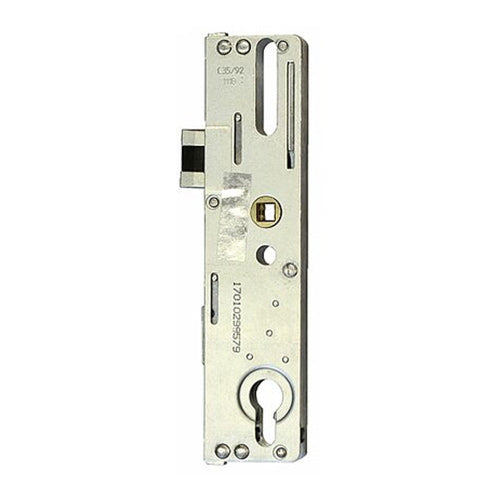

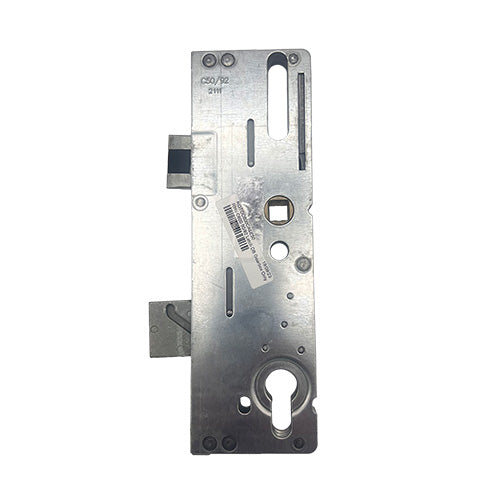

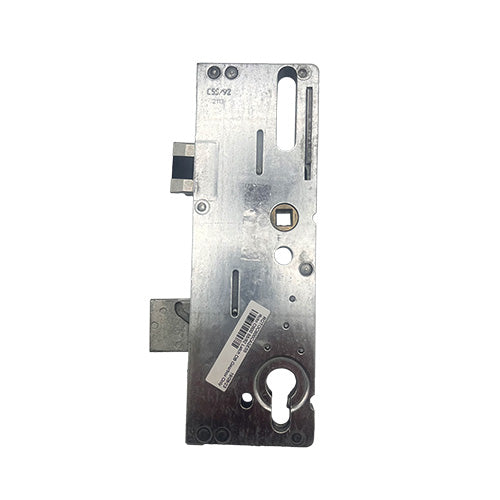

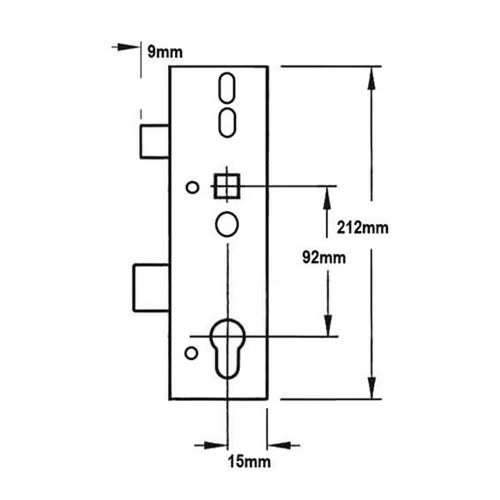

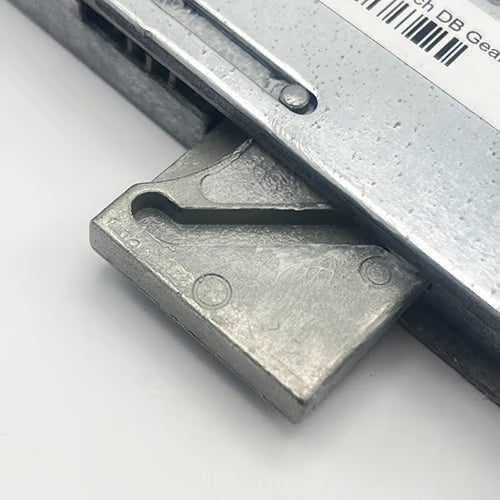

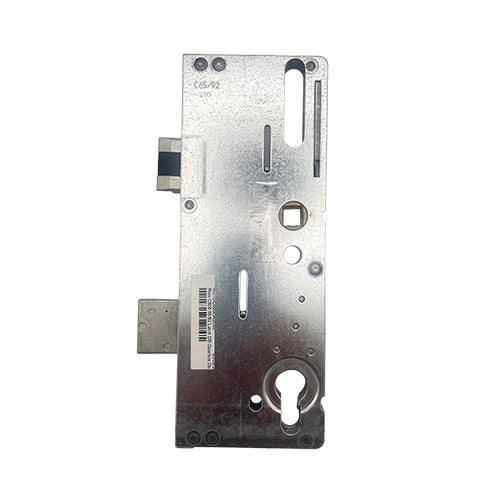

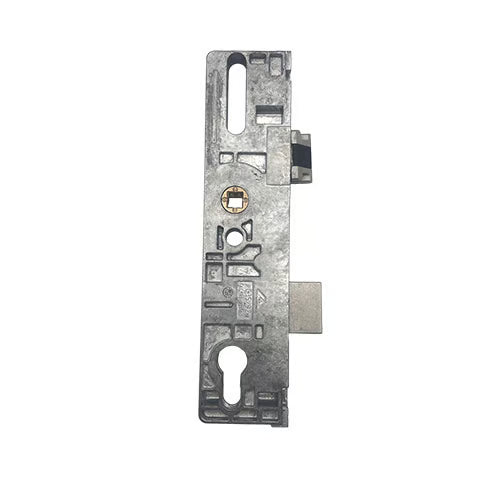

The Roto C600 gearboxes are designed for durability and ease of use, measuring 213mm in height with a backset that varies by model, plus an additional 18mm in width. These gearboxes are equipped with a 30mm x 10mm latch and a 30mm high bolt, featuring a spacing of 57.5mm between the latch and deadbolt. A unique elongated piercing allows for bolt installation, measuring between 136mm and 173mm from the center of the euro cut-out.
Key Features:
Whisper Latch: The standard fitment includes a "whisper latch," which incorporates a central plastic component to ensure quiet door closure. Note that some locks may have alternative latches without this insert.
Backset Variations: Available in backsets ranging from 25mm to 80mm for European markets, with specific options of 35mm and 45mm for the UK. When measuring backsets, remember to account for a 2-3mm allowance for the faceplate.
Comprehensive Stock: We offer a variety of associated products for the Roto C600 gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.
Locking and Unlocking Mechanism:
To lock the door:
Close the door to automatically engage the latch.
Turn the key to throw and engage the locking points.
To unlock the door:
Turn the key to unwind the locking points.
A further quarter turn will retract the latch.
Product Specifications:
Manufacturer: Roto
Backset Options: 35mm, 45mm, 50mm, 55mm, or 65mm
Centres PZ: 92mm
Case Height: 213mm
Case Width: Backset + 18mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt

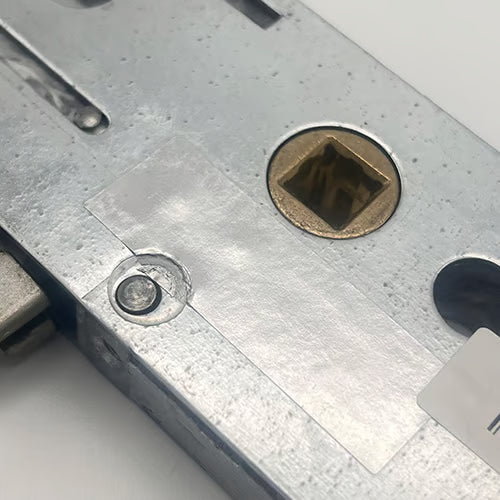

Spindle: Single 8mm (Single 10mm spindle hole for 50mm and 65mm backsets)
Operation: Key Wind
Packaging: Supplied in single units
For any further inquiries or assistance with installation, feel free to reach out!
