C-TS Latch Deadbolt 2 Rollers 2 Hooks Multipoint Door Lock - Master French Door Lock Section

Product Overview: Maco C-TS Multipoint Door Lock

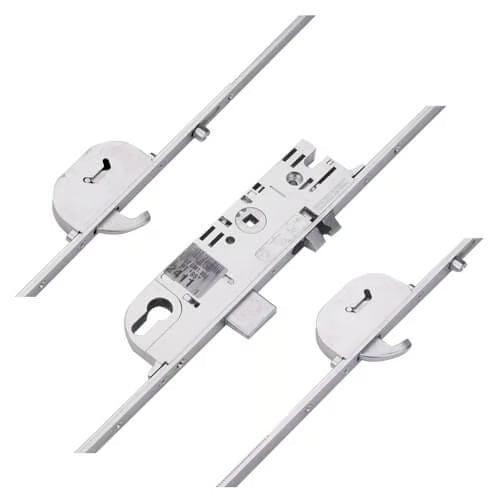

The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch.

Key Features:

• Versatile Design: Introduced in 2012, the C-TS locks have replaced the older G-TS range, offering a split spindle function that allows for both lift lever and split spindle operation. This makes it a versatile replacement option for the G-TS series.
• Identification: Easily identifiable by the Maco logo on the faceplate and the unique shape of the locking gearboxes, the C-TS locks ensure you have the right product for your needs.
• Faceplate Options: Available in traditional 16mm and 20mm faceplates, with some models featuring a "Top Hat" faceplate for a seamless finish. This innovative design covers routing details while maintaining aesthetic appeal.

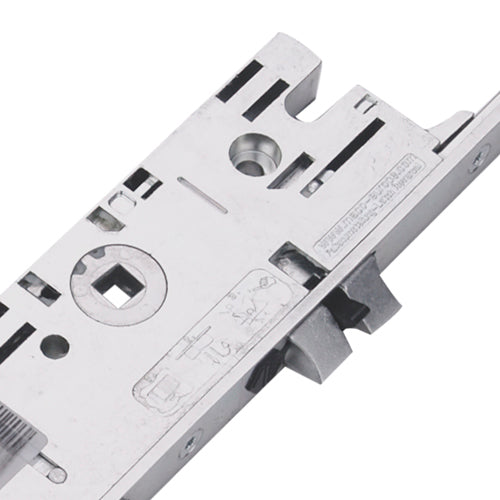

• Distinctive Shape: The rounded shape of both the main gearbox and hook boxes sets the C-TS apart, with a notably compact size of 202mm high, making it one of the smaller gearboxes available.
• Soft Latch Mechanism: The lock features a unique "soft" latch design, which is split in half. Note that Maco offers various latch variants, so this feature alone may not definitively identify the lock.

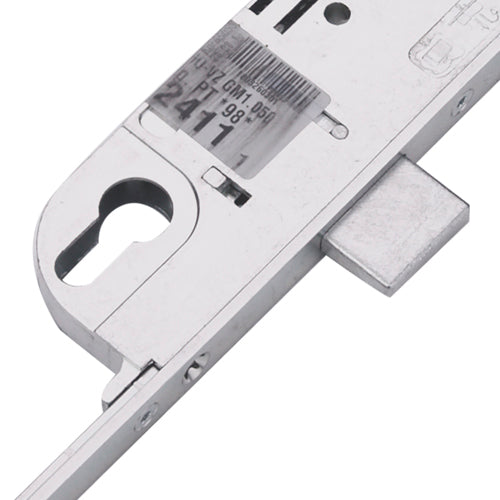

• Precision Measurements: The latch and deadbolt measure 30mm high, with a spacing of 55mm between them. Installation requires careful measurement, allowing for a 2-3mm adjustment for the faceplate.

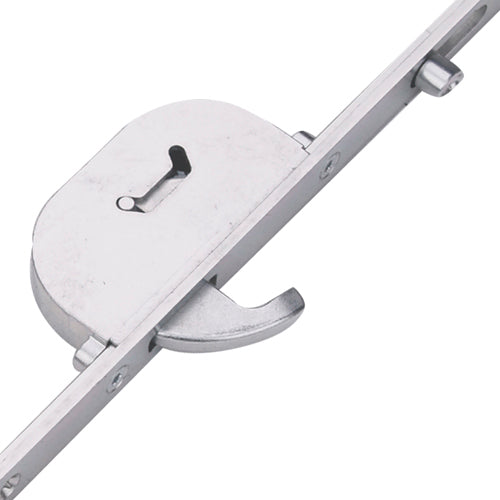

• Security Features: The C-TS locks come with two hook locking arrangements: a standard uni-directional hook and a higher security hook with an anti-lift pin, providing additional protection against unauthorized access.
• Durable Rollers: Known as i.S. cams, these hardened steel rollers assist in compression, pulling the door against the frame to prevent dust and water ingress, while also helping to maintain the door's structural integrity.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Endurance Testing: The Maco C-TS locks have been endurance tested to withstand 100,000 cycles, ensuring long-lasting performance.

Additional Products: We offer a comprehensive range of associated products for the Maco C-TS multipoint door locks, including keeps, spindles, handles, and various accessories.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1045mm
• Distance Between Outer Locking: 1045mm
• Height: 1800mm
• Top Hook to Spindle: 375mm
• Bottom Hook to Spindle: 670mm
• Top Roller to Spindle: 472mm
• Bottom Roller to Spindle: 573mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Maco C-TS multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler to measure this accurately.

Faceplate Measurement:
To measure the faceplate, determine the width and length of the existing faceplate on your door. This will help you select the appropriate option from the drop-down menu.

By following these guidelines, you can ensure that your Maco C-TS lock is installed correctly and functions optimally.
