BRITON 5760 DIN Standard Fire Rated Euro Escape Sashlock Case 60mm Backset

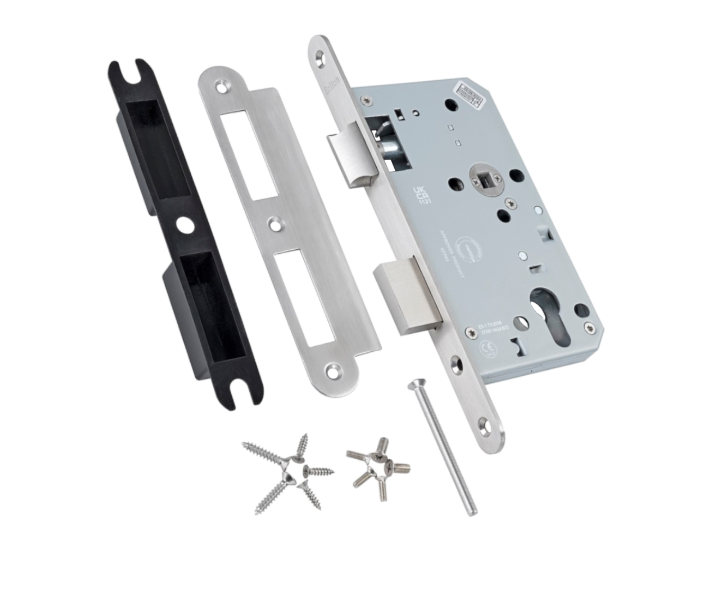

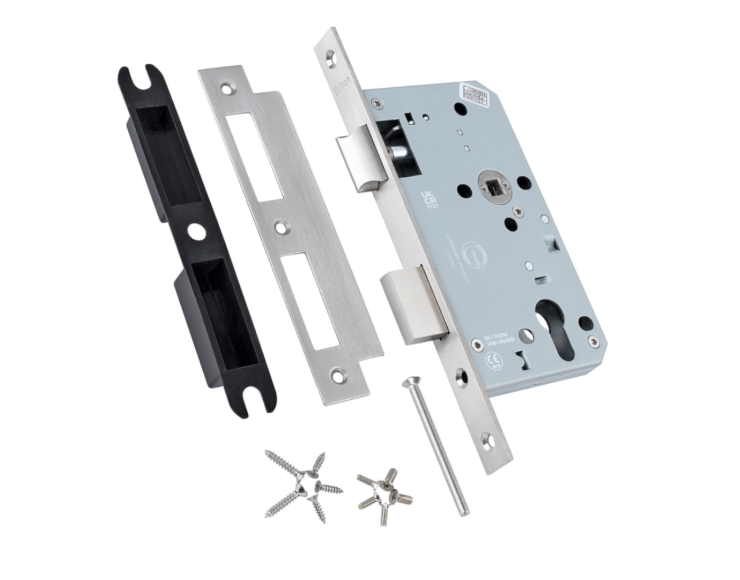

The Briton 5760 DIN Standard Euro Escape Sashlock Case is an essential component for ensuring safety and compliance in escape route applications. Designed specifically for euro profile cylinder locking and lever operation, this lockcase simplifies installation with its 60mm backset and 72mm centres, accommodating both left and right-handed doors effortlessly.

With a single turn of the cylinder, the bolt extends 20mm, providing robust security. The innovative split follower escape function allows for seamless integration into compliant escape door sets when paired with compatible hardware. Additionally, the lockcase is equipped with bolt-through fixing holes that adhere to DIN 18251 standards, ensuring a secure fit.

Constructed from galvanised steel with a satin nickel finish, this lockcase offers excellent corrosion resistance. The grade 316 stainless steel forend, available in both round and square designs, enhances durability. It has been rigorously tested to EN 1634-1 standards and holds Certifire approval, making it suitable for FD30 and FD60 fire doors. To maintain fire safety, it is crucial to install the appropriate intumescent pack and a suitable door closer when fitting to a fire door.

• Features
• Fire tested and must be installed according to the manufacturer’s instructions
• Compatible with FD30 & FD60 fire doors
• EN 1634-1 and Certifire approved with the correct intumescent kit
• Bolt-through fixing holes to DIN 18251
• 20mm single throw bolt for enhanced security
• 72mm centres and 60mm backset for versatile installation
• Quick reversible latch for ease of use
• Galvanised steel lockcase with satin nickel plating for corrosion resistance
• Grade 316 stainless steel single piece forend (round or square)
• Spindle dimensions: 8mm x 110mm
• Escape sashlock with split follower; spindle included

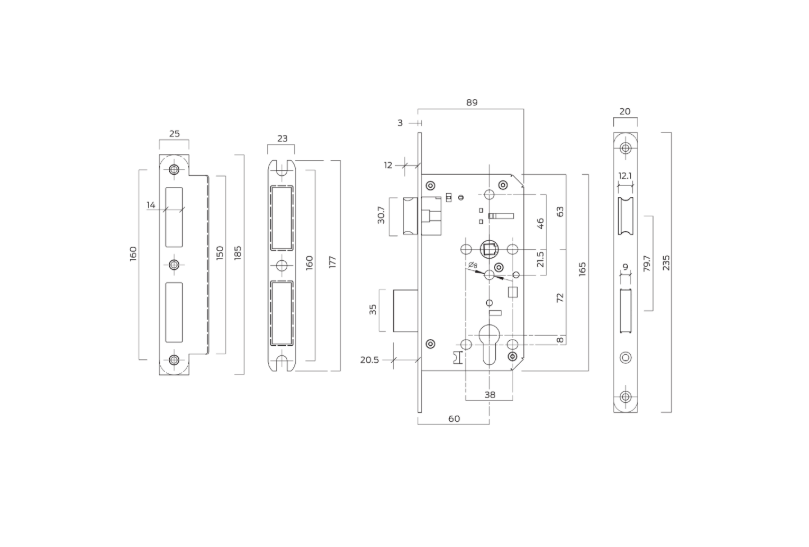

• Size Specifications
• Backset: 60mm
• Centres: 72mm
• Case Depth: 89mm
• Case Height: 165mm
• Forend Length: 235mm
• Forend Width: 20mm
• This lockcase is a reliable choice for enhancing safety in escape routes while ensuring compliance with fire safety regulations.
