BRITON 5710 DIN Standard Fire Rated Euro Profile Deadlock Case 60mm Backset

The Briton 5710 DIN Standard Euro Profile Deadlock Case is an exceptional choice for securing doors that require cylinder-operated locking without lever furniture. This lock is specifically designed for commercial and architectural applications, ensuring both functionality and reliability.

Constructed from galvanised steel and finished with satin nickel plating, this deadlock case offers excellent corrosion resistance, making it suitable for various environments. Its robust design includes bolt-through fixing holes compliant with DIN 18251, ensuring a secure installation.

• Key features include:
• Fire Door Compatibility: Approved for use on FD30 and FD60 fire doors, provided it is fitted with the appropriate intumescent pack. A suitable door closer must also be installed to maintain fire safety standards.
• Reversible Design: The lockcase is reversible, allowing for flexible fitting to accommodate different door configurations.

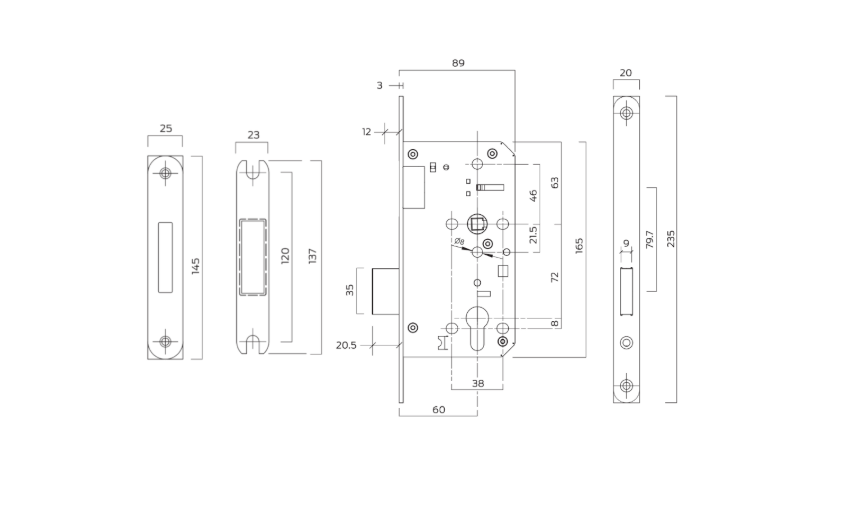

• Specifications:
  • Backset: 60mm
  • Centres: 72mm
  • Bolt Throw: 20mm
  • Case Depth: 89mm
  • Case Height: 165mm
  • Forend Length: 235mm
  • Forend Width: 20mm
• This product is not only fire tested but also must be installed according to the manufacturer’s instructions, ensuring optimal performance and safety. The option of a grade 316 stainless steel single piece round or square forend adds to its versatility and aesthetic appeal.

In summary, the Briton 5710 DIN Standard Euro Profile Deadlock Case is a reliable and durable locking solution, ideal for enhancing security in commercial and architectural settings while meeting stringent fire safety regulations.
