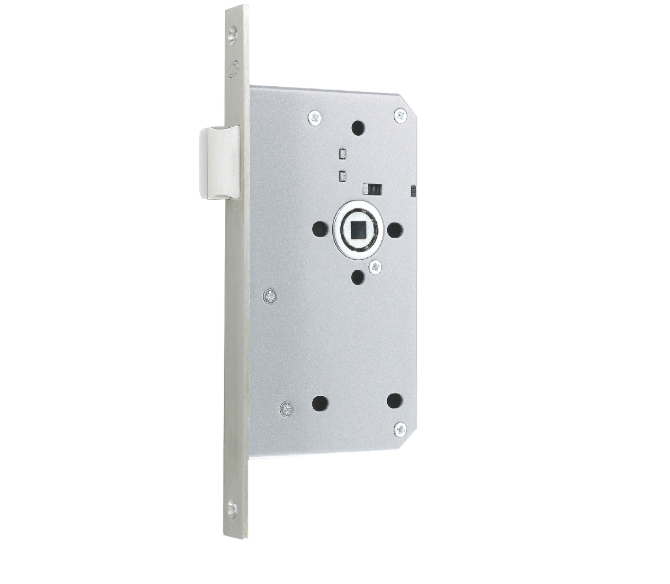

Briton 5440 DIN Standard Fire Rated Mortice Latch

The Briton 5440 DIN Mortice Latch is an ideal choice for doors equipped with lever furniture, where a locking mechanism is not necessary. This latch bolt is easily operated by the handle, making it perfect for commercial and architectural applications that require a straightforward and dependable latch case.

With a 60mm backset and a 72mm center, the Briton 5440 is designed for easy specification and installation on both left and right-handed doors. It boasts a grade 304 stainless steel single-piece forend, available in both round and square options. The lockcase is CE and UKCA marked to EN 12209, Certifire approved, and fire tested to EN 1634. These latches are suitable for FD30 and FD60 fire doors. To maintain the fire rating, it is essential to fit these digital locks with the appropriate intumescent pack. Additionally, if installed on a fire door, a compatible door closer must also be used.

• Features
• Suitable for use on FD30 & FD60 fire doors
• Fire tested and must be installed according to the manufacturer’s instructions, along with all relevant associated products
• Quick reversible latch for left and right-handed doors—no need to dismantle the lockcase
• Square forend
• Single-piece forend in grade 304 stainless steel with a satin finish simplifies door preparation

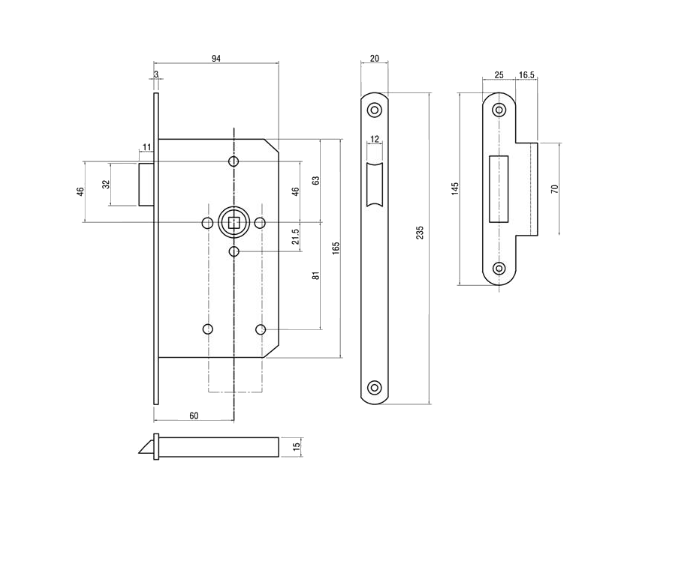

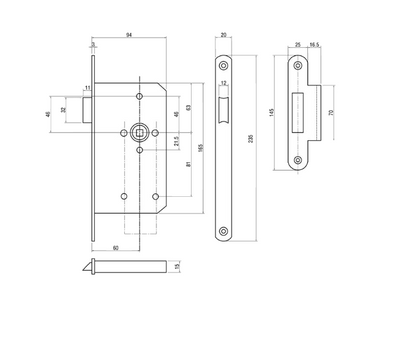

• Size Specifications
• Backset: 60mm
• Case Depth: 93mm
• Case Height: 165mm
• Forend Length: 235mm
• Forend Width: 20mm
