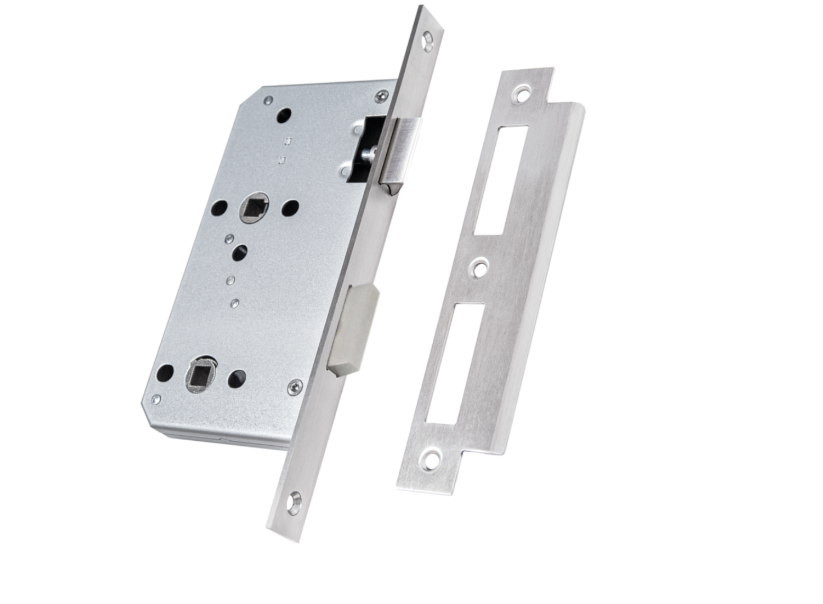

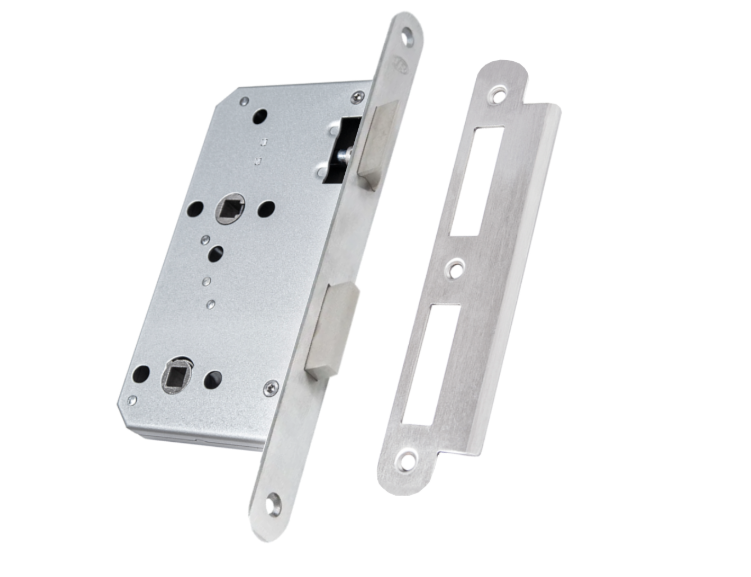

Briton 5430 DIN Standard Fire Rated Mortice Bathroom Lock

The Briton 5430 DIN Standard Mortice Bathroom Lock is an ideal choice for ensuring privacy in bathroom doors. This lock features a user-friendly design, with a latch operated by lever furniture and a 10mm throw deadbolt controlled by a thumbturn. For added convenience, it requires a compatible outside indicator or emergency release.

Designed for commercial applications, the Briton 5430 boasts a quick reversible latch, making it suitable for both left and right-handed doors. This feature streamlines installation, saving time and effort. The lock is available with a choice of round or square forend options, and its single-piece rounded forend is crafted from grade 304 stainless steel, finished in a sleek satin stainless steel.

This lock is also compliant with FD30 and FD60 fire door regulations. To maintain the fire rating, it must be installed with the appropriate intumescent pack, and a suitable door closer is required when fitted to a fire door.

• Features
• Fire Door Compatibility: Suitable for use on FD30 & FD60 fire doors.
• Installation Compliance: Fire tested and must be installed according to the manufacturer’s instructions, along with all relevant associated products.
• Reversible Latch: Quick reversible latch for left and right-handed doors—no need to dismantle the lockcase for installation.
• Forend Options: Choice of round or square forend.
• Durable Construction: Single-piece rounded forend in grade 304 stainless steel with a satin finish simplifies door preparation.

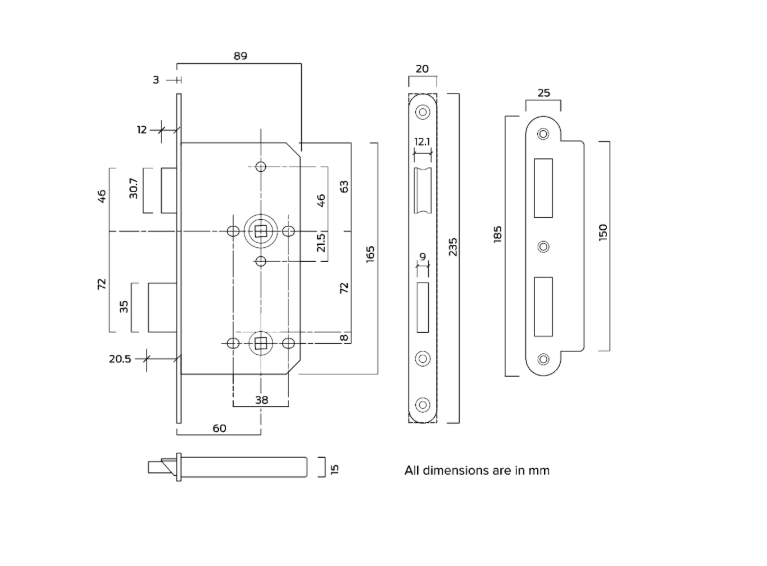

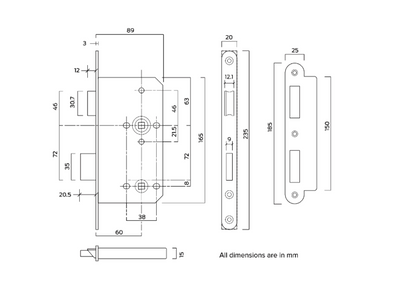

• Size Specifications
• Backset: 60mm
• Bolt Throw: 20mm
• Case Height: 165mm
• Forend Length: 235mm
• Forend Width: 20mm
