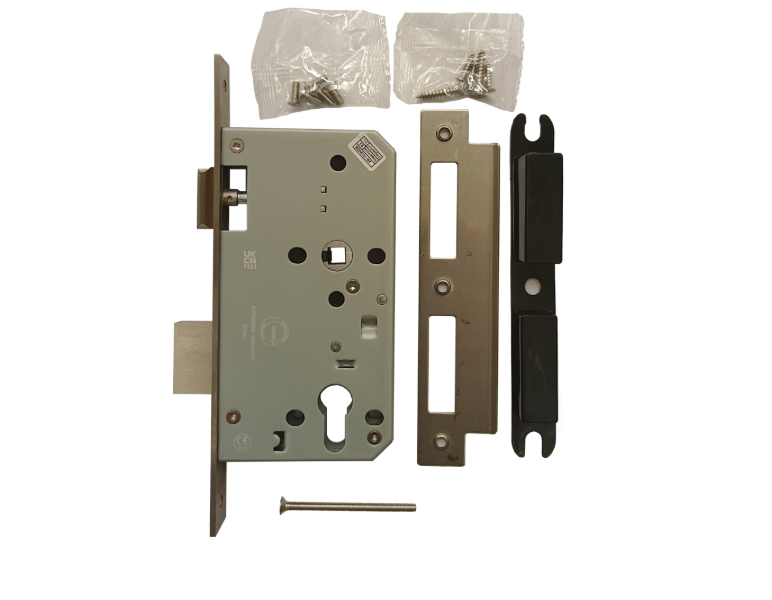

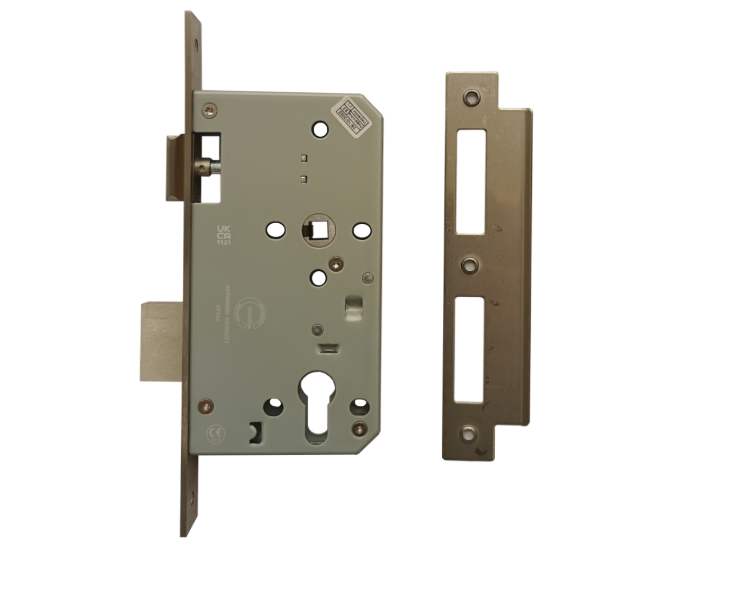

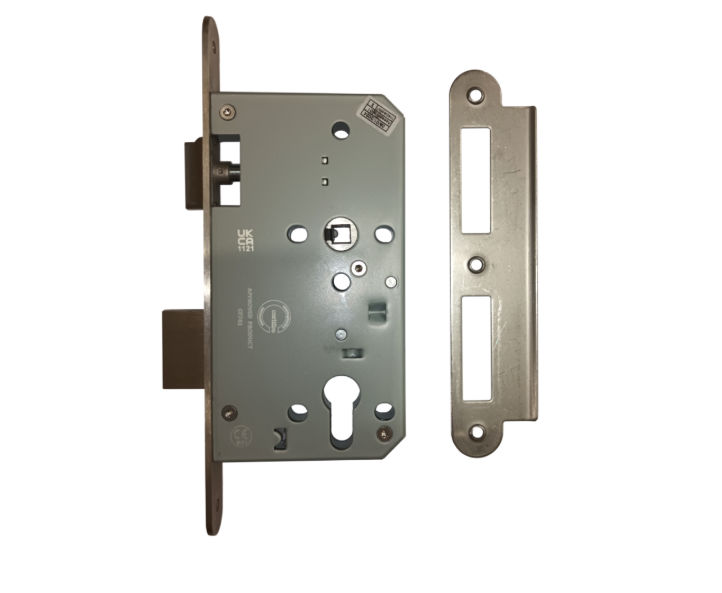

Briton 5420 DIN Standard Fire Rated Euro Sashcase

The Briton 5420 DIN Standard Euro Sashcase is a robust and reliable choice for securing lockable doors, particularly in commercial settings. Its heavy-duty design ensures durability and longevity, making it an ideal solution for high-traffic areas.

This sashlock not only provides double locking functionality but is also specifically engineered to meet the stringent requirements of DIN 18251. With a follower to cylinder measurement of 72mm, it seamlessly integrates with various lever furniture, enhancing both security and ease of use.

Constructed from grade 304 stainless steel with a sleek satin finish, the Briton 5420 is not only functional but also aesthetically pleasing. Its CE marking and successful testing to EN 12209 and EN 1634 further attest to its quality and reliability, ensuring compliance with fire safety standards for FD30 and FD60 fire doors.

When installing this product, it is crucial to adhere to the manufacturer's instructions and utilize the appropriate intumescent pack for fire-rated applications. Additionally, a suitable door closer must be installed to maintain the integrity of the fire door.

• Key Features
• Double Locking Functionality: Enhanced security for lockable doors.
• Fire Door Compatibility: Suitable for FD30 & FD60 fire doors.
• Quality Construction: Made from grade 304 stainless steel with a satin finish.
• Compliance and Testing: CE marked, tested to EN 12209, and included in a successful fire test to EN 1634.

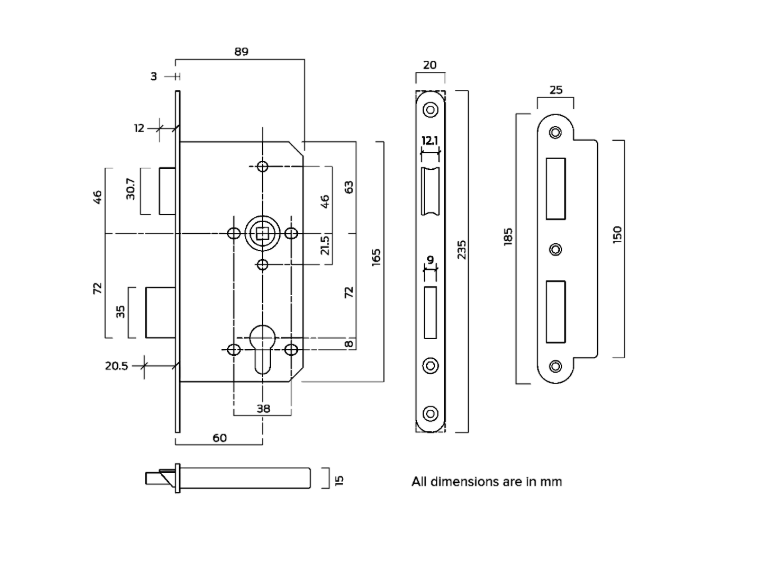

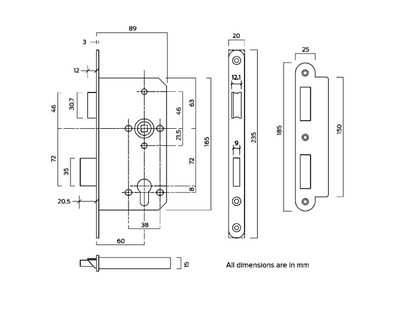

• Specifications
• Backset: 60mm
• Centres: 72mm
• Spindle: 8mm
• Bolt Throw: 20mm
• Case Depth: 89mm
• Case Height: 165mm
• Case Width: 15mm
• Forend Length: 235mm
• Forend Width: 20mm
• This comprehensive overview highlights the Briton 5420's features and specifications, making it an excellent choice for those seeking a reliable and secure locking solution.
