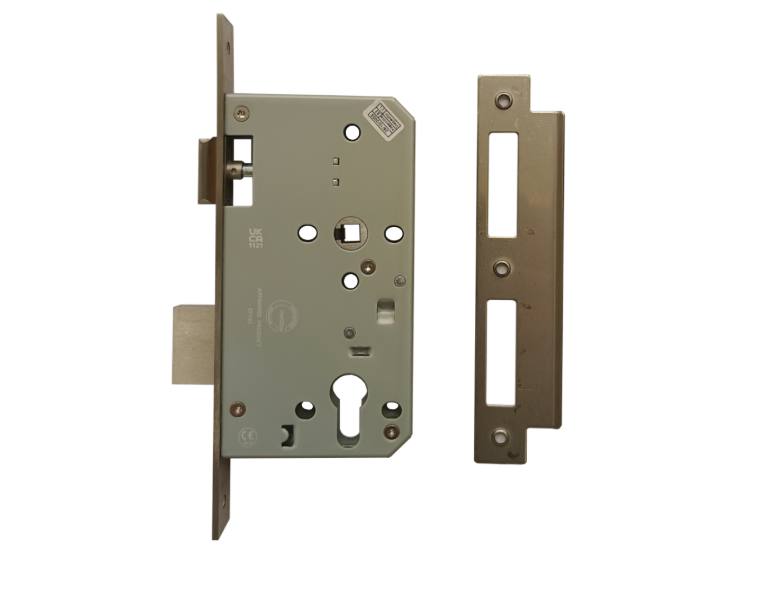

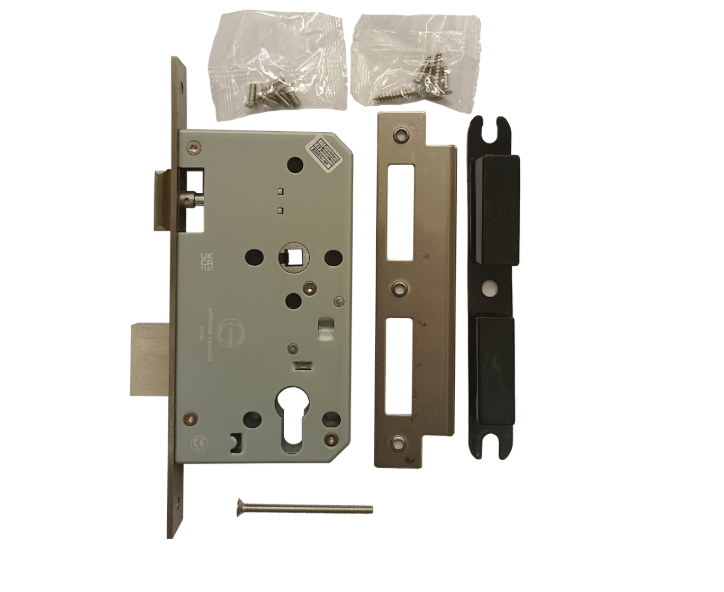

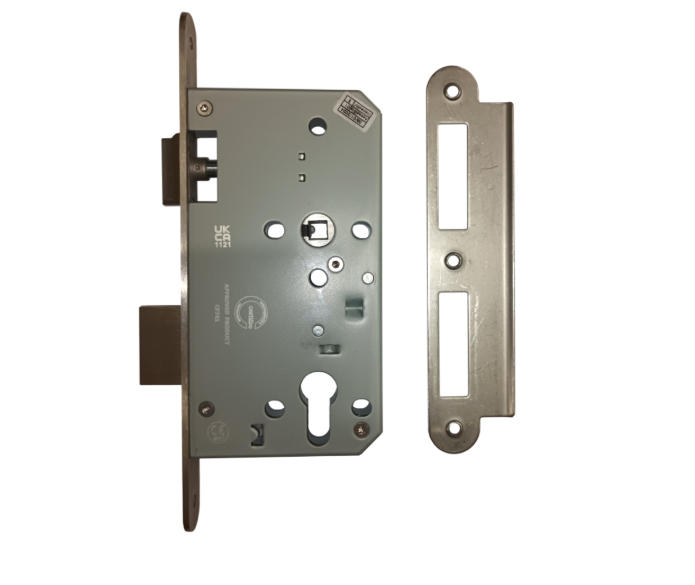

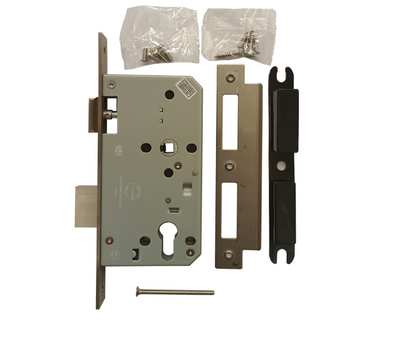

Briton 5420 DIN Standard Fire Rated Euro Sashcase

The Briton 5420 DIN Standard Euro Sashcase is an exceptional choice for those seeking robust security solutions for lockable doors. This heavy-duty double locking mortice sashlock is specifically designed to accommodate lever furniture, ensuring both functionality and reliability.

With its latchbolt easily withdrawn by the lever handle and a deadbolt operated via a euro profile cylinder, the Briton 5420 is versatile enough for various commercial door applications. Its construction adheres to the stringent dimensional requirements of DIN 18251, featuring a follower to cylinder centre measurement of 72mm.

Crafted from grade 304 stainless steel with a sleek satin finish, this sashlock not only offers durability but also aesthetic appeal. It is CE marked and has undergone rigorous testing to meet EN 12209 standards, ensuring compliance and safety. Additionally, it has been included in a successful fire test to EN 1634, making it suitable for FD30 and FD60 fire doors. To maintain the fire rating, it is essential to fit these digital locks with the appropriate intumescent pack, and a suitable door closer must also be installed on fire doors.

Features

• Double locking functionality for enhanced security
• Suitable for use on FD30 & FD60 fire doors, ensuring compliance with fire safety regulations
• Fire tested and must be installed according to the manufacturer’s instructions, along with all relevant associated products
• Grade 304 Stainless Steel with a satin finish for durability and style
• CE marked and compliant with EN 12209 standards
• Based on the dimensional requirements of DIN 18251 for precise installation

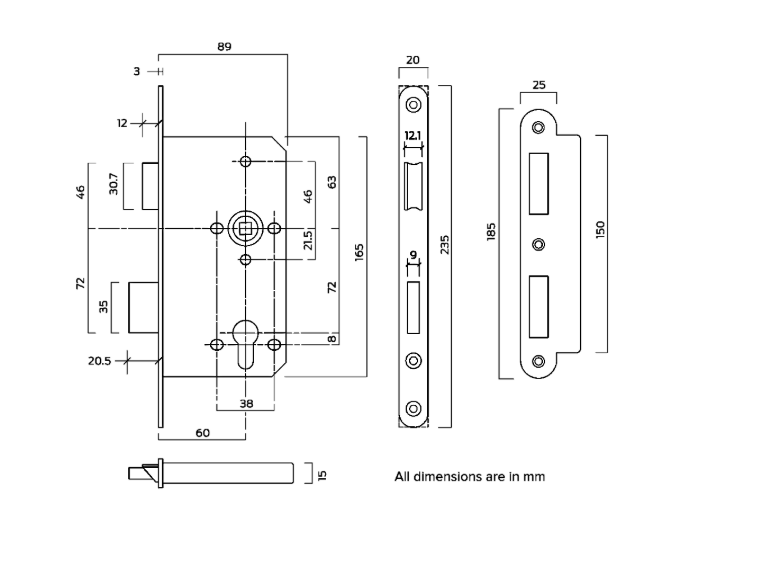

Specifications

• Backset: 60mm
• Centres: 72mm
• Spindle: 8mm
• Bolt Throw: 20mm
• Case Depth: 89mm
• Case Height: 165mm
• Case Width: 15mm
• Forend Length: 235mm
• Forend Width: 20mm

This comprehensive overview of the Briton 5420 DIN Standard Euro Sashcase highlights its robust features and specifications, making it an ideal choice for those prioritizing security and compliance in their door hardware solutions.
