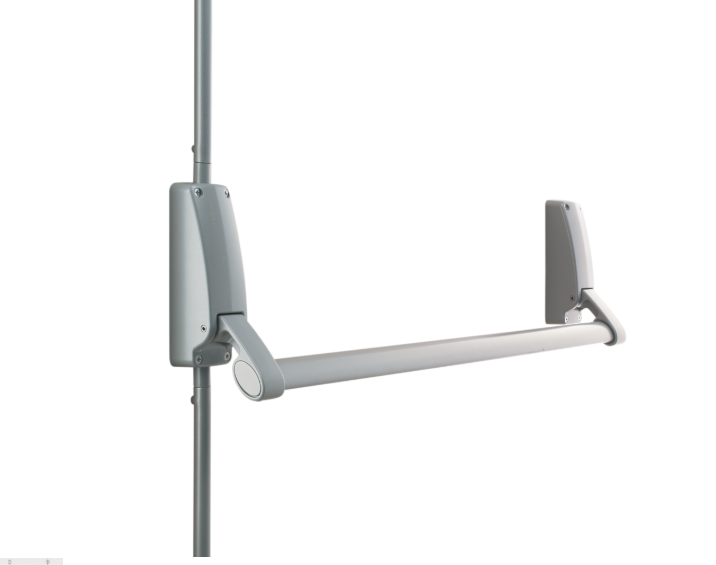

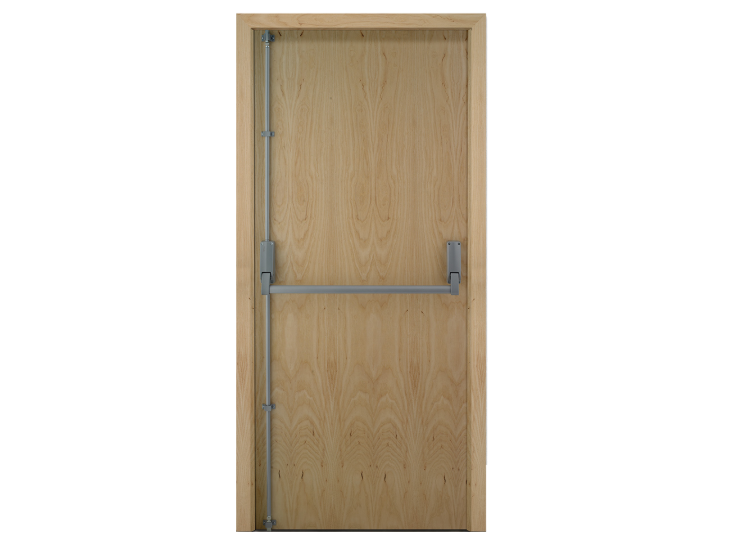

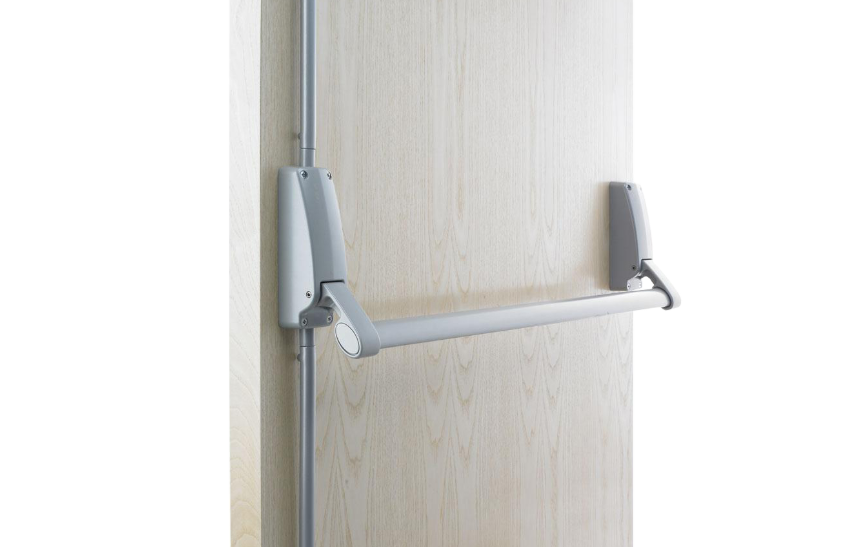

BRITON 376E Fire Rated Single Panic Bolt

The Briton 376E Single Panic Bolt is a reliable and versatile solution for enhancing safety in emergency situations. Designed for both single and double doors, this self-handed panic bolt features tubular steel shoots and a cross bar that can be easily adjusted on-site to accommodate various door dimensions.

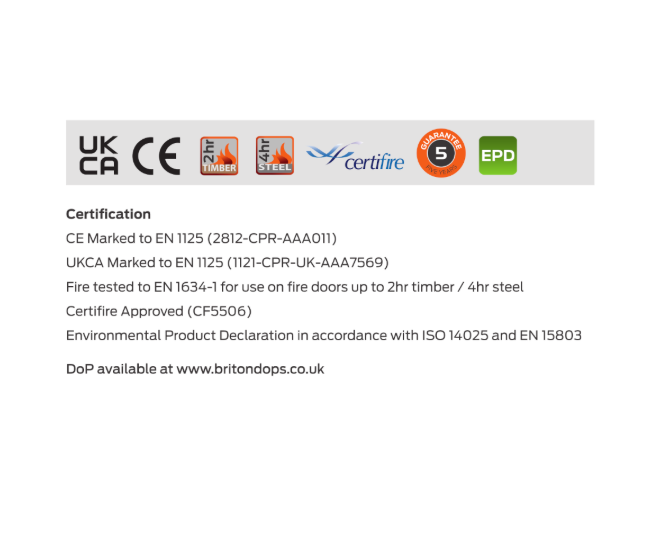

In an emergency, simply pushing the bar disengages the bolt, allowing for swift egress from the building. This product is not only Certifire approved (CF5506) but also CE marked (AAA011) and has undergone rigorous fire testing (EN1634) for up to 90 minutes. It is essential to install the panic bolt according to the manufacturer's guidelines and alongside all relevant associated products to ensure optimal performance. Additionally, it has been tested for durability, exceeding 200,000 cycles, and comes complete with fixings and a 5-year guarantee.

Features

• Easy Egress: Push bar disengages the bolts for quick exit during emergencies.
• Certifire Approved: Certified product (CF5506) ensuring compliance with safety standards.
• Fire Door Compatibility: Suitable for FD30, FD60, and FD90 fire doors.
• Installation Compliance: Must be installed per manufacturer’s instructions with all relevant products.
• Self-Handing Design: Ideal for both single and double door applications.
• Enhanced Security: Anti-thrust device and automatic top catch secure the bolt when the door is closed.

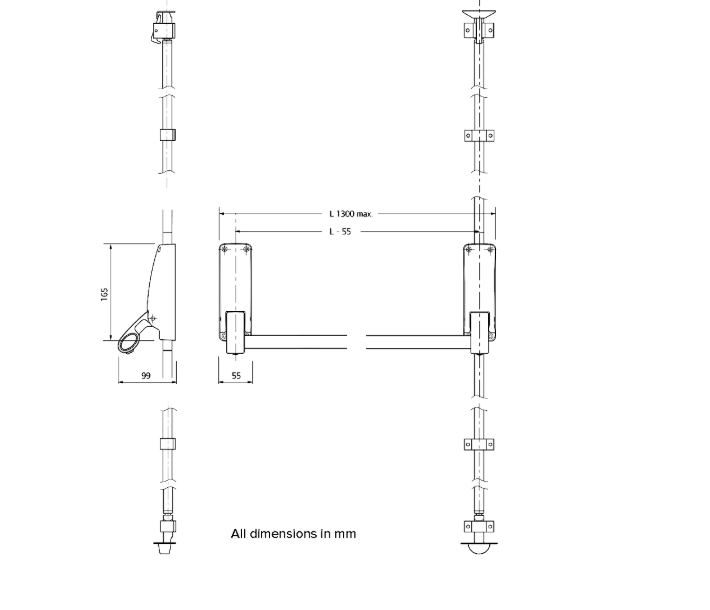

Size Specifications

• Max Door Height: 2500mm
• Max Door Weight: 200Kg
• Max Door Width: 1300mm

This panic bolt is an essential addition to any safety-conscious building, ensuring that occupants can exit quickly and safely in case of an emergency.
