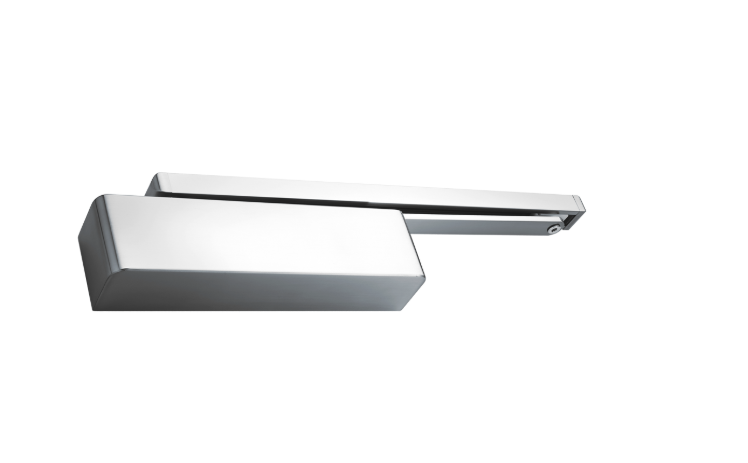

BRITON 2320 & 2321 Size 2-4 Fire Rated Cam Action Door Closer

The Briton 2300 series of Cam Action Door Closers is designed to enhance both functionality and safety in various environments. With its innovative cam technology, this surface-mounted closer allows for a maximum 180° opening and features an AI (Adjustable Intensity) backcheck, ensuring smooth operation and reliable performance.

This series is fully adjustable to EN2-4 standards and is CE marked across all power sizes and applications, guaranteeing compliance with European regulations. The Briton 2300 is also Certifire approved, having undergone rigorous fire testing to EN1634 standards on timber doors, achieving an impressive 2-hour fire rating. To back its quality, it comes with a comprehensive 10-year warranty.

Specifications:

• Finish: Silver Enamelled
• Size:
  • Length: 27cm
  • Width: 68mm
  • Body Height: 63mm
• Max Door Weight: 80Kg
• Max Door Width: 1100mm
• Strength Size: 2 To 4
• Handed: Reversible
• Notes: Softline Cover
• Operation: Pull side of door or pull side transom
• Pack Quantity: 1

Features:

• Suitable for use on FD120 fire doors
• Certifire Approved (CF5291)
• Adjustable backcheck between 70˚ and 180˚
• Adjustable latch action
• Fire tested to EN1634 on timber doors to achieve a 2-hour fire rating
• CE marked in all power sizes and applications for EN compliance
• Closing speed adjustable from 120˚ opening through to the final 7˚

This door closer is an excellent choice for ensuring safety and compliance in both commercial and residential settings.
