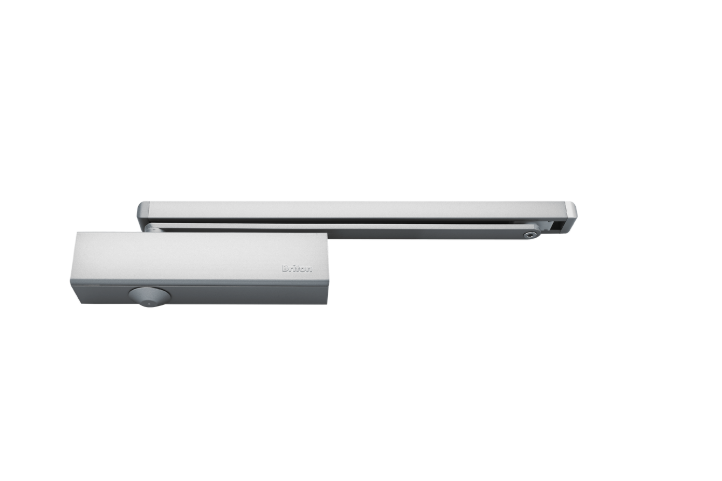

BRITON 2320 & 2321 Size 2-4 Fire Rated Cam Action Door Closer

The Briton 2300 series of Cam Action Door Closers is designed to enhance both functionality and safety in various environments. With its innovative cam technology, this surface-mounted closer allows for a maximum opening of 180°, featuring an AI (Adjustable Intensity) backcheck that ensures smooth operation.

This series is fully adjustable to EN2-4 standards and is CE marked across all power sizes, ensuring compliance with European regulations. The Briton 2300 is also Certifire approved, having undergone rigorous fire testing to EN1634 standards on timber doors, achieving a remarkable 2-hour fire rating. Plus, it comes with a generous 10-year warranty, providing peace of mind for users.

• Specifications
• Finish: Silver Enamelled

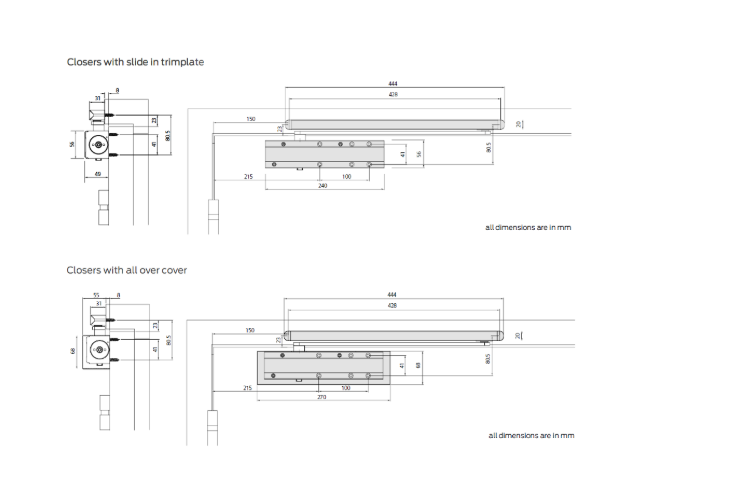

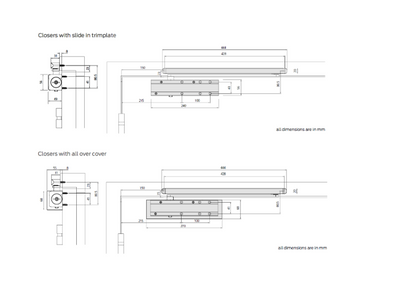

• Size:
  • Length: 24cm
  • Width: 56mm
  • Body Height: 49mm
• Max Door Weight: 80Kg
• Max Door Width: 1100mm
• Strength Size: 2 to 4
• General Features
  • Handed: Reversible
  • Notes: Trimplate Cover
  • Operation: Pull side of door or pull side transom
  • Pack Quantity: 1
• Key Features
• Suitable for use on FD120 fire doors
• Certifire Approved (CF5291)
• Adjustable backcheck between 70° and 180°
• Adjustable latch action
• Fire tested to EN1634 on timber doors for a 2-hour fire rating
• CE marked in all power sizes and applications for EN compliance
• Closing speed adjustable from 120° opening to the final 7°

This combination of features makes the Briton 2300 series an excellent choice for ensuring safety and reliability in door closure mechanisms.
