Bottom Shootbolts - Normal Action

Product Information

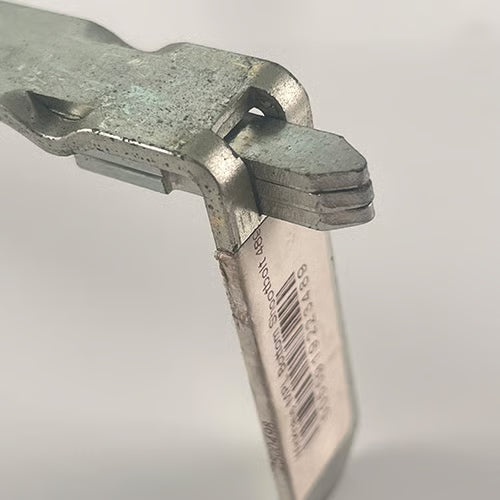

Introducing the Winkhaus normal action bottom shootbolts, designed specifically for use with Winkhaus multipoint locks featuring serrated connecting shoes. These shootbolts provide reliable security and functionality for your locking systems.

Available Models:

• 2500480
  Length: 175mm
  Width: 20mm
  Shootbolt throw: 22mm

• 2930754
  Length: 372mm
  Width: 20mm
  Shootbolt throw: 22mm

• 2500498
  Length: 489mm
  Width: 20mm
  Shootbolt throw: 22mm

• 2096392
  Length: 773mm
  Width: 20mm
  Shootbolt throw: 22mm

Note: A shootbolt keep is not included but can be ordered separately. Please refer to the ordering codes below for the associated keeps.

• RD55185X - Shootbolt keep
• 2836531 - Double pocket shootbolt keep

Product Specification

• Top or Bottom: Bottom
• Action: Normal action
• Length Options: 175mm / 372mm / 489mm / 773mm
• Width: 20mm
• Connection Type: Serrated drive rod
• Croppable: Yes
• Shootbolt Throw: 22mm
• Supplied: Singles

Ensure your locking systems are equipped with the best in security with Winkhaus shootbolts!
