Bifold Passive Genuine Multipoint Gearbox - Lift Lever or Split Spindle

Product Information

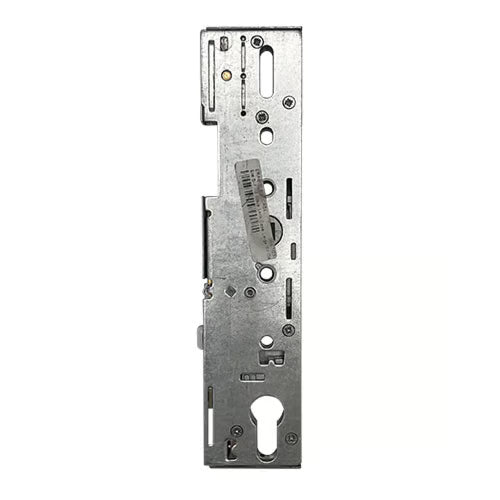

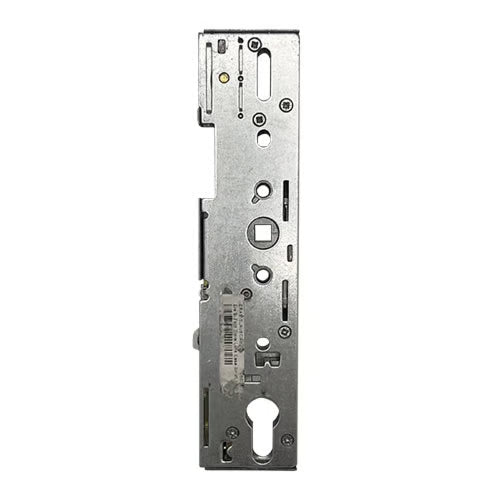

Available as either a large or small air gap variant. The large air gap is on the right in the photo above.

To Lock the Door

• On closing the door, the latch is automatically engaged.
• Lift the handle up to engage the additional locking points.
• Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To Unlock the Door

• Unlock the system by turning the key.
• Push the handle downwards to disengage the locking points.
• A further quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: ERA

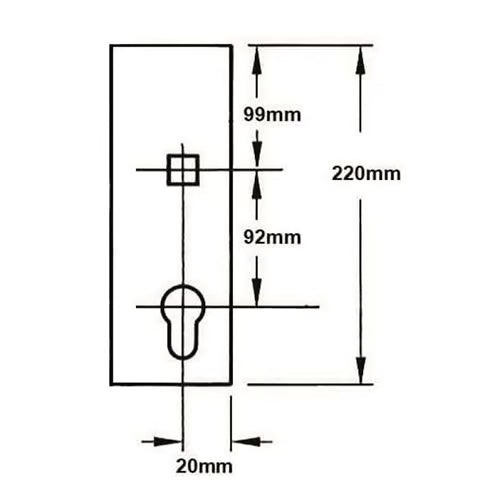

• Backset: 35mm - How do I measure the backset?
• Centres PZ: 92mm - How do I measure the centres?
• Case Height: 220mm
• Case Width: 55mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Passive lock
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
• Packaging: Supplied in singles
