Bifold Passive Genuine Multipoint Gearbox - Lift Lever or Split Spindle

Product Information

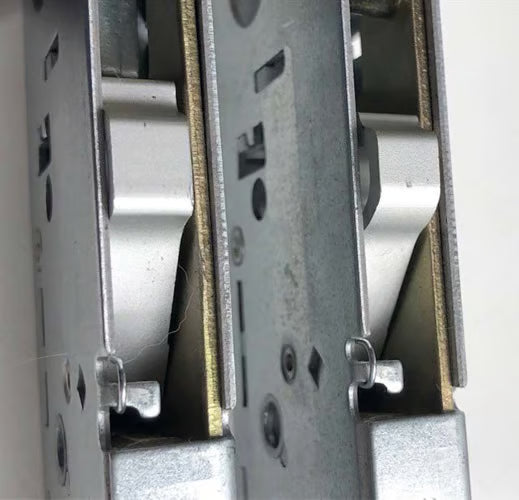

Available as either a large or small air gap variant. The large air gap is on the right in the photo above.

To Lock the Door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To Unlock the Door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: ERA

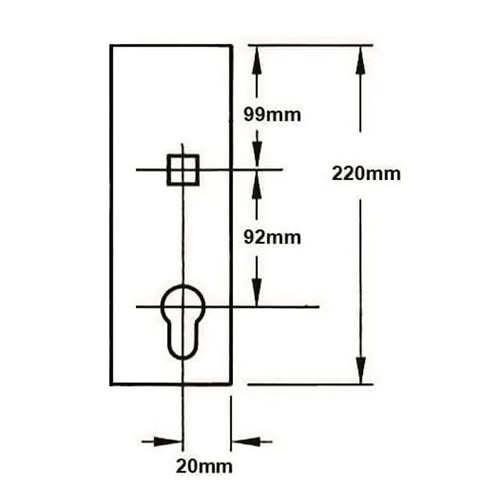

• Backset: 35mm - How do I measure the backset?
• Centres PZ: 92mm - How do I measure the centres?
• Case Height: 220mm
• Case Width: 55mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Passive lock
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
• Packaging: Supplied in single

This product combines security and convenience, making it an excellent choice for any door.
