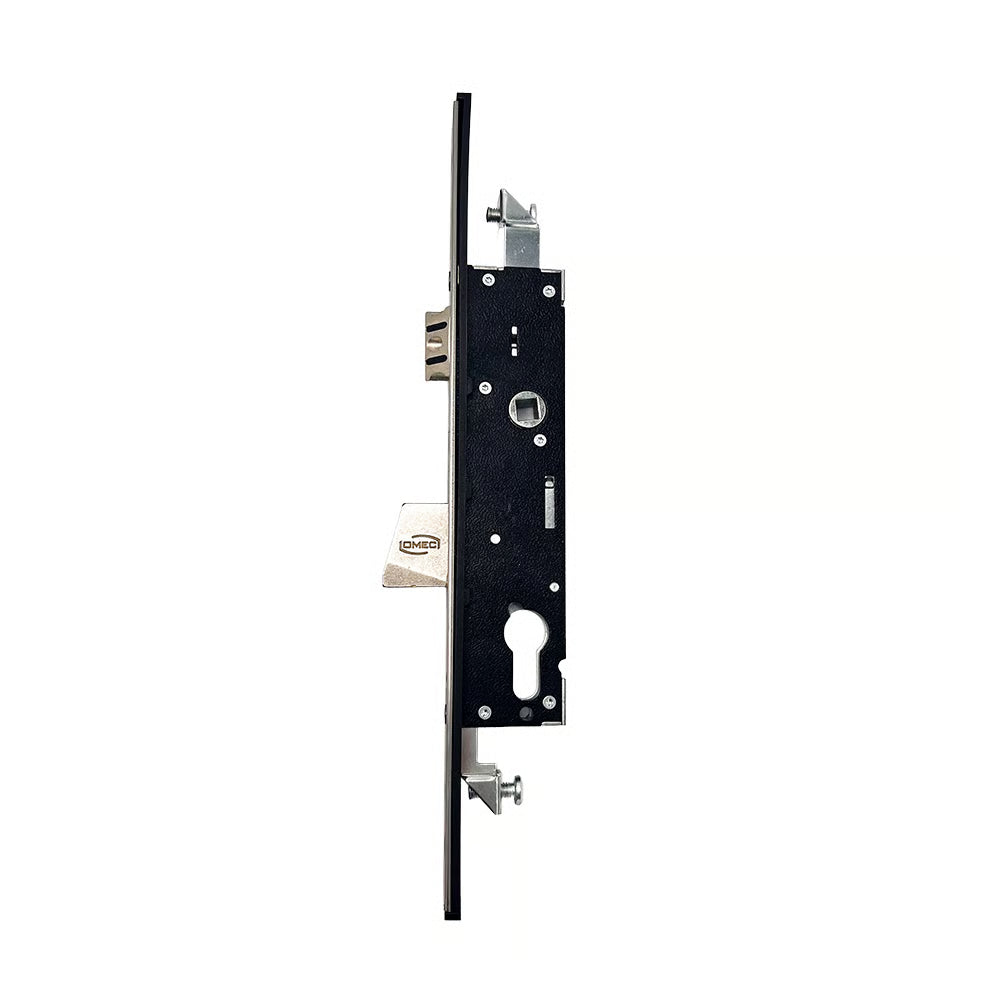

Bi-Fold Door Gearbox 30mm Backset

Introducing our high-quality gearbox designed for seamless integration with thermic and euro groove profiles. This gearbox minimizes the need for extensive machining on door profiles, ensuring a hassle-free installation process. The innovative closed lockcase design effectively prevents machining chips from entering the internal mechanism, enhancing durability and reliability.

Key Features

• Backset: 30mm
• Centres PZ: 85mm
• Faceplate Length: 300mm
• Faceplate Width: 25mm
• Height: 175mm
• Spindle Size: 8mm
• Main Gearbox: Latch and deadbolt
• Handing: Non-handed
• Cylinder Type: Euro profile
• Lockcase Thickness: 15mm (slim lockcase)
• Material: Stainless steel internal components and faceplate, zinc/plastic plated steel lockcase and cover
• Deadbolt Thickness: 8mm, excursion 24mm
• Adjustable Latch Bolt: Approximately 5mm, interchangeable with roller bolt or plug
• Compatibility: Can be paired with additional locking points kits for up to 5 locking points
• Packaging: Loose

Product Specification

• Manufacturer: Omec
• Backset: 30mm
• Centres PZ: 85mm
• Height: 175mm
• Main Gearbox: Latch and deadbolt
• Spindle: 8mm
• Faceplate Length: 300mm
• Handing: Non-handed
• Cylinder Type: Euro
• Genuine/Copy: Genuine
• Packaging: Loose
• Faceplate Width: 25mm
