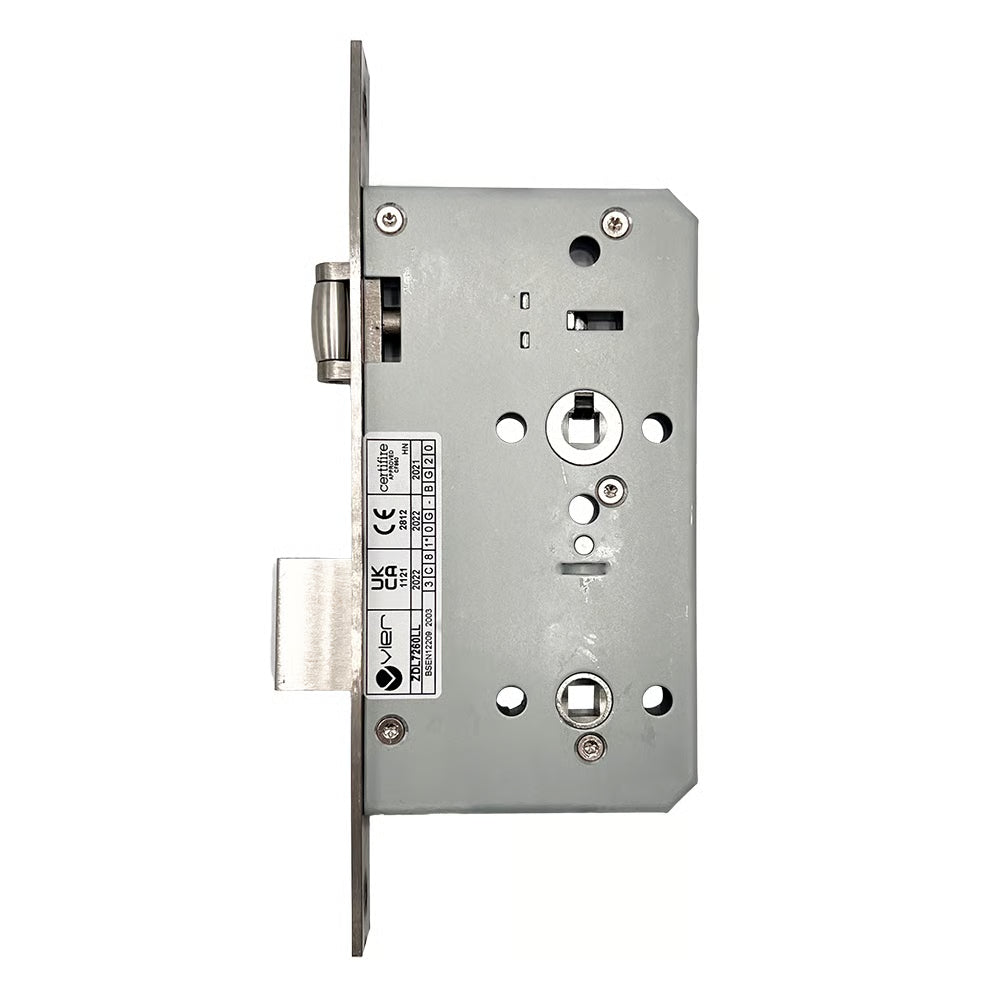

Bathroom Mortice Sashlock 60mm Lift to Lock

A DIN mortice lock is a type of lock that conforms to DIN standards—a set of German engineering specifications established by the Deutsches Institut für Normung (DIN). These standards ensure uniformity in size and fitting, making DIN mortice locks compatible across a wide range of doors and hardware.

This specific lock case operates via a lift-to-lock arrangement, where the user lifts the internal handle to prevent access from the outside while automatically operating the indicator bolt. The internal lever always allows egress, and when the lever is used, it automatically updates the indicator to show vacancy. This makes it a popular and easy solution for commercial bathrooms.

Product Features

• Available in 60mm backset only
• Stainless Steel single fixed forend, 22mm width, square or radius ends (select variation)
• Stainless Steel roller latch bolt grade 304
• Stainless Steel dead bolt grade 304
• Top and bottom follower for use with Lever on Round Rose handle and bathroom indicator set (see related products)

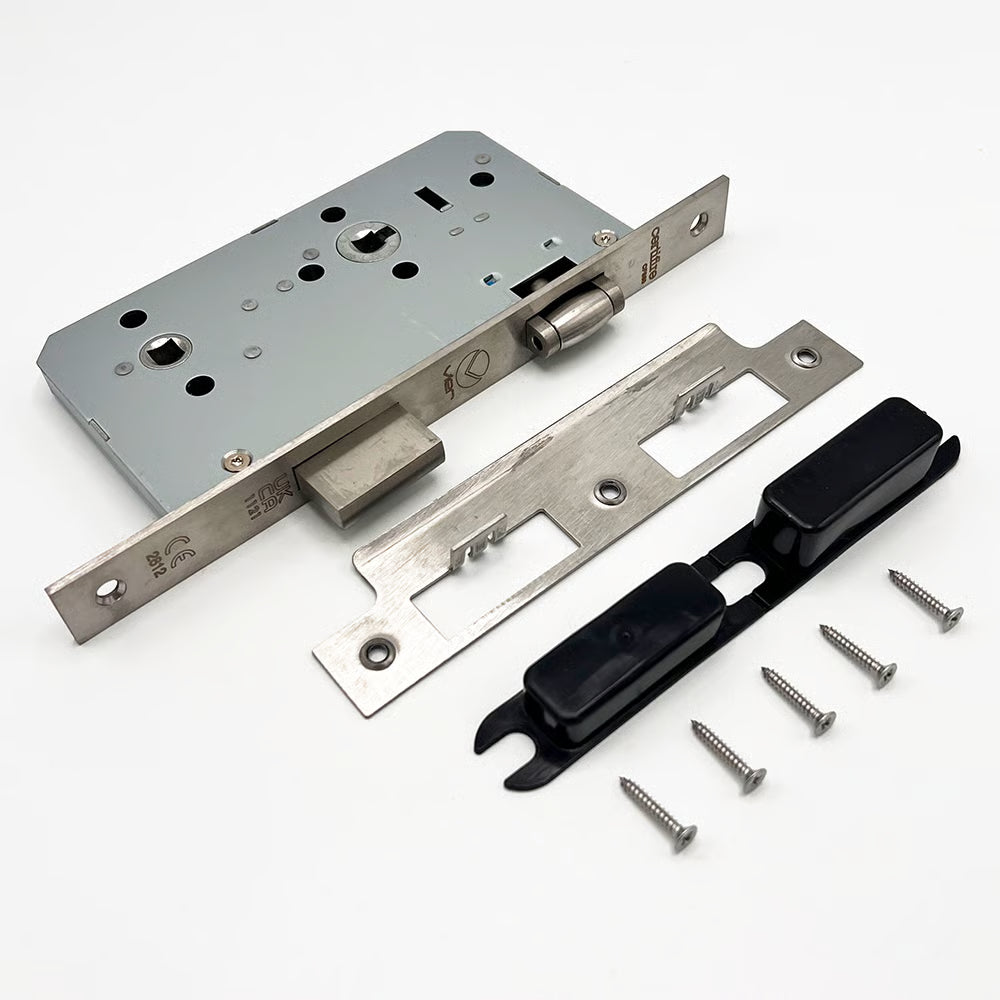

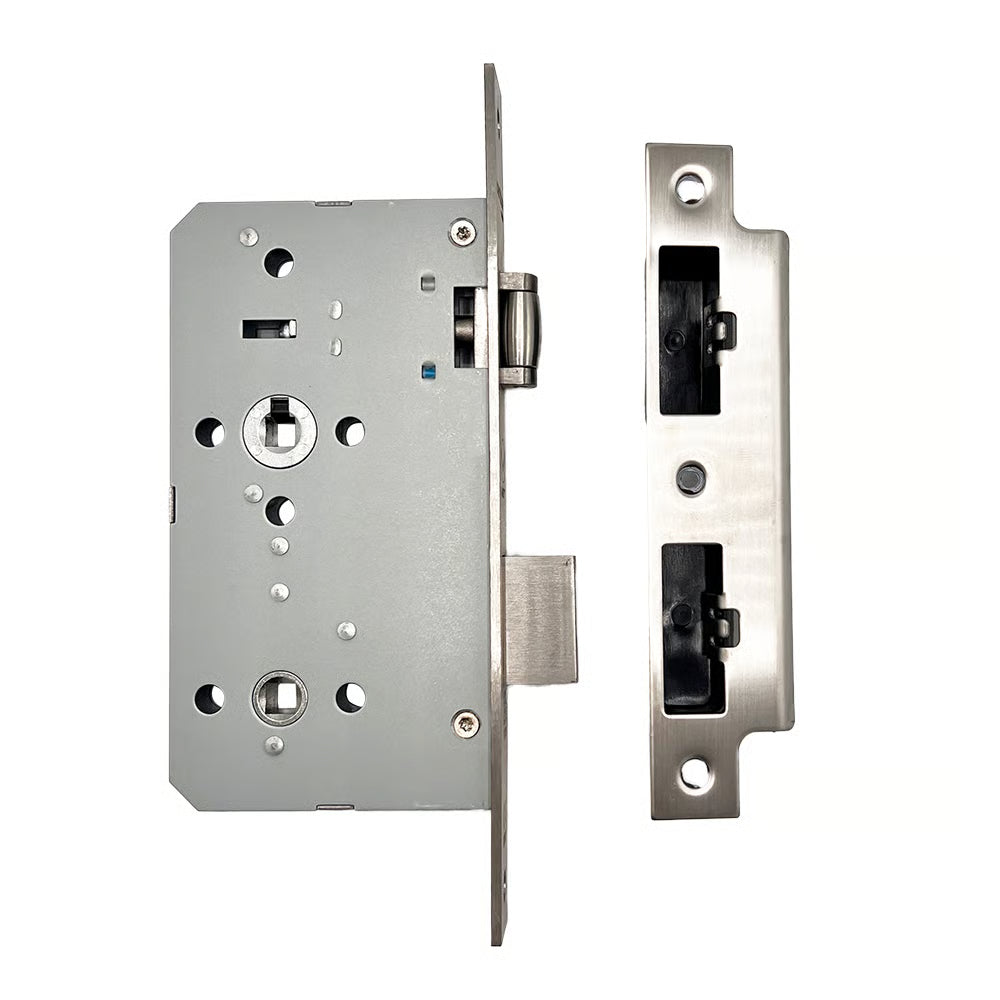

• Anti-rattle strike
• Grip tight follower
• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire-rated doors supplied separately (see below table for details)

Certification

• CE marked
• UKCA marked
• CERTIFIRE approved
• 12209 Grade 3
• CE2812
• CF850
• FD 120
• FD 240
• UKCA1121

Product Specification

• BS EN 12209 2003: Grade 3
• 90mm case size
• 60mm backset
• Grade 304 Stainless steel latchbolt & deadbolt
• Anti-rattle strike
• Grip tight follower
• 72mm c/c DIN footprint lock case (90mm)
• Faceplate 235mm x 22mm
