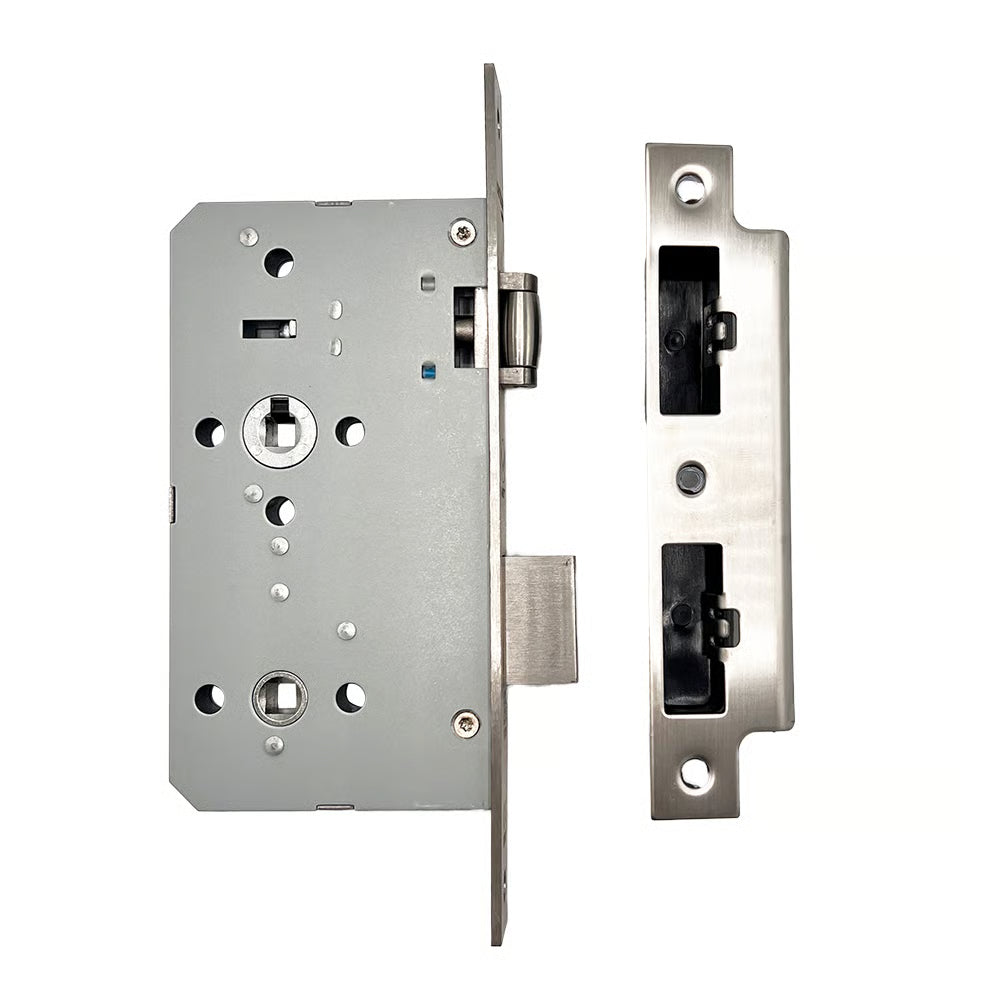

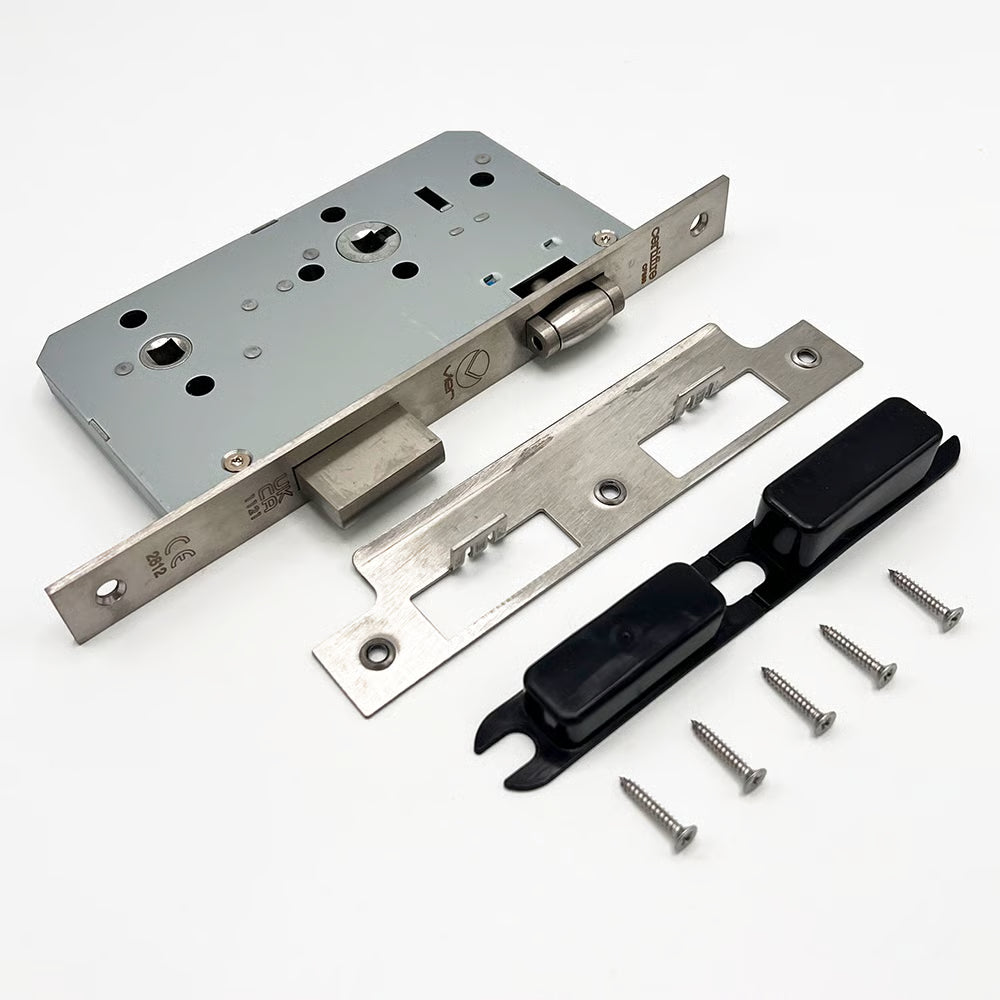

Bathroom Mortice Sashlock 60mm Lift to Lock

The Zoo DIN Moritce Bathroom Sashlock 60mm is an exceptional choice for ensuring privacy and security in commercial bathroom settings. Designed to meet stringent DIN standards, this lock guarantees compatibility and reliability across various door types.

This lock features a user-friendly lift-to-lock mechanism, allowing for easy operation. Simply lift the internal handle to secure the door, while the indicator bolt automatically signals whether the bathroom is occupied or vacant. The internal lever ensures quick egress, enhancing safety for users.

Product Features

• Backset: Available in 60mm only
• Forend: Stainless Steel single fixed, 22mm width, with options for square or radius ends
• Bolt Material: Stainless Steel roller latch bolt and dead bolt, both grade 304
• Compatibility: Designed for use with Lever on Round Rose handles and bathroom indicator sets
• Strike: Anti-rattle strike for added security
• Follower: Grip tight follower for smooth operation
• Intumescent Kit: Available in 0.8mm (30 min) and 1mm (60 min) for fire-rated doors (sold separately)

Performance Testing

• Standard: BS EN 12209 2003
• Classification: Grade 3 (3 C 8 1 0 G – B G 2 0)

Fire Testing

• Successfully tested to BS EN1634-1 standards
• Suitable for timber fire doors up to 120 minutes and steel fire doors up to 240 minutes

Certification

• CE marked
• UKCA marked
• CERTIFIRE approved
• 12209 Grade 3
• CE2812
• CF850
• FD 120
• FD 240
• UKCA1121

Product Specification

• Case Size: 90mm
• Backset: 60mm
• Material: Grade 304 Stainless steel for both latchbolt and deadbolt
• Strike: Anti-rattle
• Follower: Grip tight
• Lock Case Footprint: 72mm c/c DIN
• Faceplate Dimensions: 235mm x 22mm
