AXIM Universal Bottom Pivot Assembly 8800 Series

The Axim Universal Bottom Pivot Assembly is designed for versatility and durability, making it an ideal choice for various applications.

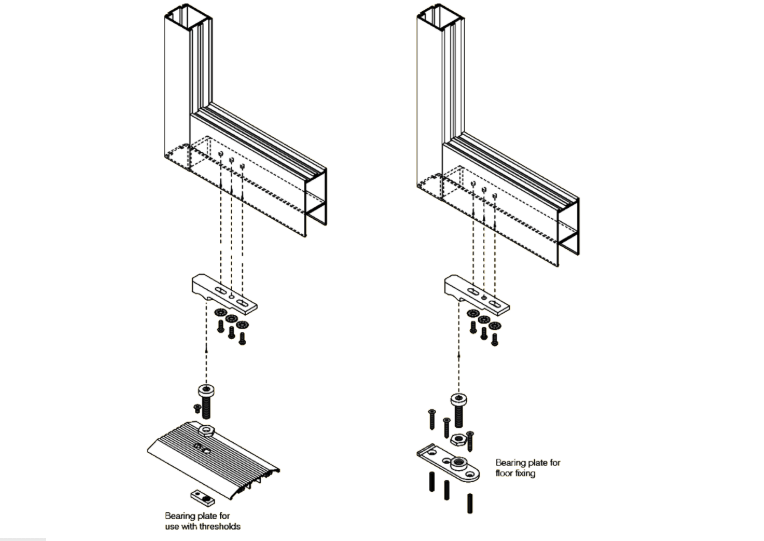

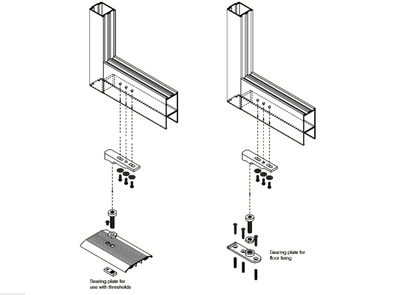

Its robust construction allows for easy customization, as it can be cut down to the desired size along the convenient 5mm groove line. This ensures a perfect fit for your specific needs, whether you're working with a floor or threshold installation.

Finish
Satin Anodised Aluminium

Features

• Threshold and tie bar secure threaded backplate
• 1 full turn equals 2mm adjustment
• Maximum load capacity of 100g

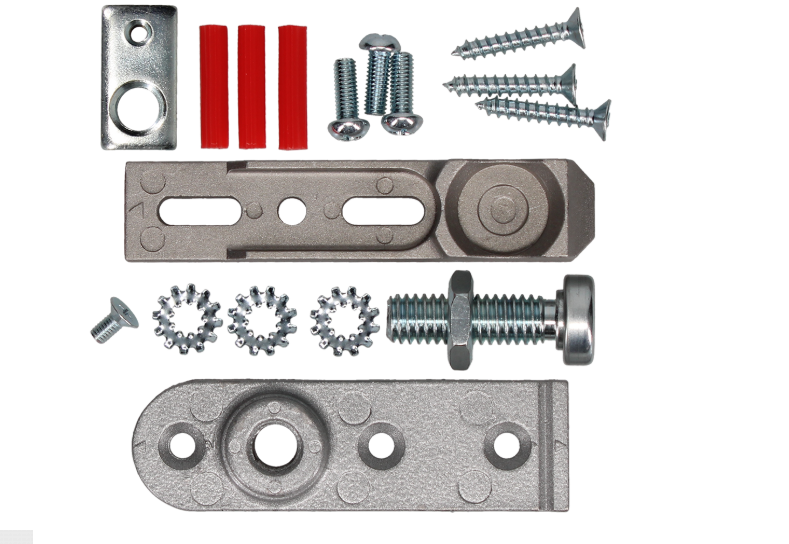

• Supplied complete with components for both floor and threshold fixing
• Fully height adjustable from 31.5mm to 58.5mm

This assembly not only provides strength and stability but also offers the flexibility to adapt to different installation requirements, ensuring a reliable solution for your projects.
