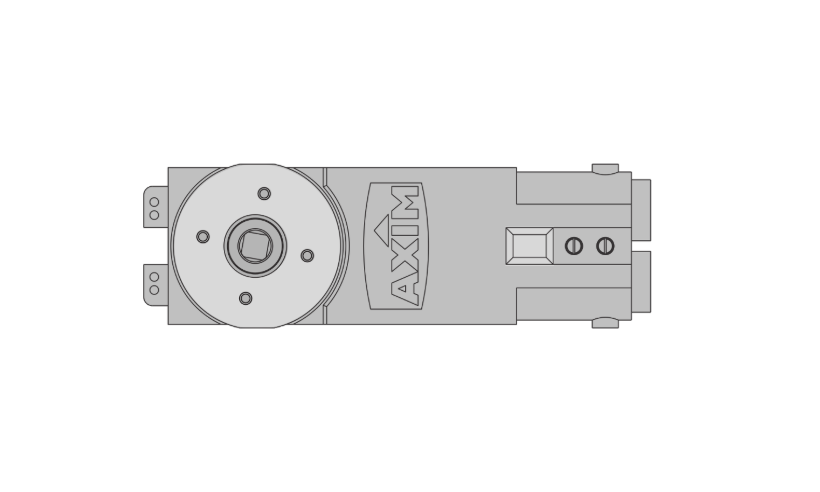

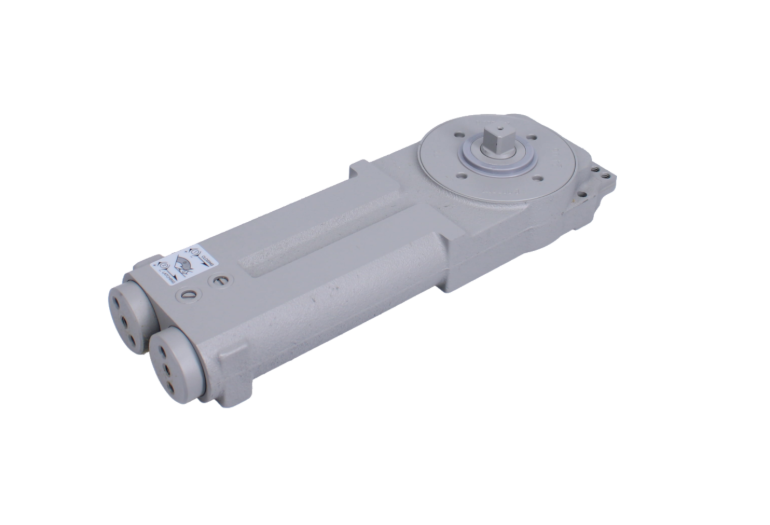

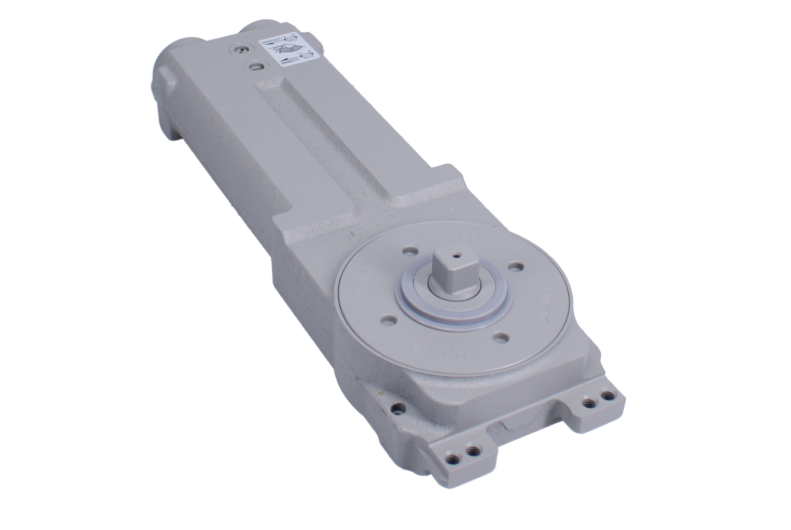

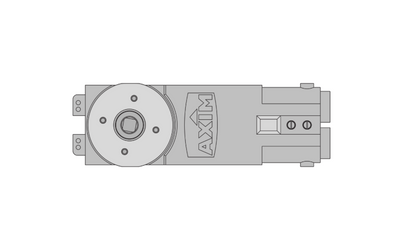

AXIM TC-9903 Concealed Transom Closer Body Only Size 3

Introducing the Axim Transom Door Closer Size 3 (body only), a robust and elegantly designed concealed door closer that seamlessly integrates into your door system. Available in both non-hold open and hold open (90°) versions, this closer is perfect for various applications, ensuring functionality without compromising aesthetics.

This model is engineered for versatility, replacing the Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without the need for costly modifications to your door or frame. Each unit comes complete with all necessary fixings, including bearing plates, and detailed fitting instructions for a hassle-free installation.

• Key Features:

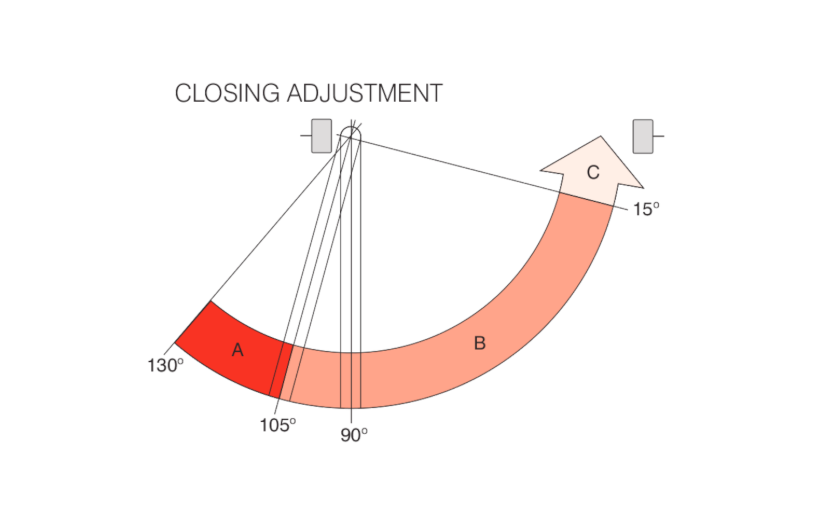

  • Adjustable Settings: Tailor the latching and sweep speed to suit your specific needs, ensuring smooth operation every time.
  • Captivated Screws: Designed to prevent accidental removal, enhancing the security and longevity of the installation.
  • Mechanical Backcheck: Provides added safety by controlling the door's opening speed, preventing damage to the door and surrounding structures.
  • Universal Fit: Suitable for doors ranging from 951mm to 1150mm wide and capable of supporting weights up to 100Kg.
• Specifications:
  • Finish: Satin Anodised Aluminium
  • Dimensions:
  • Length: 29.3cm
  • Height: 94mm
  • Width: 94mm
  • Depth: 94mm
  • Max Door Width: 951mm to 1150mm
  • Strength Size: 3
• Explore our associated products for a comprehensive range of accessories to complement your Axim Transom Door Closer. Upgrade your door system with this reliable and stylish solution today!
