Cobra Latch Deadbolt 2 Hooks Multipoint Door Lock - with Lockout Facility

Product Overview: Winkhaus Cobra Multipoint Door Lock

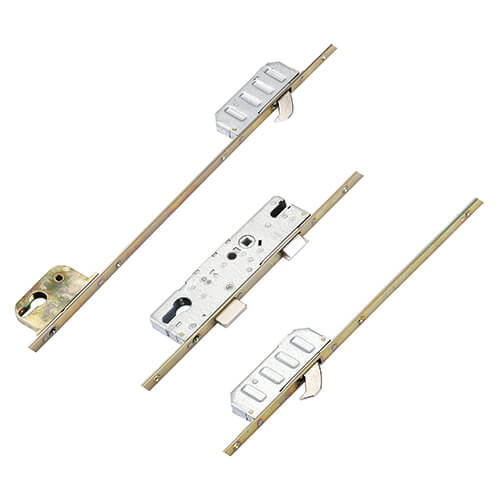

The Winkhaus Cobra multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch with a lockout facility. This innovative locking system ensures that your door remains secure while providing ease of use.

Key Features:

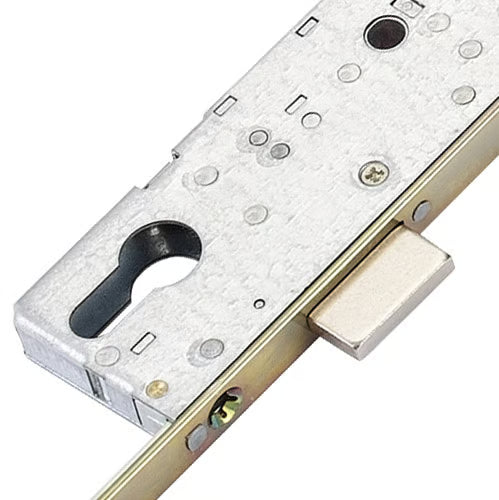

• Multipoint Locking Mechanism: The Cobra lock includes a central latch and deadbolt, complemented by 2 or more "Cobra" hook locking points, ensuring maximum security.
• Versatile Operation: Available in lift lever operation, split spindle, or key wind, the Cobra lock adapts to various user preferences.
• Identifiable Design: Look for the Winkhaus logo and the Secured by Design logo on the faceplate for easy identification. The central deadbolt and non-handed hooks are distinctive features of the Cobra model.
• Entryguard Function: This feature acts like a door chain, providing additional security. It can be released from the outside by turning the key an extra 45 degrees.

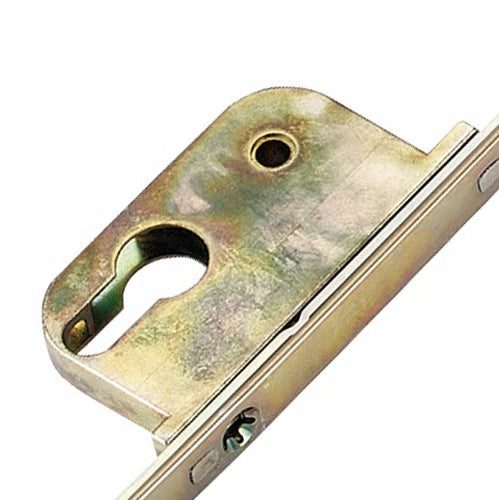

• FA Lockout Cylinder: This double function incorporates two locking cylinders, allowing for double deadlocking of the door when unoccupied, preventing unauthorized exit.

Specifications:

• Locking Distance: Cobra locks typically feature a locking distance of 1490mm between external hooks, a popular configuration in the market.
• Gearbox Dimensions: All Winkhaus gearboxes, except the AV4, measure 185mm high x backset + 15mm, making them among the smallest available. They also feature a groove above the spindle for easy handle fitment.

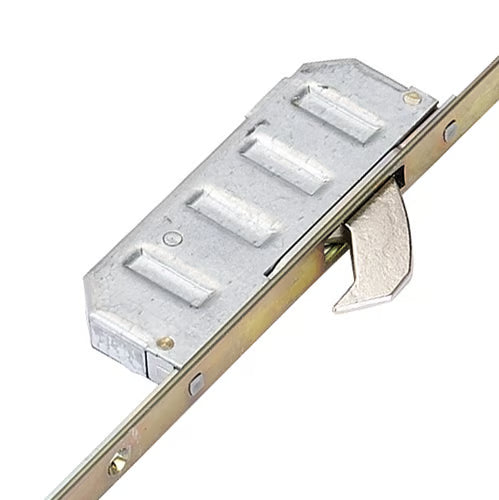

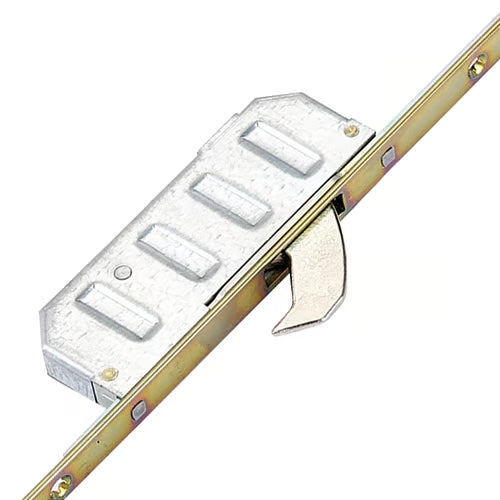

• Hook Design: The Cobra locks utilize 25mm throw solid steel hooks that are nickel plated, providing high security and preventing forced entry.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance: Winkhaus Cobra locks are tested to withstand 100,000 cycles, ensuring durability and reliability for your peace of mind.

For any upgrades or changes in locking operation, Winkhaus locks maintain consistent routing details, making it easy to adapt or enhance your security system.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Other Locking Points: Lockout

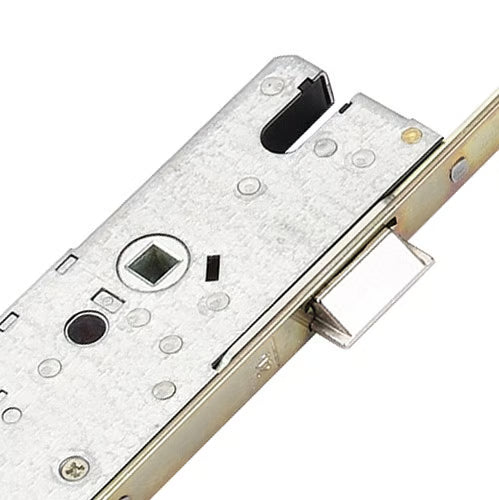

• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Lockout Backset: 55mm
• Distance Between Inner Locking: 1490mm
• Height: 1770mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

Measuring Guidelines:

To ensure accurate measurements for your Winkhaus Cobra multipoint door lock, follow these simple guidelines:

Backset Measurement:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly.

Centres PZ Measurement:
For the Centres PZ, measure from the center of the keyhole to the center of the handle hole. This measurement is essential for aligning the lock with the door handle.

Faceplate Measurement:
To measure the faceplate, measure the width and height of the area where the lock will be installed. This ensures that the faceplate fits snugly against the door surface.

By following these guidelines, you can ensure that your Winkhaus Cobra lock is installed correctly, providing optimal security and functionality.
