AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock

Product Overview

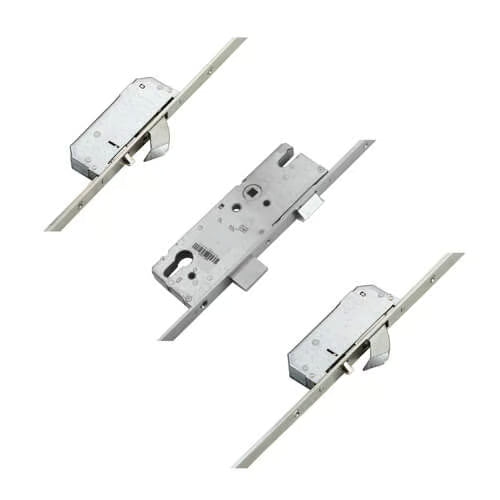

Introducing our innovative multipoint lock designed for seamless security and convenience. This lock features hooks that automatically engage as the door closes, eliminating the need to lift the handle. For added security, simply turn the key to deadlock the door after retracting the hooks from the inside.

Electronic Locking Solution

Transform your multipoint lock into an electronic locking system effortlessly. Attach the 12V DC Winkhaus AV2 motor (sold separately) and connect it using the Winkhaus AV2 cable to integrate with a variety of Winkhaus access control products.

Specifications

• Backset: 45mm or 55mm
• Centres: 92mm
• Operation: Automatic Locking
• Latch Reversal: Handed - Non Reversible (Refer to Handing Chart)

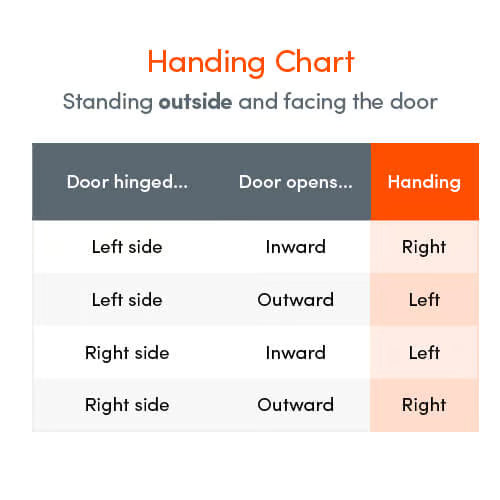

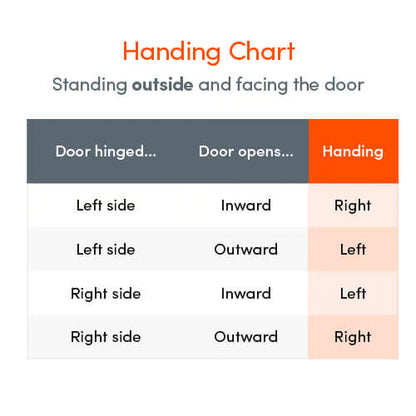

Handing Charts

Standing Outside, Looking at the Door

Standing Inside, Looking at the Door

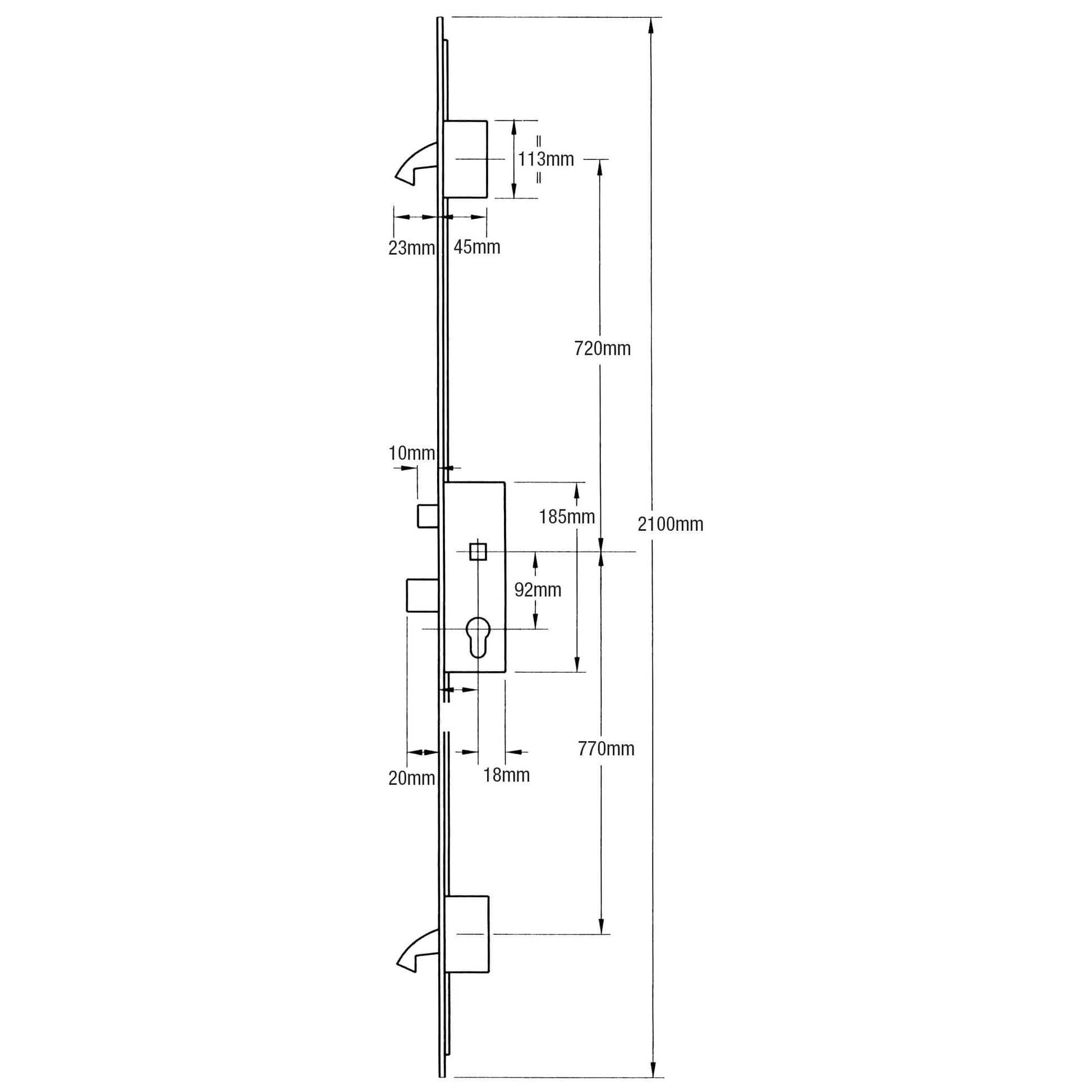

Product Specifications

• Operation: Automatic
• Latch Reversal: Yes
• Centres: 92mm
• Case Height: 185mm
• Case Depth: Backset + 18mm
• Overall Length: 2100mm
• Motor Power: 12V DC
• Distance Between Hooks: 1490mm

This multipoint lock combines advanced technology with user-friendly features, ensuring your security needs are met with ease and efficiency.
