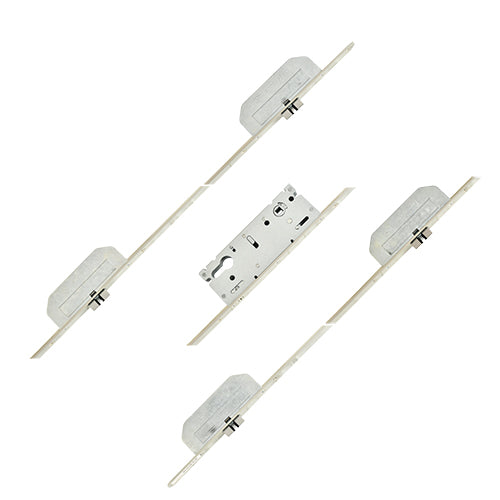

Autofire 4 Auto Locking Deadlatches Multipoint Door Lock

Product Overview: Ingenious Autofire Multipoint Door Lock

The Ingenious Autofire multipoint door lock is a cutting-edge security solution featuring four autolatches, designed to enhance the safety and convenience of your home.

Identification Tips

Identifying your Ingenious Autofire lock is simple. Look for the brand name stamped on the faceplate, which is often visible when the lock is still installed in the door. Some models may also display the Secured By Design logo. Typically, these locks are installed on timber or composite doors.

Key Features

• Automatic Operation: The lock features deadlatches with an actuator that automatically engages as the door closes, ensuring seamless locking without manual effort.
• Configuration Options: Available in a standard configuration with the main gearbox positioned at 833mm from the bottom of the strip, or as a Heritage version with the gearbox at 1183mm, mimicking the placement of traditional Yale night latches for a classic look.
• Unique Gearbox Design: The Ingenious Autofire central gearbox is distinct, lacking a latch, hook, or deadbolt, yet it retains a spindle hole and euro cut-out. The design features a single spindle and a non-cut-out corner.

Operation Instructions

• To Lock the Door:
  • Close the door to automatically engage the latch and locking points as the triggers connect with the keeps on the frame.
  • Turn the key to deadlock the mechanism for added security.
• To Unlock the Door:
  • Turn the key to unlock the mechanism.
  • If equipped with a lever, push it down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch, allowing you to open the door.

Additional Products

We offer a variety of associated products for the Ingenious Autofire multipoint door locks, including keeps, spindles, handles, and other accessories to enhance your locking system.

Product Specification

• Manufacturer: Ingenious
• Spindle Size: 8mm
• Autolatches: 4
• Main Gearbox: Nothing
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 500mm
• Distance Between Outer Locking: 1500mm
• Height: 1726mm
• Top Autolatch to Spindle: 702mm
• Bottom Autolatch to Spindle: 798mm
• Door Material: Timber, Composite

For any additional questions or clarifications regarding the specifications, feel free to reach out to our support team. We're here to help you ensure that your Ingenious Autofire multipoint door lock meets your needs perfectly!
