AutoEngage Latch Deadbolt 2 Autolatches Multipoint Door Lock

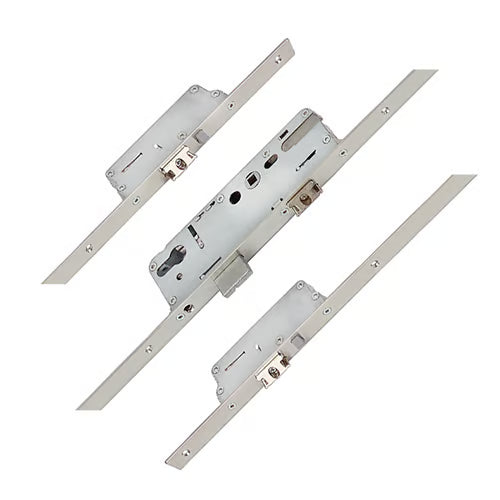

Lockmaster AutoEngage Multipoint Door Lock

The Lockmaster AutoEngage multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration that includes 1 deadbolt, 1 latch, and 2 autolatches. This innovative locking system is ideal for both timber and composite doors, providing peace of mind with its automatic locking mechanism.

Key Features:

• Automatic Locking: The unique "slam shut" design allows for automatic engagement of the locking points when the door is closed, eliminating the need to lift the handle.
• Enhanced Security: With two security latches that engage up to 20mm into the keeps, this lock ensures a secure fit. The door can also be deadlocked using a key or thumb turn for added protection.
• Distinctive Design: The Yale AutoEngage features deadlatch locking points that resemble standard latches, integrated into the main gearbox for a seamless look.
• Versatile Fit: Available in Classic and Heritage styles, the lock can accommodate various door designs, with the Classic version featuring a central gearbox and the Heritage version positioned at traditional heights.
• Compact Gearbox: Measuring only 201mm high, the AutoEngage gearbox is designed for easy installation and features a groove for bolt-through fixings.

Specifications:

• Manufacturer: Lockmaster
• Centres PZ: 92mm
• Faceplate Options: Selectable from drop-down menu
• Spindle Size: 8mm
• Deadbolts: 1
• Latch: 1
• Autolatches: 2
• Operation: Automatic locking
• Handing: Non-handed
• Dimensions:
  • Distance Between Inner Locking: 1488mm
  • Height: 1770mm
  • Top Autolatch to Spindle: 728mm
  • Bottom Autolatch to Spindle: 760mm
• Material Compatibility: Timber and Composite

Testing and Durability:

• Security Testing: PAS24:2016 compliant
• Corrosion Resistance: BS EN 1670:2007 Grade 4 for 240 hours
• Endurance Testing: Rated for 100,000 cycles

Accessories Available:

We offer a comprehensive range of associated products for the Lockmaster AutoEngage multipoint door locks, including keeps, spindles, handles, and other essential accessories to ensure a complete locking solution.
