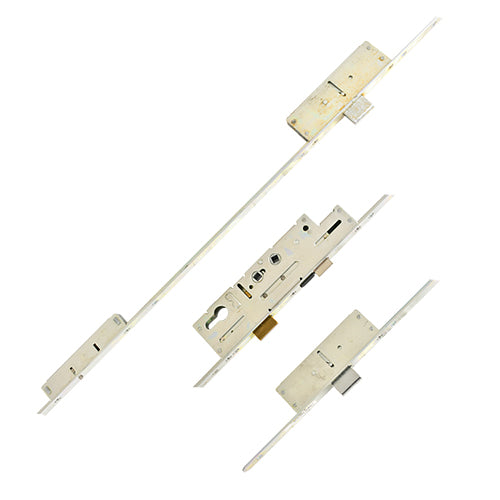

Auto Latch 3 Deadbolts Multipoint Door Lock

Product Overview: Fullex Auto Multipoint Door Lock

The Fullex Auto multipoint door lock is designed for enhanced security and ease of use, featuring 3 deadbolts and 1 latch. This innovative locking system is based on the renowned Crimebeater lock, ensuring reliability and durability.

Key Features:

• Automatic Locking Mechanism: The actuator unit, positioned between the center case and the top bolt, automatically engages the locking points when the door is closed. This ensures that the door is securely locked at the middle, top, and bottom, preventing warping and bowing over time.
• Versatile Design: Available in a 3 deadbolt variant with a robust 20mm steel faceplate, this lock can achieve FD30 and FD60 fire safety standards when paired with an intumescent kit, making it suitable for timber and composite doors.
• Easy Identification: Fullex Crimebeater locks can be easily identified by checking the gearbox. The top corner is cut off, featuring a latch and deadbolt, while the measurements of the external deadbolts and hookbolts provide further verification.
• Durable Construction: The external deadbolts are made from chrome plated A3 hardened cast steel, ensuring long-lasting performance and corrosion resistance (BS EN 1670 Grade 5).

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Performance Standards:

• Cycle tested to 200,000 operations, ensuring reliability.
• Meets Secured by Design standards and is compatible with PAS24 compliant door sets.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1400mm
• Height: 1720mm
• Top Deadbolt to Spindle: 686mm
• Bottom Deadbolt to Spindle: 714mm
• Door Material: Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Fullex Auto Multipoint Door Lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset.

Centres PZ Measurement:

1. Measure from the center of the keyhole to the center of the handle.
2. This will give you the PZ measurement.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to select the correct size from the drop-down based on your measurements.

By following these steps, you can ensure a perfect fit for your door lock installation.
