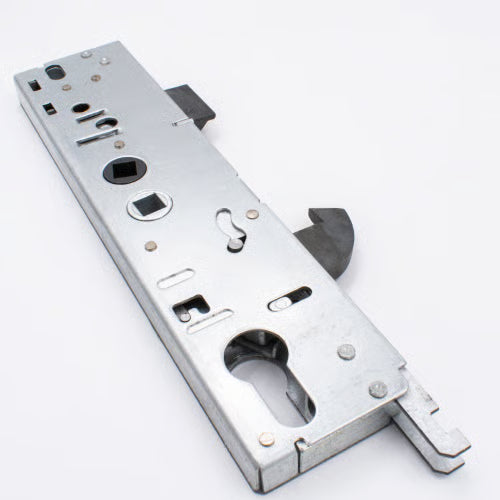

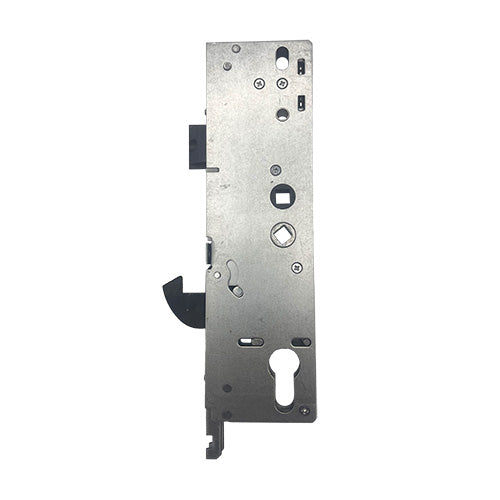

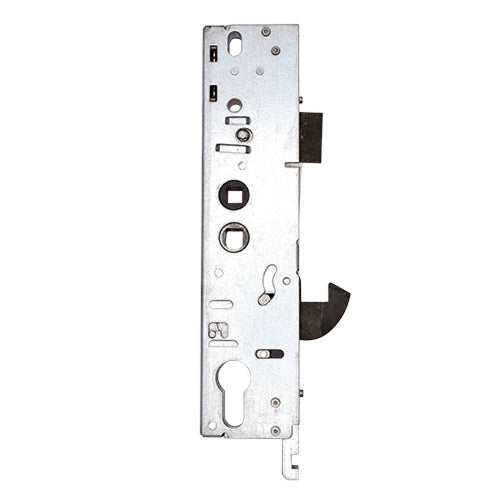

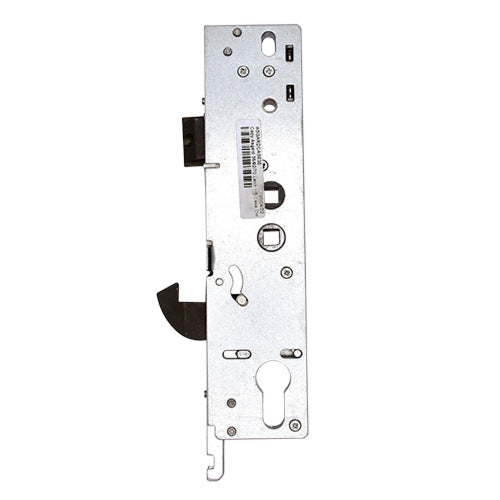

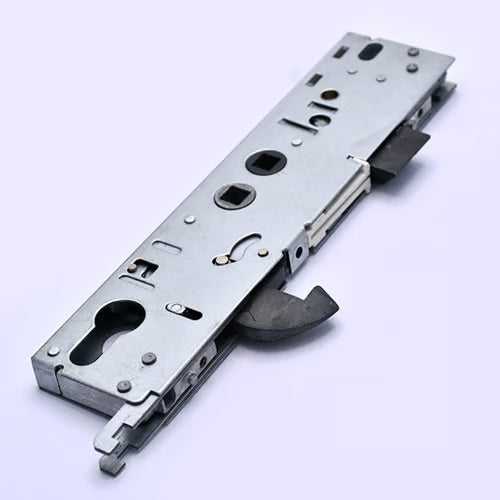

Upgrade your security with the Asgard replacement gearbox, compatible with Yale's renowned multipoint door locks. Available in both 35mm and 45mm backsets, this gearbox is designed for seamless integration with the older Yale Asgard models 7025, 7026, and 7035.
Key Features:
Direct Fit: Perfectly replaces the original Yale Asgard gearboxes without any modifications.
Durable Design: While the original versions included a white plastic insert for the latch, this updated model operates efficiently without it, as Yale has phased out this feature.

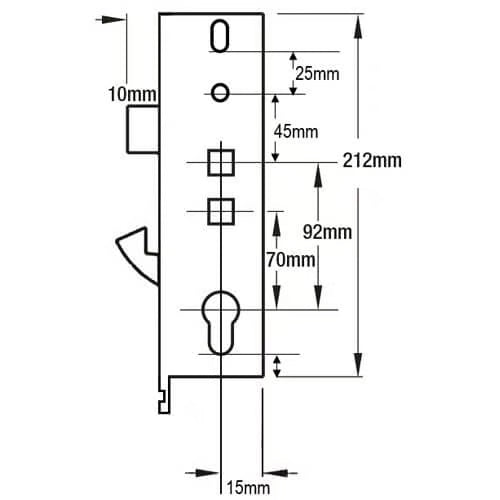

Dimensions: The Accado Style gearboxes measure 212mm in height, with a width of backset + 15mm. The hookbolt and latch both stand at 27mm high, ensuring a robust locking mechanism.
Easy Installation: Attaches securely to the faceplate with three screws, with precise measurements for easy alignment: the top screw is 90mm from the top to the middle, and 60mm to the bottom screw.
Operation: Designed for ease of use, simply lift the lever or use a double spindle for smooth operation.
Enhance your door's security with the reliable Asgard replacement gearbox today!
To ensure optimal performance and security, follow these guidelines for locking and unlocking your door with the Asgard replacement gearbox.
To Lock the Door
On closing the door, the latch is automatically engaged.
Lift the handle up to engage the additional locking points.
Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).
To Unlock the Door
Unlock the system by turning the key.
Push the handle downwards to disengage the locking points.
A further quarter turn of the key will retract the latch.
Product Specification
Manufacturer: Yale Copy
Backset: 35mm or 45mm - How do I measure the backset?
Centres PZ: 92mm/70mm - How do I measure the centres?
Case Height: 212mm
Case Width: 60mm
Copy/Genuine: Copy
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & hookbolt

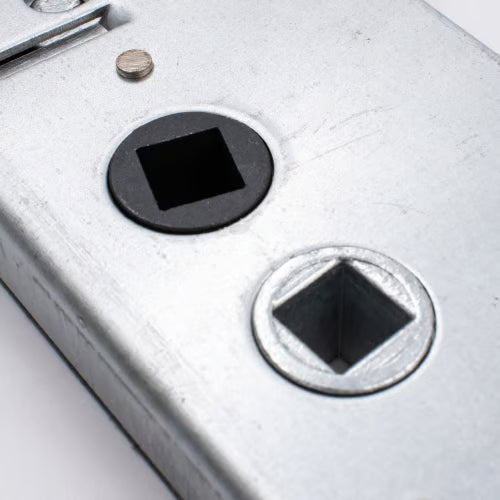

Spindle: Double 8mm
Operation: Lift Lever or Double Spindle Nightlatch - What is the operation?
Packaging: Supplied in singles
By following these instructions, you can ensure that your door remains secure and functions smoothly with the Asgard replacement gearbox.
