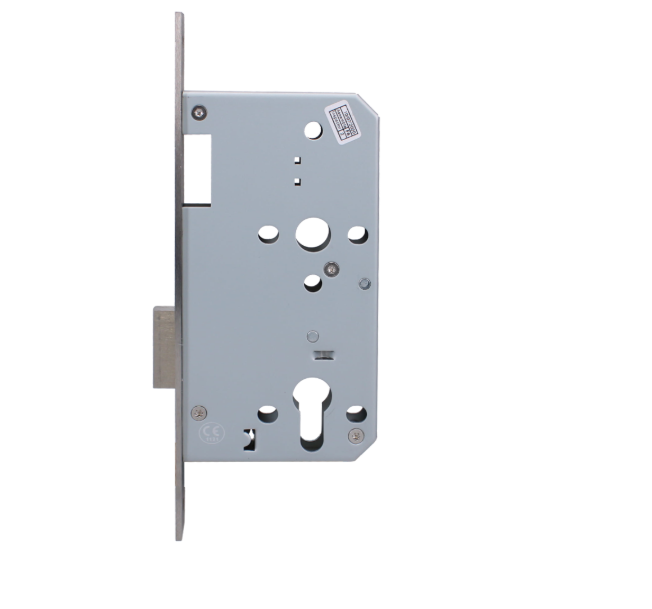

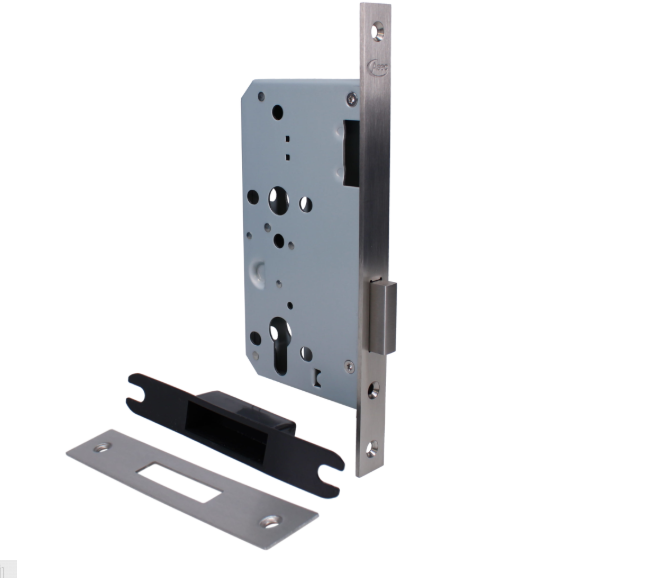

ASEC DIN Standard Fire Rated Mortice Euro Deadcase

The ASEC DIN Euro Deadcase is a robust and versatile locking solution designed for European standards. Its modular design simplifies door preparation and allows for easy lock interchangeability, making it an ideal choice for various applications.

With a sleek silver powder coating, this lockcase not only enhances aesthetic appeal but also offers exceptional corrosion resistance. It is CE marked and UK Conformity Assessed (UKCA), ensuring compliance with stringent safety standards. The lock has been rigorously tested to BS EN 12209:2003 / AC: 2005, confirming its reliability and performance.

This product is specifically engineered for use on fire and smoke-resistant door assemblies when paired with the appropriate intumescent pack, providing an added layer of safety in critical environments.

Features

• Fire tested and must be installed according to the manufacturer’s instructions, along with all relevant associated products.
• Compatible with unsprung bolt-through lever furniture.
• Constructed from zinc-coated steel for durability.
• CE marked, UK Conformity Assessed (UKCA), and conforms to EN 12209 standards.
• Designed to DIN standard specifications.
• Forend made from Grade 304 stainless steel with a satin finish for a modern look.

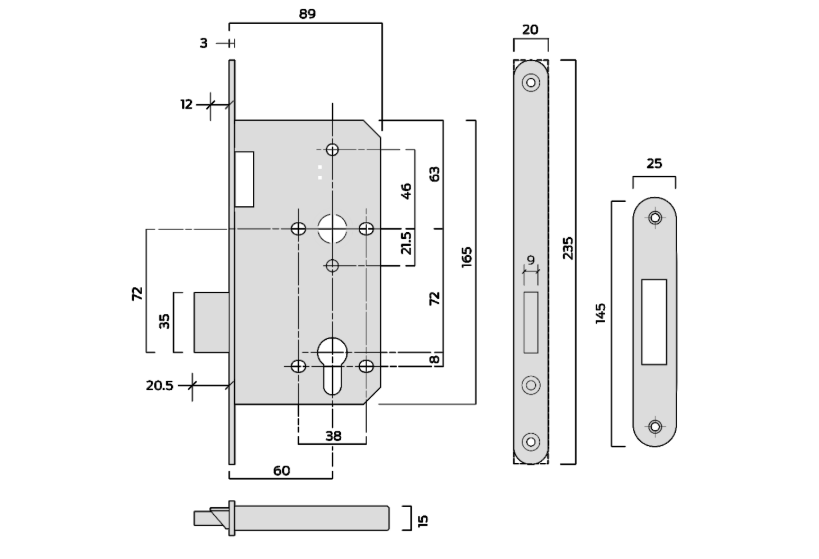

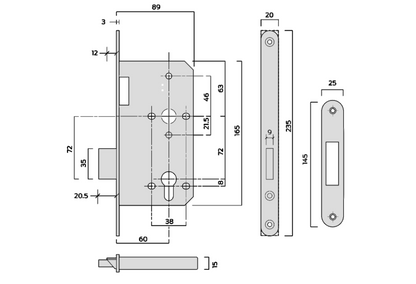

Size Specifications

• Backset: 60mm
• Bolt Throw: 20mm
• Case Depth: 93mm
• Case Height: 165mm
• Case Width: 15mm
• Forend Length: 235mm
• Forend Width: 20mm

This lockcase is an excellent choice for those seeking a reliable, compliant, and aesthetically pleasing locking solution for their doors.
