ASEC DIN Standard Fire Rated Mortice Bathroom Lock

The ASEC DIN Bathroom Lock is a robust and versatile solution for your door security needs. Designed with a European contract modular system, it simplifies door preparation and allows for easy lock interchangeability. Its silver powder coating not only enhances its aesthetic appeal but also provides exceptional corrosion resistance, ensuring longevity and durability.

This lock is CE marked and UK Conformity Assessed (UKCA), meeting stringent safety standards. It has undergone rigorous testing to BS EN 12209:2003 / AC: 2005, making it suitable for installation on fire and smoke-resistant door assemblies when paired with the correct intumescent pack.

• Features
• Fire Tested: Must be installed according to the manufacturer’s instructions and with all relevant associated products.
• Compatibility: Suitable for unsprung bolt-through lever furniture.
• Durable Construction: Zinc-coated steel case for enhanced strength and reliability.
• Fire/Smoke Resistance: Specifically designed for use on fire/smoke resistant door assemblies.
• Compliance: CE marked, UK Conformity Assessed (UKCA), and conforms to EN 12209 standards.
• DIN Standard: Features a DIN standard lock case for universal compatibility.

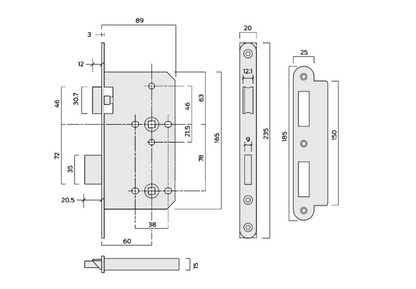

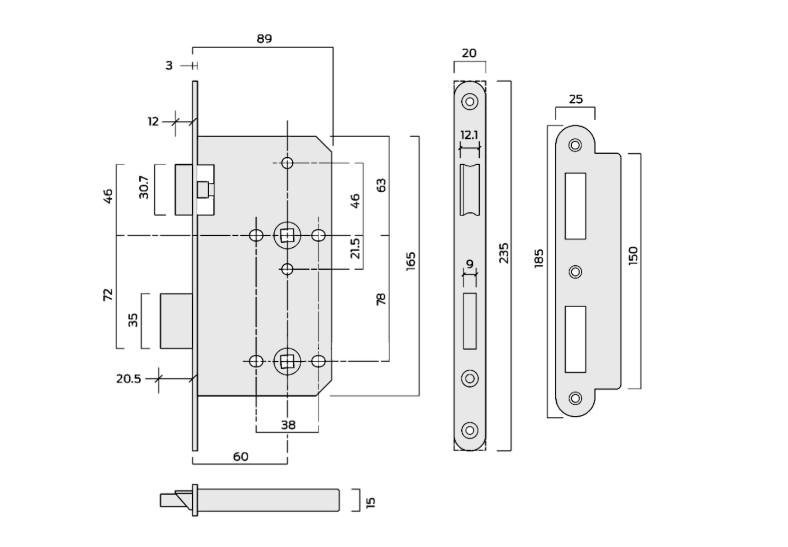

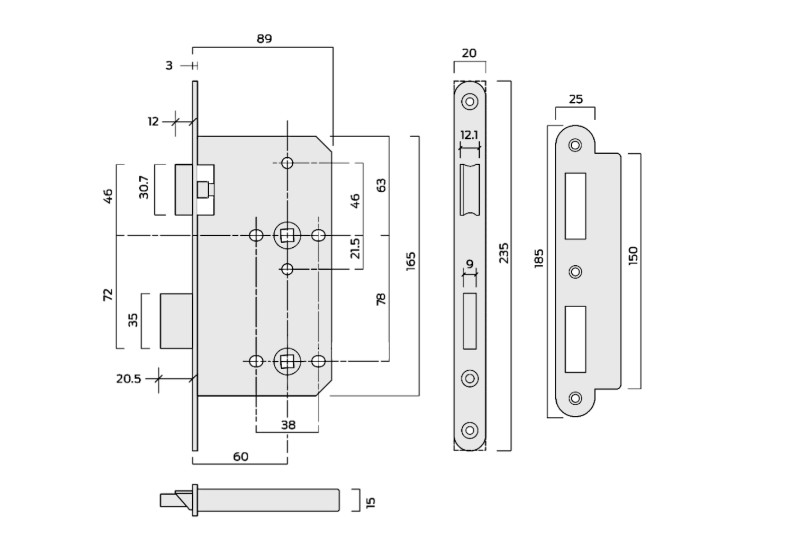

• Specifications
• Backset: 60mm
• Centres: 78mm
• Bolt Throw: 10mm
• Case Depth: 93mm
• Case Height: 165mm
• Case Width: 15mm
• Forend Length: 235mm
• Forend Width: 20mm
• This lock is an excellent choice for ensuring safety and compliance in various settings, making it a reliable option for both residential and commercial applications.
