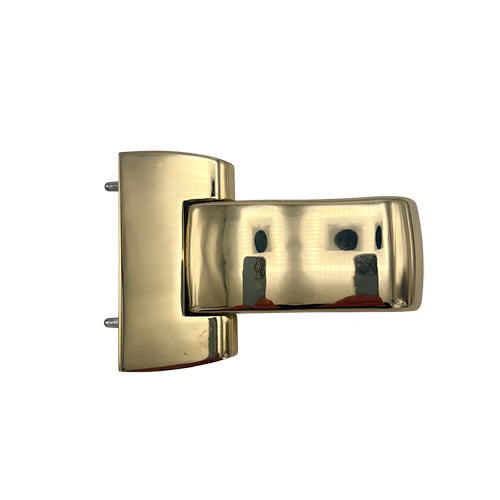

Anchorage Heavy Duty 3D Flag Hinge for UPVC Doors

The Fab and Fix Anchorage Heavy Duty 3D Flag Hinge for UPVC Doors is engineered for versatility and durability, making it an ideal choice for various UPVC door profiles. With its innovative multi-adjustable design, this hinge ensures precise alignment and functionality, accommodating both inward and outward opening configurations.

Key Features

• Multi-Axis Adjustment:
  • Horizontal: Up to 12mm
  • Vertical: Up to 4mm
  • Compression: Up to 1.5mm
• Versatile Compatibility: Suitable for both inward and outward opening UPVC doors.
• Enhanced Security: Anti-lift feature included as standard.
• Customizable Options:
  • Profile Step Heights: 14mm, 17mm, 21mm
  • Colour Choices: White, Gold
• Height Dimension: 21mm for the specified Profile Step Height.

Fitment & Considerations

When choosing the Fab and Fix Anchorage Heavy Duty 3D Flag Hinge, it’s crucial to:

• Verify the required Profile Step Height for your door profile to ensure proper alignment.
• Confirm the handing of the door (left-hand or right-hand) to match the hinge orientation.
• Check the door opening direction (inward or outward) for compatibility with the hinge’s reversible operation.
• Ensure hinge dimensions align with the door frame and sash for optimal fit and performance.

Common Ordering Mistakes

To avoid issues when ordering, be mindful of the following:

• Selecting the incorrect Profile Step Height, which can lead to misalignment with the door frame.
• Choosing a Colour option that does not match existing door hardware or finish.
• Overlooking door handing or opening direction, which can affect hinge operation.
• Neglecting to confirm compatibility with specific UPVC door profiles.

Product Specifications

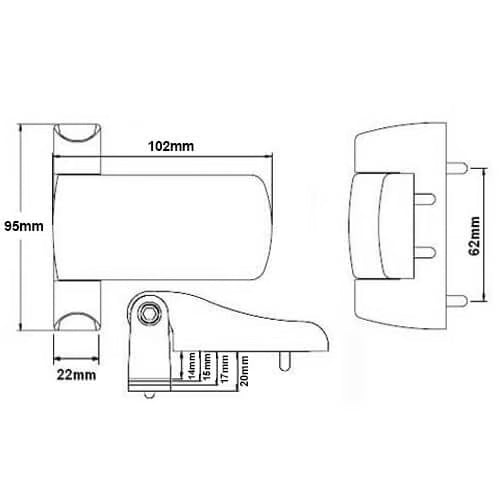

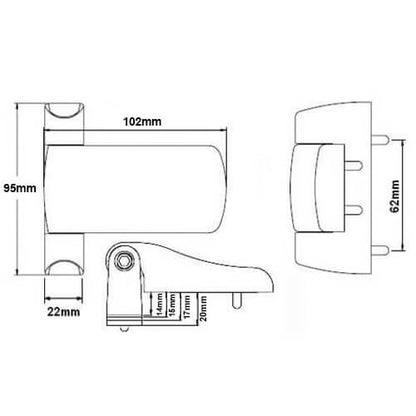

• Size: 95mm height x 107mm flag width
• Distance Between Pins: 62mm
• Rebate: 14mm-21mm
• Sash Weight Capacity: 30kg per hinge
• Colour Options: Select from drop-down menu
• Profile Step Height: Select from drop-down menu

This hinge is designed to provide reliable performance and security for your UPVC doors, ensuring a seamless fit and operation.
