The transom overhead door closer is an innovative solution designed to be seamlessly integrated within the transom header bar of your door. This mechanism ensures a smooth and controlled closing action for both single and double action aluminium doors, enhancing functionality and aesthetics.
Features
Supplied complete with a fixing pack for easy installation
Ideal for use in automatic opening applications, providing convenience and efficiency
Functions as a bottom pivot, ensuring stability and support

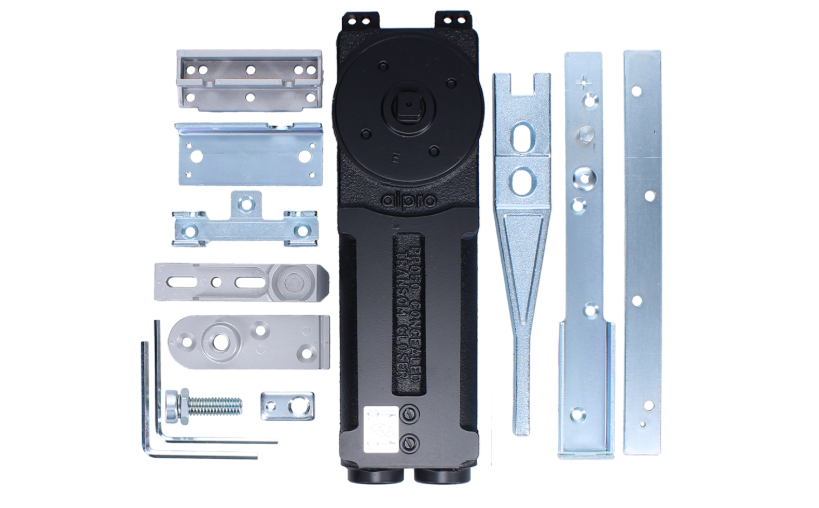

Comes complete with arm and pivot for a comprehensive setup
Specifications
Size:
Length: 29.3 cm
Height: 37 mm
Width: 90 mm
Depth: 37 mm
Max Door Weight: 100 Kg
Strength Size: N/A
General Information
Application: Transom
Notes: 37 mm concealed depth for a discreet installation
Pack Quantity: 1
Other Details
Weight: 4.45 Kg
Side Load: Designed to accommodate side loads effectively
This transom overhead door closer combines functionality with a sleek design, making it an excellent choice for modern architectural needs.
