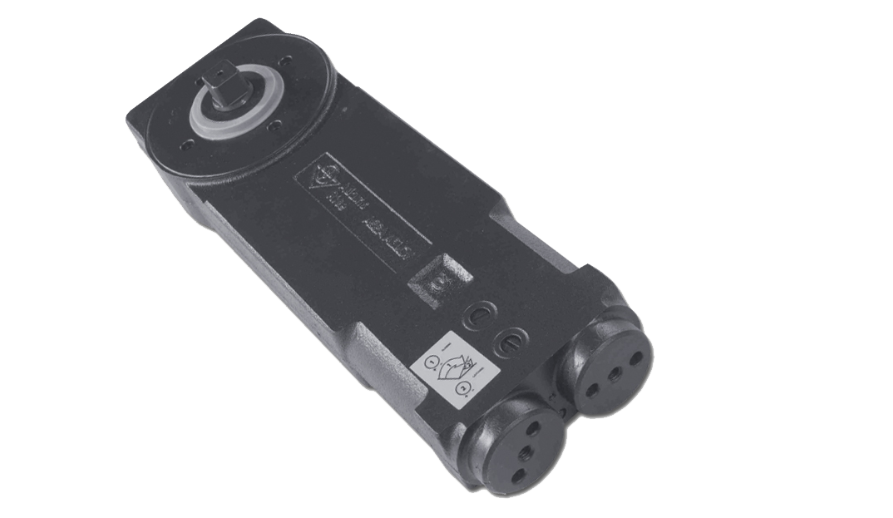

ADAMS RITE DC51-V Variable Spring Transom Closer

This variable spring transom closer is designed for use on aluminium doors and has the same footprint as the Adams Rite ARC-51N. It can be adjusted to suit each opening, ensuring the door closes correctly while keeping the opening force down to a minimum.

• Finish
  Black

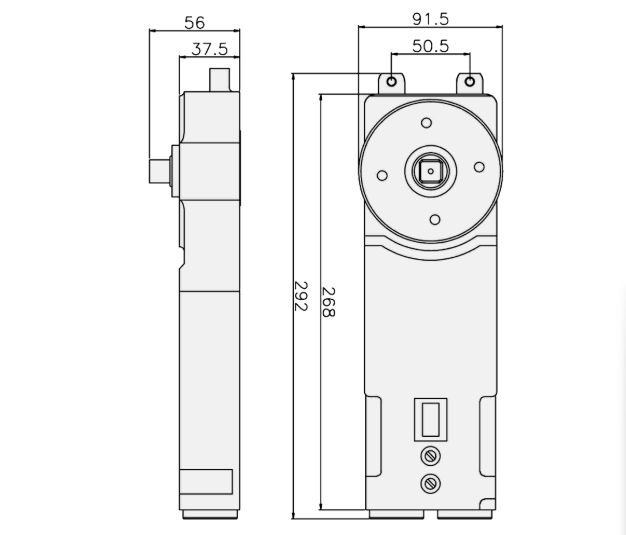

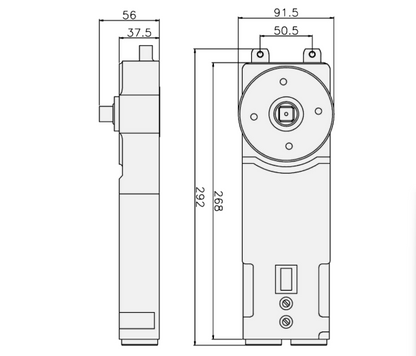

• Size
  Length: 26.8 cm
  Height: 38 mm
  Width: 91.5 mm
  Depth: 38 mm
• Strength Size
  1 To 4
• Adjustable Latch Action
  Yes
• Hold Open
   NO/Yes (90°)
• General
  Handed: Reversible
  Boxed Quantity: 1
  Pack Quantity: 1

Features

• Tested to 500,000 cycles
• Only 37.5 mm thick, allowing installation in standard transom channels
• Adjustable closing and latching speeds
• Supplied as body only with modified L bracket and tag plate
• Not designed to aid compliance with the opening force requirements of ADM/BS8300
• Adjustable spring strength EN1-4 to levels in EN1154
