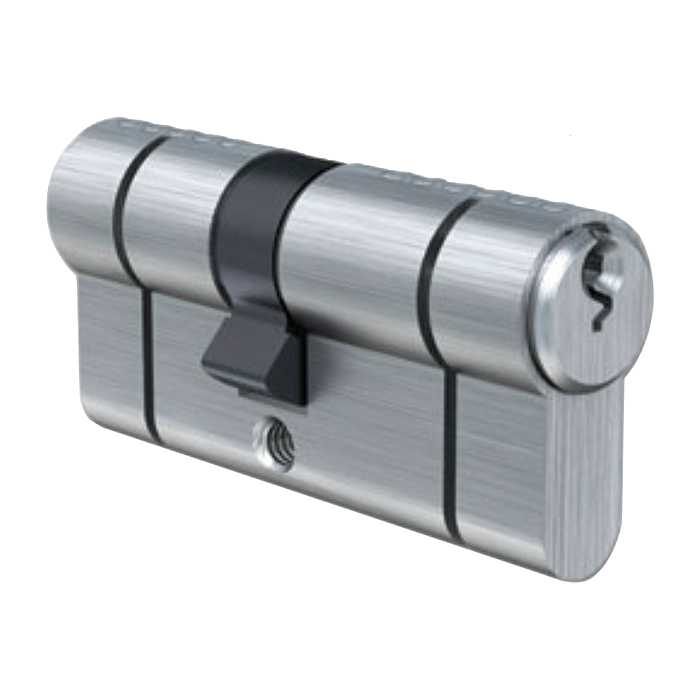

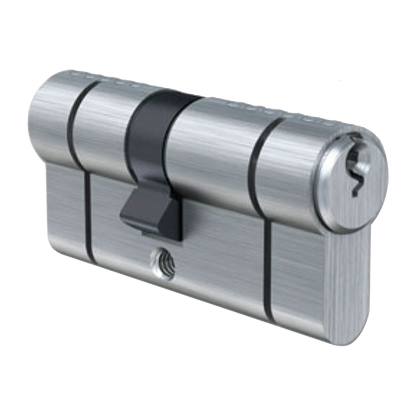

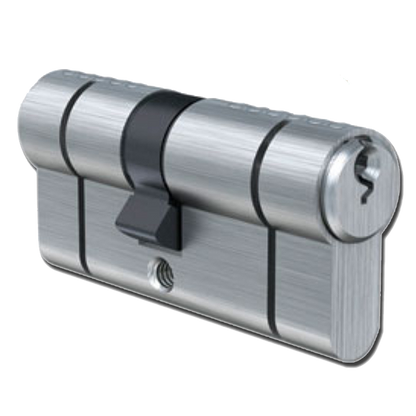

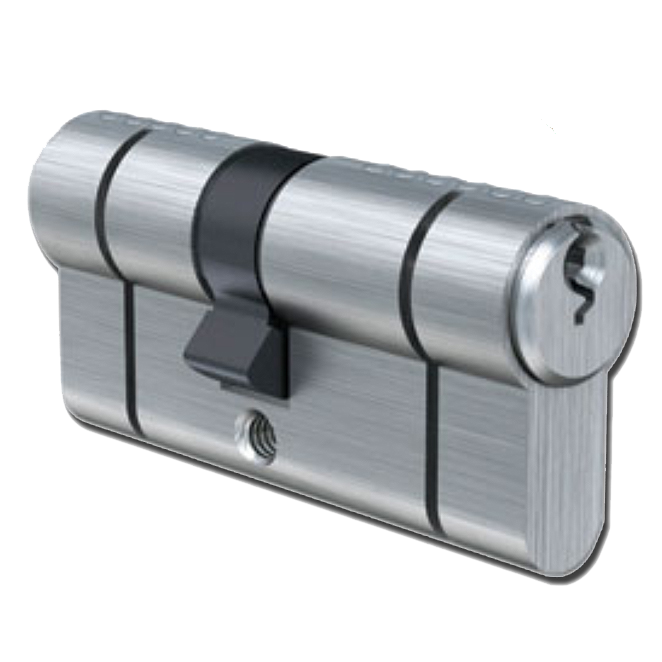

A5 Snap Resistant Euro Double Cylinder (PBP)

The EVVA DZ euro double cylinder is a versatile and secure locking solution, designed to meet various security needs. With its standard euro profile and keyed to differ feature, it ensures that each key operates uniquely, enhancing security for your property. This cylinder comes complete with a connecting screw, making installation straightforward.

The EVVA A5 system stands out as a robust 5-pin locking mechanism, available in multiple cylinder styles and equipped with a range of optional special features to tailor security to your specific requirements.

Optional Special Features Available

BSZ - External Key Override
Operate the cylinder from the outside even if a key is inserted inside.
Z - Cog Wheel Cams
Ideal for multi-point locks or specialist mortice locks, available with 10, 13, 14, or 18 teeth.
CMK - Construction Keying
Allows cylinders installed during construction to be operated by a "CMK Master Key," which can be disabled upon project completion.
VAR - ABC Vario
Features a unique key system where using key B disables A keys, and using key C disables both A and B keys.
PBP - Pre Determined Break Point
Designed to snap at a specific point to prevent unauthorized entry, though not TS007 rated.
SSW - All Weather Cover
Spring-loaded shutter plates protect the cylinder from the elements, adding 5mm to the cylinder length.
FL1 - Free Wheel Function
Allows free wheel operation without forced decoupling when the key is inserted, suitable for motorized locks.
TXT - Additional Numbering
Offers specific or sequential numbering on keys for easy tracking and management.
SEW - Sea Water Protections
Special surface treatment for corrosion resistance in harsh environments, standard for Aldridge cylinders.
SG-A - Bump Resistant
Protects against bump key access with separated body pins.
FZG - Free Wheel Function
Certified free wheel function for motorized locks, factory supplied.
FLEX - Adapted Entry
Operate the cylinder from one or both sides using various key shapes, such as Square or Hexagon.
PA - Partner Cylinder
Requires an authorized key to be inserted on the opposite side for operation.
ZVS - Retracted Cylinder Body
Designed for special metal framed doors with integrated security roses.
ARS - Plug Pulling Protection
Features a special cam to safeguard against plug pulling attempts.
KZS - Plug Pulling Protection
Incorporates carbide components in the plug for enhanced protection.
