A2 Latch 3 Deadbolts Auto Locking Multipoint Door Lock (top deadbolt to spindle = 800mm)

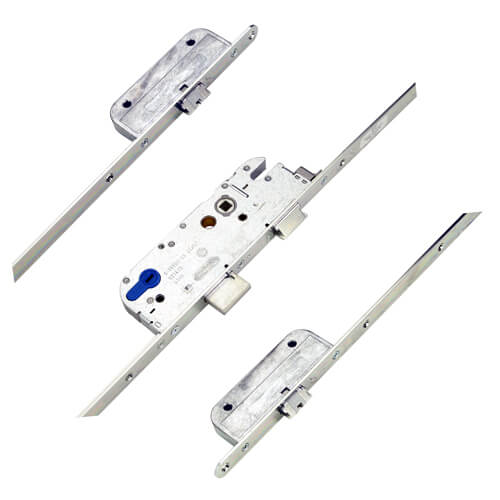

Product Overview: GU Secury Automatic Multipoint Door Lock

The GU Secury Automatic multipoint door lock is designed for enhanced security and convenience, featuring 3 deadbolts and 1 latch. This innovative locking system ensures that your door is securely locked with minimal effort.

Key Features:

• Automatic Locking Mechanism: As soon as the door is closed, the automatic latchbolts engage, throwing 20 mm to secure the door against forced entry. Simply pull the door shut, and it locks automatically.
• Ease of Access: The lock can be easily opened from the inside using the door handle, while the outside can be accessed with a key.
• Compatibility: The GU Secury locks can be upgraded to fully motorized systems with compatible motors and accessories. Check associated items for more details.
• Enhanced Stability: Unlike traditional multipoint locks, this system engages locking points at the middle, top, and bottom of the door when closed. This feature helps prevent warping or bowing over time, ensuring your door remains straight and true.

Operation Instructions:

• To Lock the Door:
  • Close the door to automatically engage the latch and locking points as the triggers connect with the keeps on the frame.
  • Turn the key to deadlock the mechanism for added security.
• To Unlock the Door:
  • Turn the key to unlock the mechanism.
  • If equipped with a lever, push it down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch, allowing you to open the door.

This GU Secury Automatic multipoint door lock combines security, convenience, and durability, making it an excellent choice for any entryway.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed

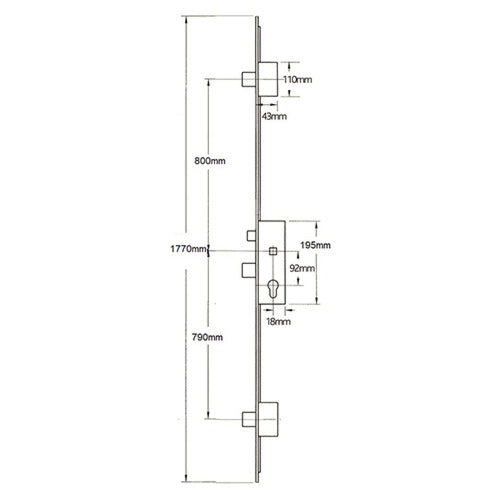

• Distance Between Inner Locking: 1590mm
• Height: 1770mm
• Top Deadbolt to Spindle: 800mm
• Bottom Deadbolt to Spindle: 790mm
• Door Material: UPVC, Aluminium, Timber, Composite

For precise measurements, follow these guidelines:

1. Backset: Measure from the edge of the door to the center of the keyhole.
2. Centres PZ: Measure from the center of the keyhole to the center of the handle hole.
3. Faceplate: Measure the width and length of the existing faceplate to ensure compatibility.
4. Operation: Choose the operation type that best suits your needs from the drop-down menu.

These specifications ensure that the GU Secury Automatic multipoint door lock fits perfectly and operates efficiently in your door setup.
