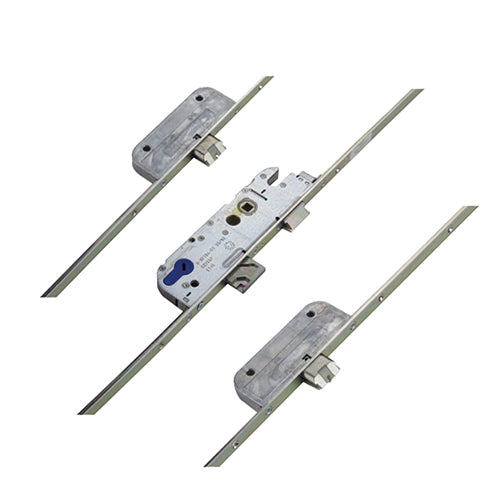

A2 Latch 3 Deadbolts Auto Locking Multipoint Door Lock (top deadbolt to spindle = 730mm)

Product Information

The GU Secury Automatic multipoint door lock is designed for enhanced security and convenience, featuring 3 Deadbolts and 1 Latch.

Compatibility and Features

GU Secury Automatic locks can be paired with various motors and accessories, allowing for conversion to fully motorized locks. For more information, please check the associated items.

Operation: Automatic Locking

• To Lock the Door:
  • Close the door to automatically engage the latch and locking points as the triggers connect with the keeps on the frame.
  • Turn the key to deadlock the mechanism for added security.
• To Unlock the Door:
  • Turn the key to unlock the mechanism.
  • If equipped with a lever, push it down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch, allowing you to open the door.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2285mm
• Top Deadbolt to Spindle: 730mm
• Bottom Deadbolt to Spindle: 790mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

To ensure a perfect fit for your GU Secury Automatic multipoint door lock, follow these measuring guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock aligns properly with the door frame.

Centres PZ Measurement : For the Centres PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This will help you select the correct lock that fits your door's specifications.

Faceplate Measurement: To measure the faceplate, you will need to measure the width and height of the area where the faceplate will be installed. Ensure to account for any existing cutouts or fittings in the door.

By following these guidelines, you can ensure that your door lock installation is seamless and secure.
