Information

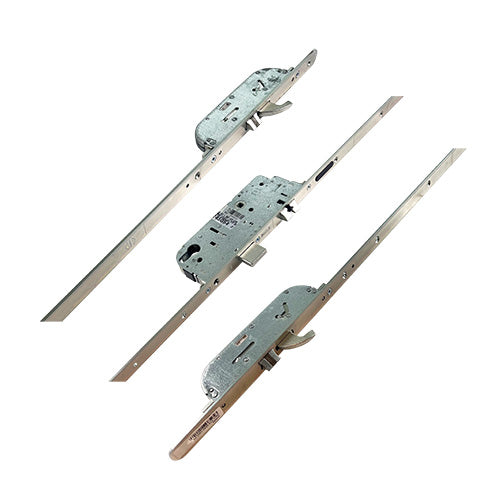

The Maco A-TS multipoint door lock is designed for enhanced security and convenience, featuring two hooks and automatic operation.

The A-TS Automatic Door Lock integrates advanced locking technology with versatile opening options. Once the door is pulled closed, it automatically secures in three locations: two hooks and a deadbolt. This innovative lock is unique in that it engages all locking points, including the deadbolt, simply by closing the door.

Upon closing, three latches are activated, ensuring immediate and consistent gasket compression across the entire door height. This design effectively seals out draughts and moisture. The center latch automatically engages the locking mechanism as soon as the door reaches the lock position, aided by a magnetic trigger that guarantees all latches operate flawlessly every time, without the need for a key.

Maco Protect A-TS gearboxes closely resemble their C-TS counterparts, with a similar shape but featuring a cut-out in the top corner. Measuring 202mm high, they are among the smaller gearboxes available. They also include a distinctive "soft" latch, which appears split in half. Note that Maco offers various latch variants, so this feature alone may not definitively identify the lock.

Both the latch and deadbolt measure 30mm high, with a spacing of 55mm between them. They are secured to the faceplate with three screws: the top screw to the center measures 102mm, while the center screw to the bottom screw measures 110mm.

To lock:

Simply close the door. As the latches strike the keeps, they will activate the top and bottom hooks, as well as the deadbolt.

To open:

Use a single key turn from the outside, a turn of the key or thumbturn from the inside, or a door handle from the inside.

We offer a range of associated products for Maco A-TS multipoint door locks, including keeps, spindles, handles, and accessories.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Hooks: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 1750mm
• Top Hook to Spindle: 740mm
• Bottom Hook to Spindle: 750mm

Measuring Guidelines

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring that the lock fits properly within the door frame.

Centres PZ Measurement: To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This ensures that both components align correctly for smooth operation.

Faceplate Measurement: To measure the faceplate, measure the width and height of the area where the lock will be installed. This will help you select the correct faceplate size from the drop-down options.

Operation: The operation of the lock can vary based on the specific model and installation. Ensure to select the appropriate option from the drop-down that corresponds to your lock's functionality.

These measurements and guidelines will help you ensure a proper fit and optimal performance of your Maco A-TS multipoint door lock.
